Aikon Stack 30x30 F405 60A BLHeli_S

Aikon Stack 30x30 F405 60A BLHeli_S

€49,95 EUR
€49,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

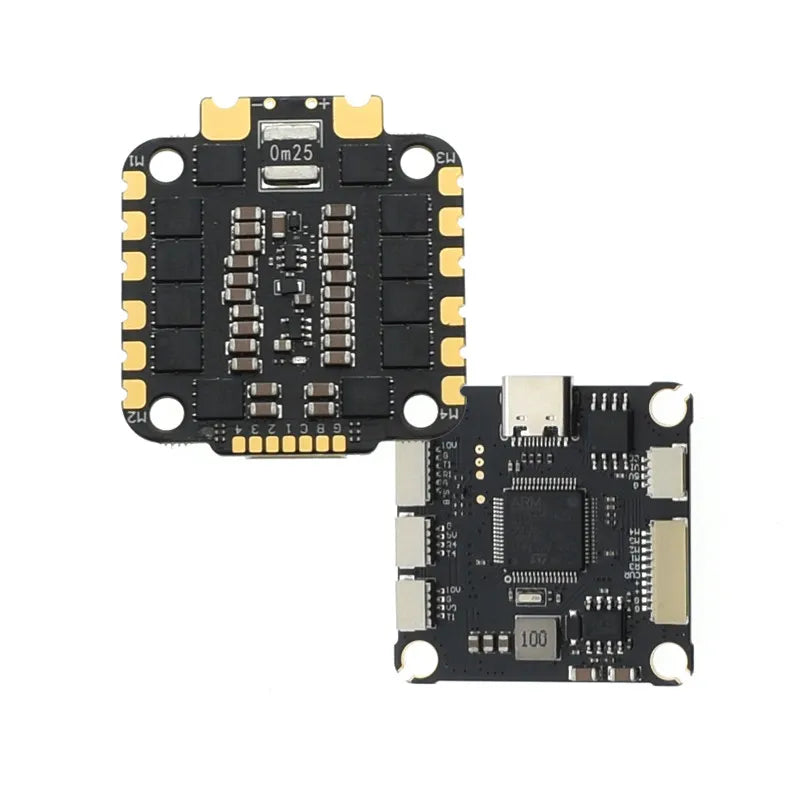

The Aikon F4 60A stack consists of an F405 flight controller and a 60A ESC.

This 30x30mm stack at an ultra-competitive price supports a voltage of 3-6S and the BLHeli_S firmware and notably features an ICM42688P gyro, an OSD and a 5V/3A 12V/2.5A BEC.

Quick reminder: upon receiving your item, please connect it via USB and calibrate the accelerometer before you start soldering.

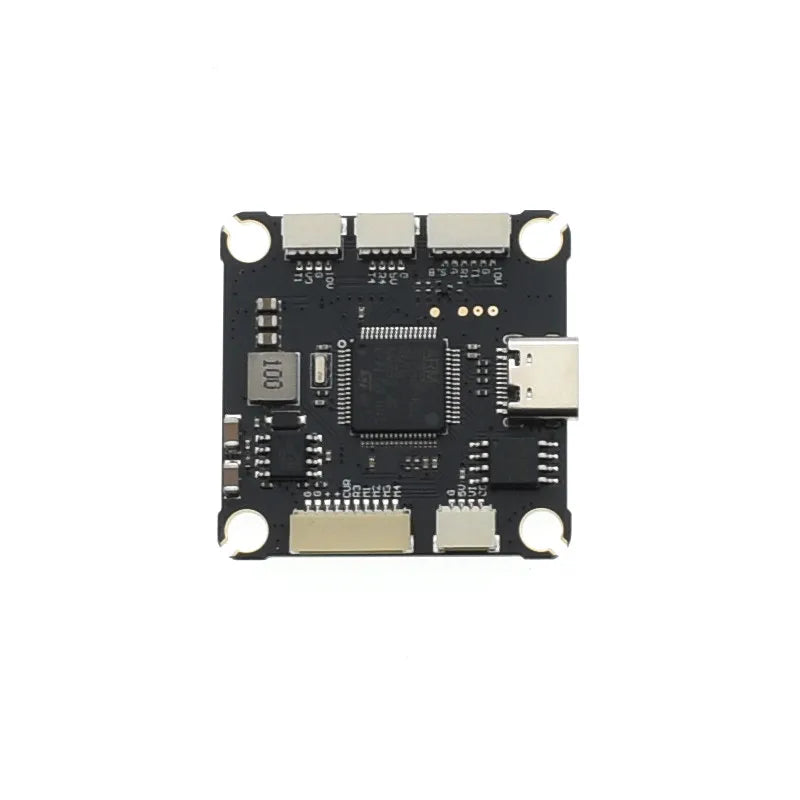

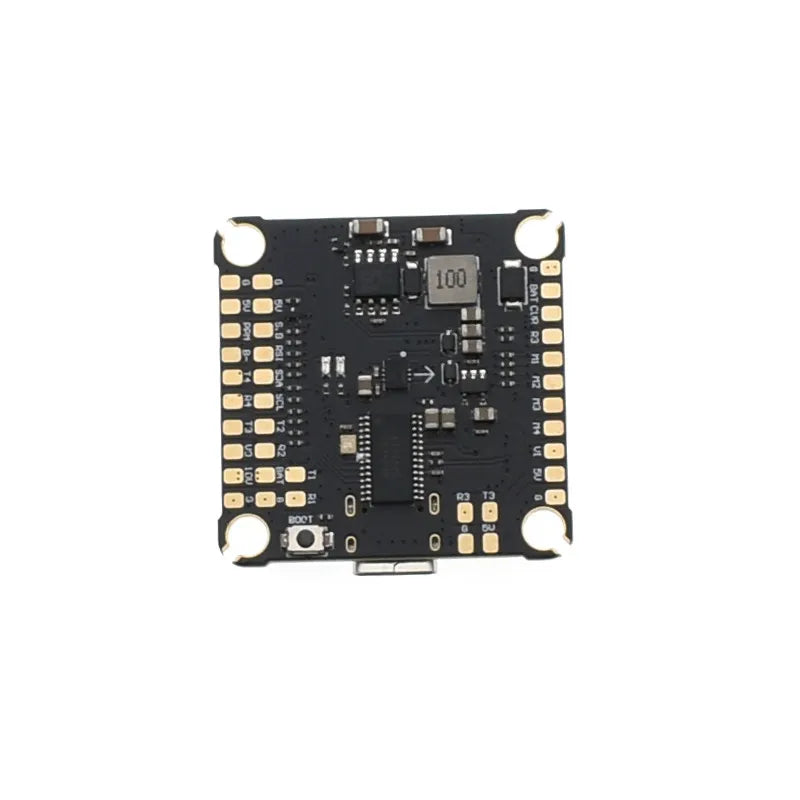

FC

  • MCU: STM32F405
  • Gyro: ICM42688p
  • Blackbox: 16 MB
  • OSD: BetaFlight OSD (AT7456E chip)
  • Barometer: No
  • USB port: Type-C
  • Connector for DJI air unit: YES
  • Power supply: 3S - 6S LiPo
  • BEC output: 5V/3A 12V/2.5A
  • UART: 5 sets
  • I2C: YES
  • LED panel: YES (for controlling WS2812 LEDs)
  • Buzzer panel: YES
  • Mounting: 30.5 x 30.5 mm (hole diameter: 4 mm)
  • Dimensions: 36mm (L) x 36mm (W) x 7mm (H)
  • Weight: 7 g

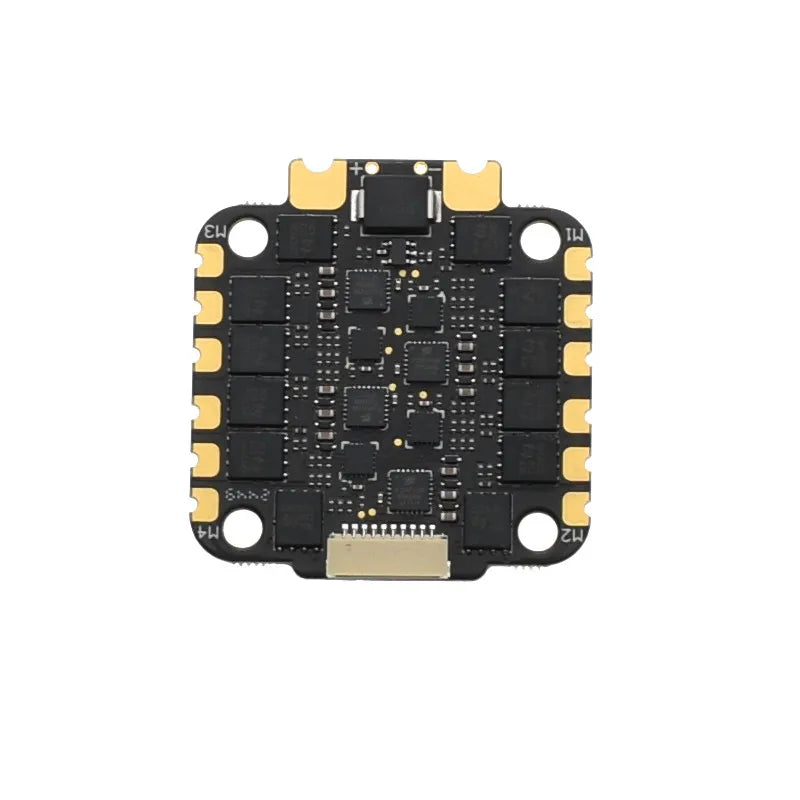

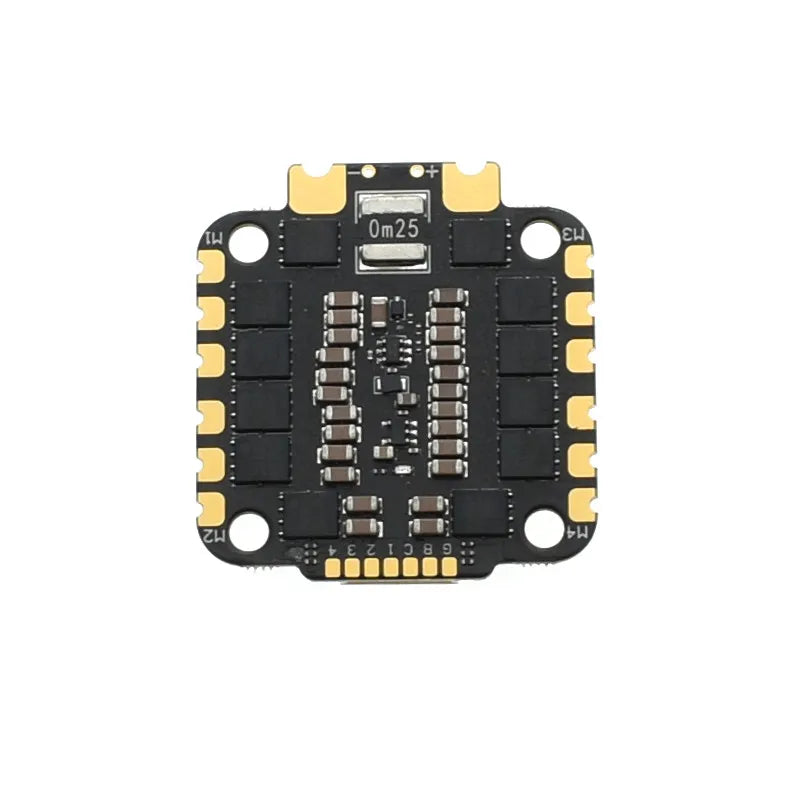

ESC

  • MCU: EFM8BB21F16G
  • Firmware: BLHeli_S
  • MOSFET: High performance MOSFET
  • Power supply: 3-6S LiPo
  • Direct current: 60A x 4
  • Peak current: 75A (10 seconds)
  • Telemetry: NO
  • Current sensor scale: 200
  • Protocol: DSHOT300/600
  • Firmware: C_H_40 24k
  • Mounting: 30.5 x 30.5 mm (hole diameter: 4 mm)
  • Dimensions: 44.5 (L) x 41.5 (W) x 6.3 mm (H)
  • Weight: 13.5 g

Included

  • 1x F405 Flight Controller
  • 1x ESC 60A
  • 1x XT60H Cable
  • 1x 35V 1000µF Capacitor
  • 1x Set of dampers
  • 1x 10-pin cable
  • 4x Screws
View full details

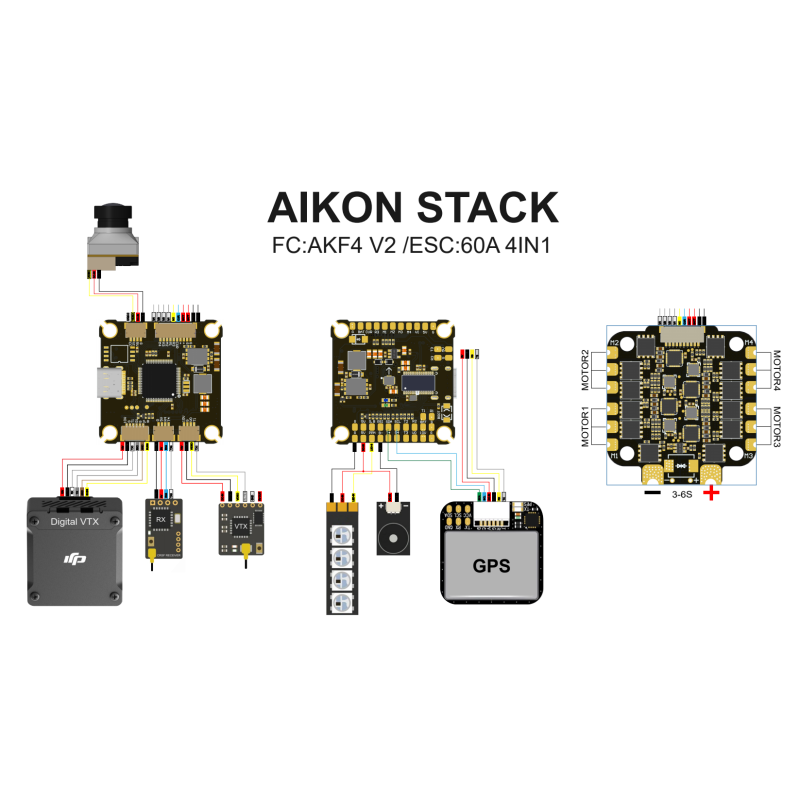

Extra product image
