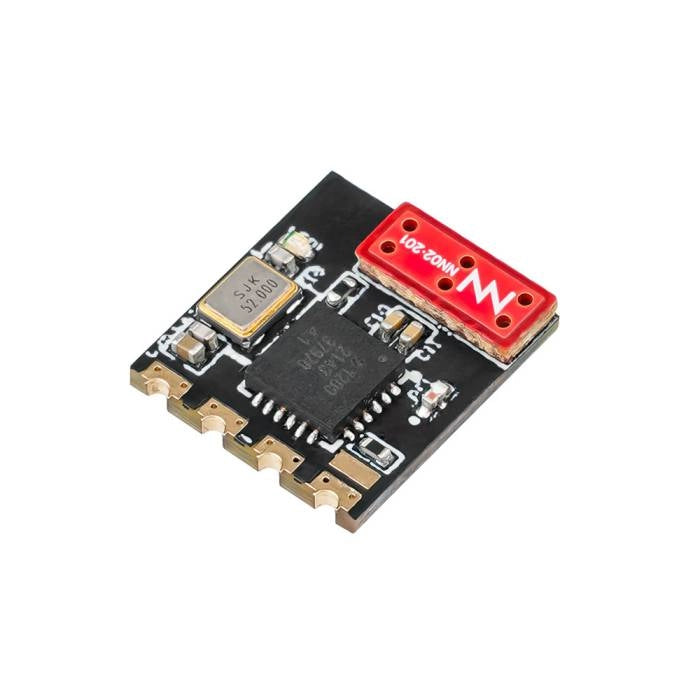

BETAFPV ELRS Lite Receiver

BETAFPV ELRS Lite Receiver

€13,95 EUR
€13,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

The BETAFPV Lite 2.4GHz receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in speed, latency, and range. This makes ExpressLRS one of the fastest RC links available while offering long-range performance.

Features

  • Can achieve approximately 600 meters under equal conditions
  • Superior link performance in speed, latency, and range
  • Performs well in control, range, and stability
  • Suitable for 65-85mm whoop drones
  • Flat Antenna

Specifications

  • Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM
  • Weight: 0.53g (with Flat SMD ceramic antenna)
  • Antenna: Integrated SMD ceramic antenna
  • Size: 11mm  x 10mm x 3mm
  • Telemetry power: 17mW
  • Radio Efficiency: >80%
  • Input voltage: 5V
  • Return Loss <-7
  • MCU: ESP8285
  • Gain: 3.2dBi

Includes

  • 4x 30 AWG silicone connection wires (1 black, 1 red, 1 white, 1 yellow)
  • 1x BETAFPV ELRS Lite 2.4GHz Receiver w/ Flat Antenna
  • 2x Spare shrink tube
View full details

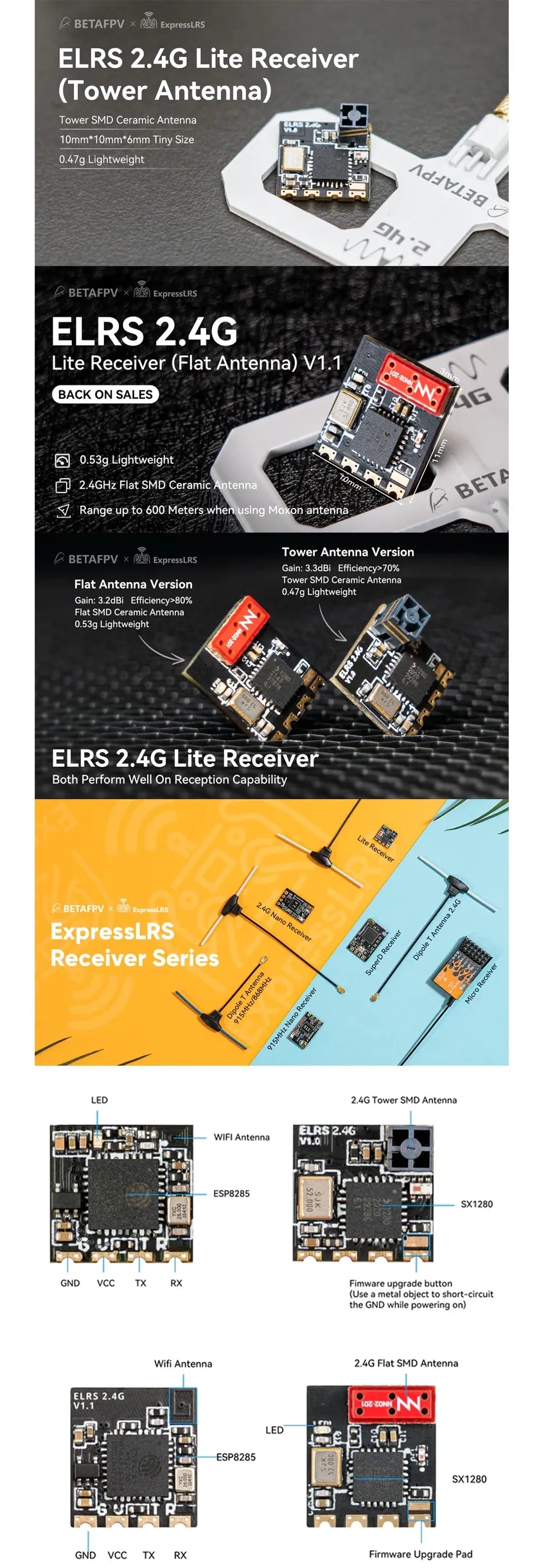

Extra product image
