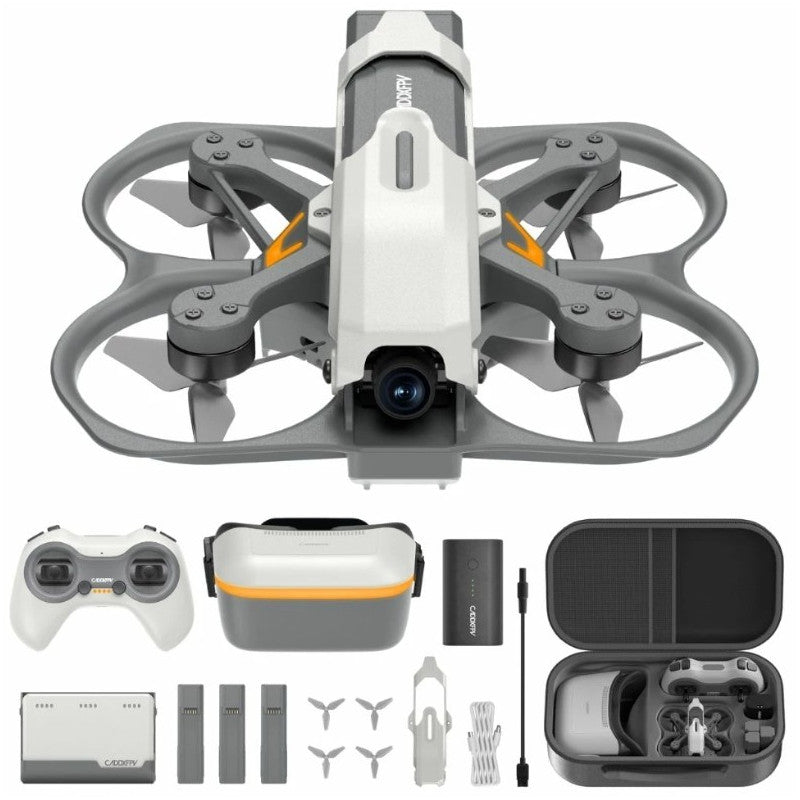

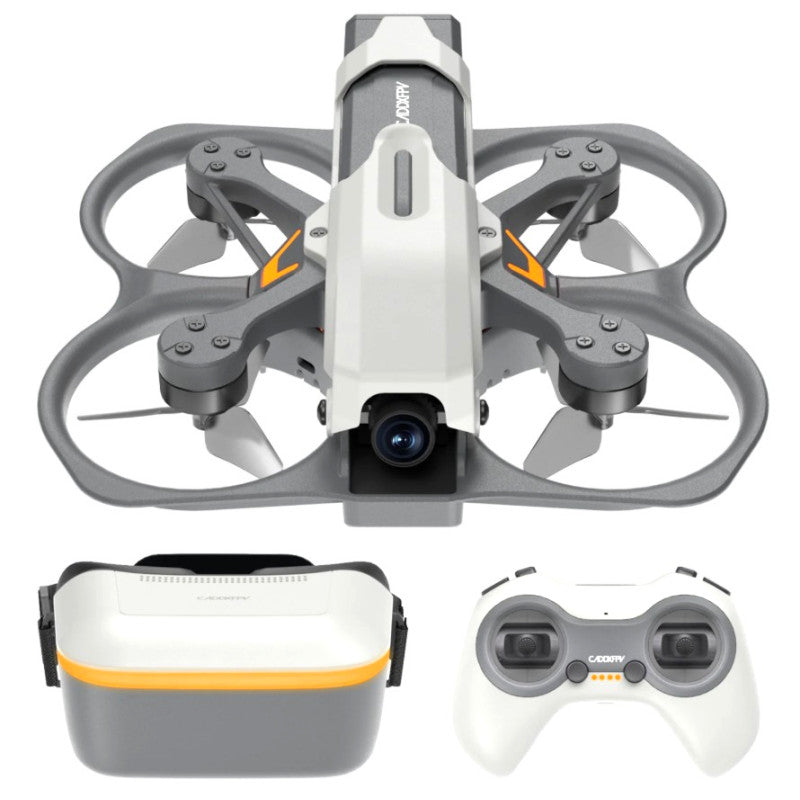

Caddx Protos FPV Drone RTF Kit

Name: Caddx Protos FPV Drone RTF Kit
Brand: HobbyRC
Price: 389.95 EUR
Availability: InStock

Caddx Protos FPV Drone RTF Kit

€389,95 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Delivery: 8-10 working days

Top Choice Protos FPV Drone RTF Kit: At just 1.6 inches and 100g, this mini FPV drone fits in your palm yet delivers stunning HD video. No FAA registration or Remote ID needed—fly it anywhere with total freedom. Pocket-sized, beginner-friendly, and powerful enough for pros

Features

Smallest digital HD FPV Drone in its class: 100g, 1.6" indoor and outdoor capable
Protos is equipped with the newly developed ASCENT digital HD system
Ready to fly fight out of the box - Learn FPV flight in just one minute
Pro-Grade Low-Latency Video

Specifications

Ascent HD VTX: 28.6% better signal penetration, 2ms latency, 6km range
Sharp Imaging: 2MB BSI sensor, 1080P 60FPS, 147° FOV, 0.01 lux
Frame Type: Unibody polymer frame, quick-release propellers
Flight Times: Approximately 10 minutes with 840mAh LiPo
Advanced Flight Modes: Angle, Acro, Position Hold
Top Speed: 100km/h

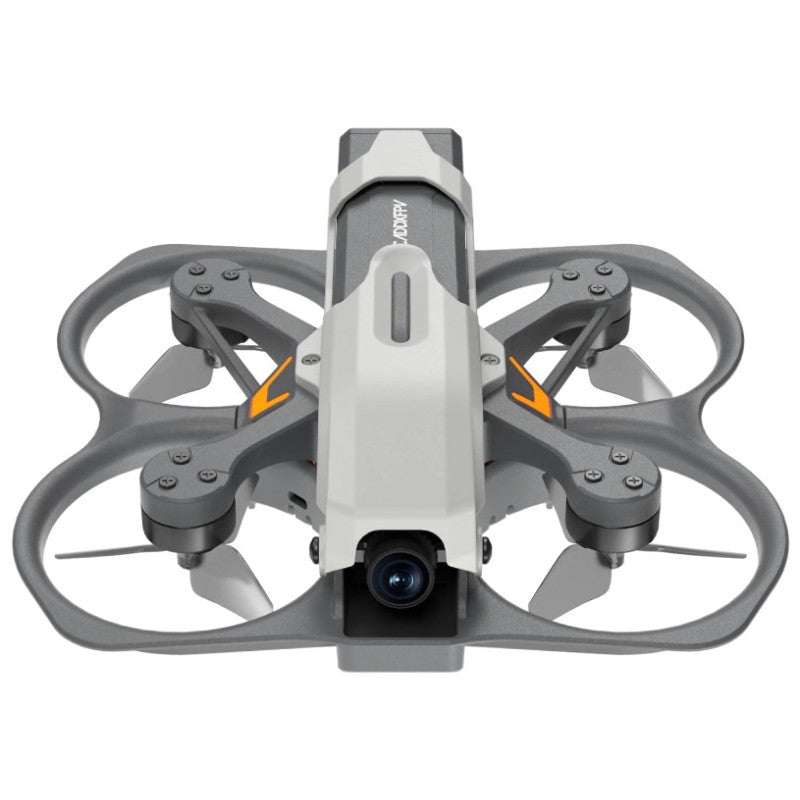

PROTOS DRONE

Propeller: HQprop U40mm×3GR-PC-1.5mm
Flight Control: Caddx Protos AIO 1.0
Flight Endurance: 8.5min ±0.5min
Video Transmission: Ascent Lite
Motor Diagonal Distance: 78mm
Dimensions: 110×102.8×41mm
RC Receiver: ELRS 2.4GHz
Motor: 1102 14000KV
Weight: 104.4g ±1.5g
Flight Controller:
Main Control Chip: STM32-F405RGT6
Gyroscope: BMI270
Barometer: SPL06
Onboard Receiver: ESP8285
Receiver Protocol: ELRS 2.4GHz
ESC Protocol Compatibility: Bluejay / BLHeli-S Optional
ESC Maximum Current: 12A (Single Channel)
Video Transmission:
Resolution: 1080P 60FPS / 720P 60FPS
Max Transmission Range: Up to 3km
Image Sensor: 1/2.8 inch Sensor
Latency: Average delay 35ms
Built-in Storage: N/A
Power: 25–100mW
Model: Ascent Lite
Ratio: 16:9
FOV: 147°

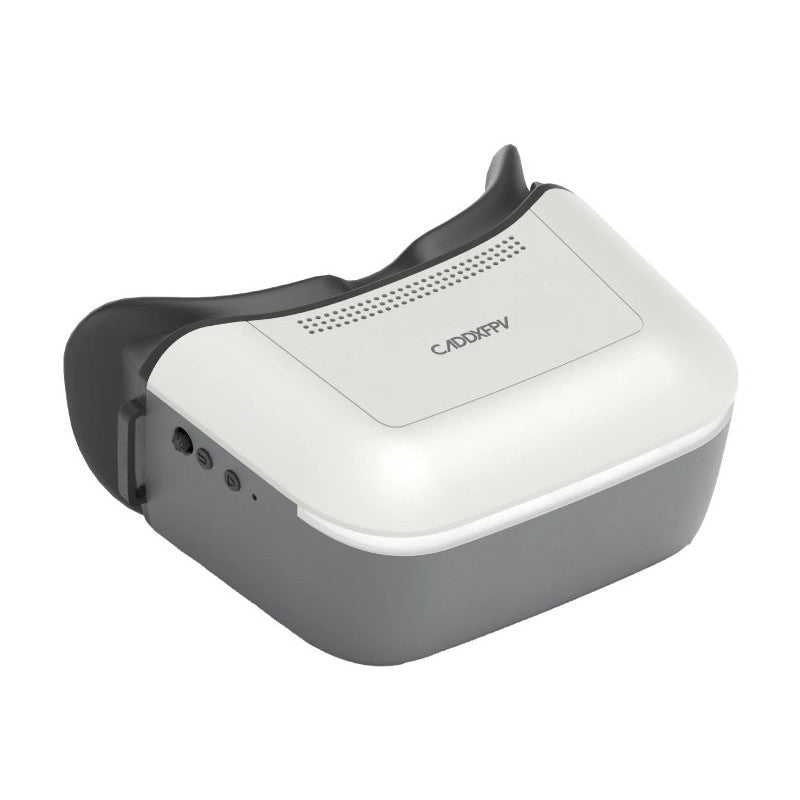

ASCENT GOGGLES

Communication & Transmission Specs
Communication Frequency: 5.725–5.850GHz
Transmit Power (EIRP):
FCC: <30dBm
CE: <14dBm
SRRC: <20dBm
MIC: <25dBm
I/O Interface: 4-Pin 3.5mm Plug, DC5.5×2.1mm, Micro SD Card Slot
Transmission Resolution: 1080P 60FPS / 720P 60FPS
Code Rate: Max 50 Mbps
Minimum Latency: Average 32ms
Average Gain: 4.9dBi
Polarization: LHCP
Transmission Distance: >4km
Channel Count: 8
Display
Screen Resolution: 1920×1080 @ 60Hz
Screen Material: LCD
Screen Size: 4.5 inch
Wide Voltage Input: 6V–25.2V (2S–6S)
SD Card Slot: Supports up to 256GB

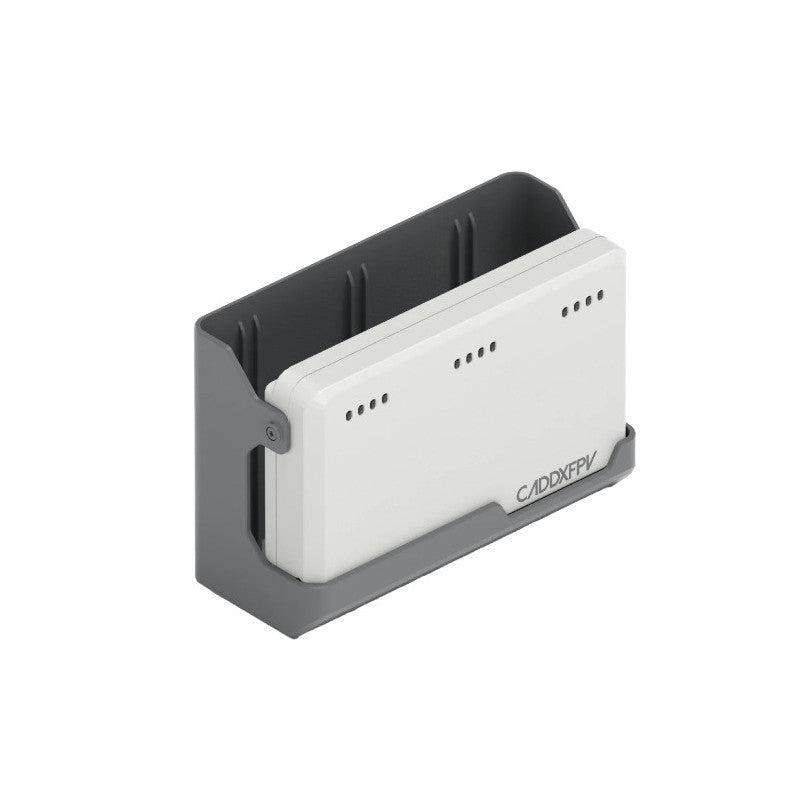

2S BATTERY CHARGER

Display: LED ×4
Channel: 3 (Sequential Charging)
Function Selection: Charging, Storage
Battery Type: Li-ion 2S 840mAh Battery
Input Voltage: 12–15V (PD Input, 5V Adapter Not Supported)
Output Voltage: 8.7V
Input Current: Max 3A
Charging Current: Max 3A
Balancing Current: Max 0.21A
Charging Power: Max 25W
Discharging Power: Total 5W (Max 1.6W per Channel)
Interface: Type-C
Operating Temperature: -10~45°C
Storage Temperature: -20~60°C
Dimensions: 94×63×39.1mm
Weight: 65±0.5g

2S BATTERIES

Protection Mechanism:
When the voltage of a single cell drops below 2.8V, battery lock protection is triggered and charging is required to reactivate.
Battery Specification: 2S1P (2 Cells in Series, 1 in Parallel)
Battery Type: Li-ion (Lithium-ion Battery)
Battery Capacity: 840mAh
Discharge Rate (C-Rate): 15C
Maximum Power: 6.384Wh
Voltage Range: 6.80V–8.70V
Max Charging Voltage: 8.5V
Charging Method: 2S Charger
Charging Time: ≤20min
Dimensions: 77.5×24×21mm
Weight: 41.9g ±0.5g
