GEPRC Tern-LR40 4"

Frame GEPRC Tern-LR40

The Tern-LR40 frame is specially designed for the 4-inch long-range FPV drone. Adopting a well-designed DC shape structure, after the extensive host of lightweight experiments and the use of 7075 aviation-grade Aluminum parts, the Tern-LR40 frame achieved lightness and rigidity. Top-fixing GPS avoids the effect on GPS from disturbance. In addition, applying a Silicone shock absorption pad can effectively reduce the frequent vibration of O3 from instability.

Specifications:

Frame：GEP-Tern-LR40 Frame
Motor to motor：180mm
Top plate：1.5mm
Mid plate：2.0mm
Arm thickness：3.5mm
Bottom plate：1.5mm
FC fixing hole size：20 * 20mm/25 * 25mm
VTX fixing hole size：20 * 20mm/25 * 25mm
Motor fixing hole size：9 * 9mm
Camera mounting size：20mm
Recommended propellers：4-inch
Weight：59±2g

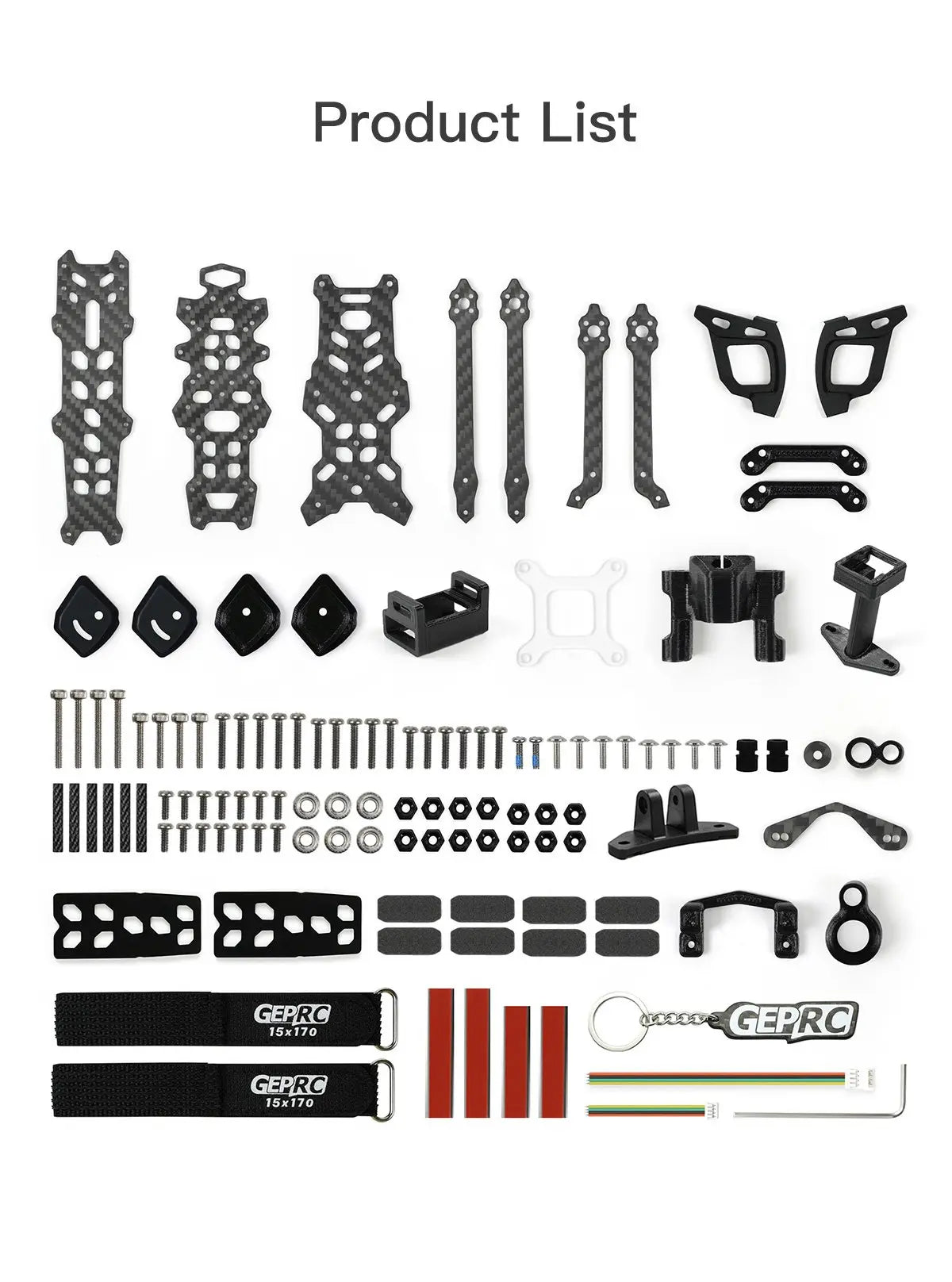

Package Includes:

1 x Frame GEPRC Tern-LR40
