Happymodel ELRS Nano 2.4GHz EP1 RX

Happymodel ELRS Nano 2.4GHz EP1 RX

€19,95 EUR
€19,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • Designed by Jye Smith on the ExpressLRS development team.
  • TM32L432KBU6 MCU and SX1280 RF chip.
  • High-refresh-rate RF module
  • Ceramic Antenna
Specifications

EP1_RX

Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Chip: SX1280IMLTRT RF Module
Weight: 0.42gram(without antenna)
Antenna: Omnidirectional antenna
Dimension: 10mm*10mm*3mm
Firmware Target:aec8ad82
Firmware Upload: WiFi
Working voltage: 5v
Peak gain: 2.23dB
MCU: ESP8285
Type: ISM

Includes

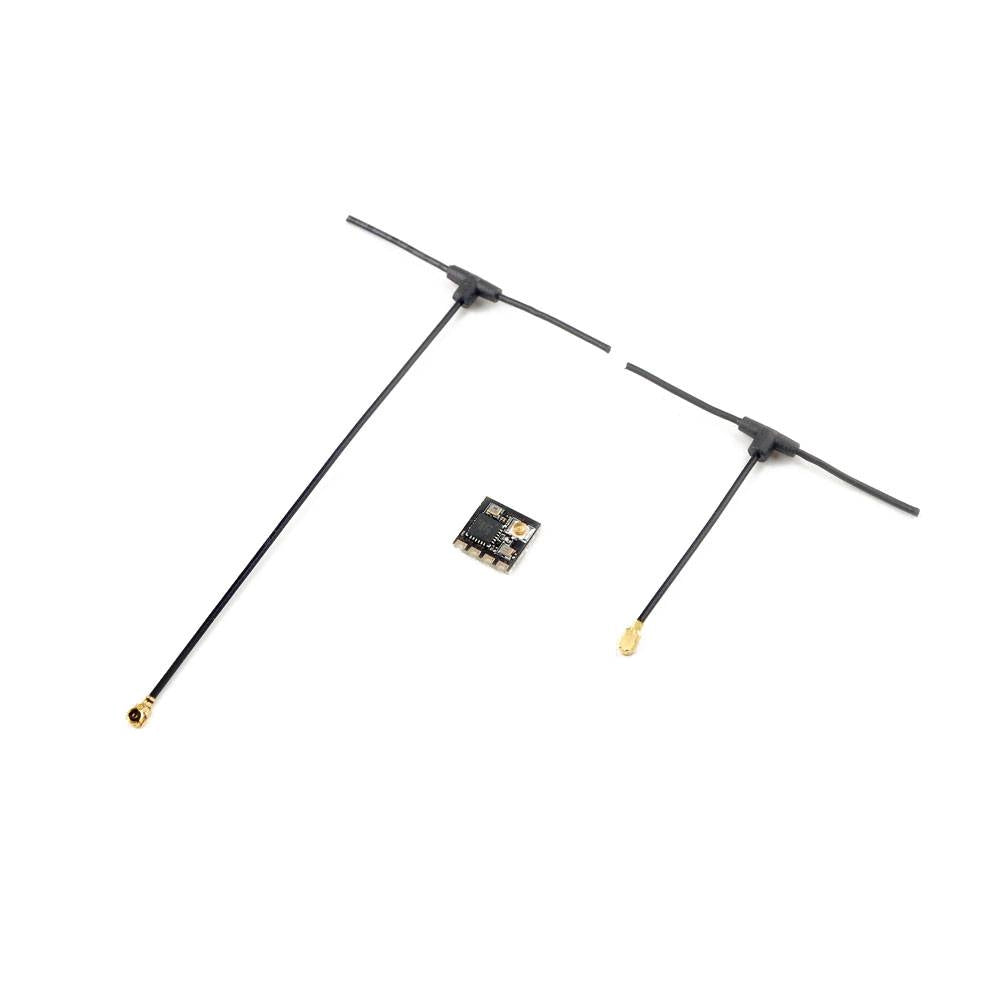

1 x Happymodel ExpressLRS Nano 2.4GHz EP1 RX
1 x 40mm Omnidirectional antenna
1 x 90mm Omnidirectional antenna
