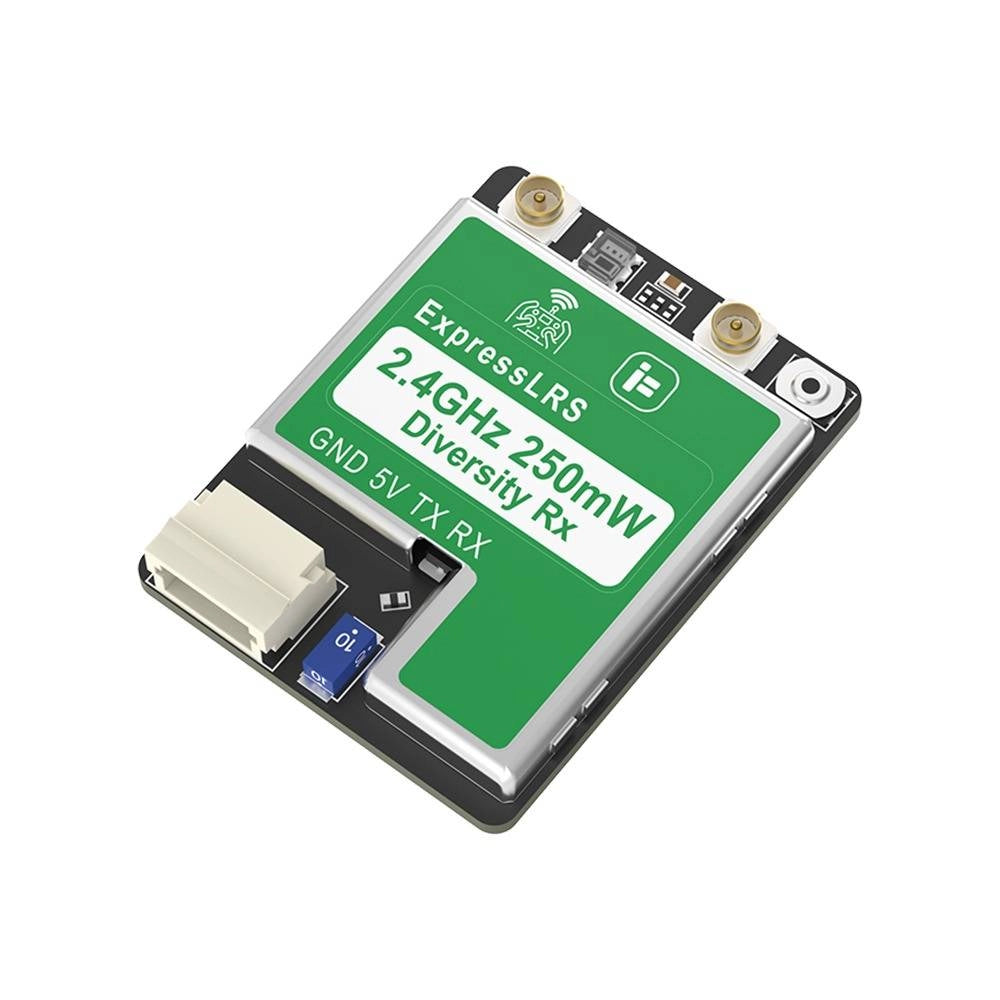

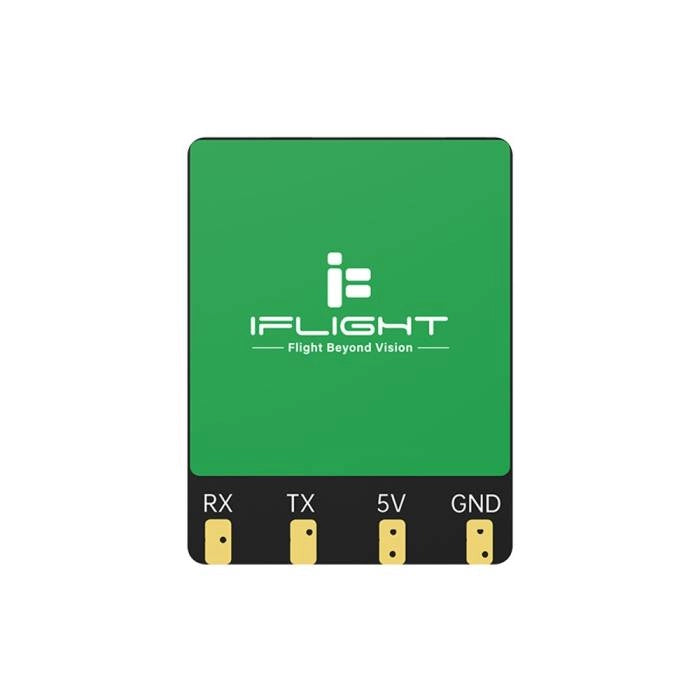

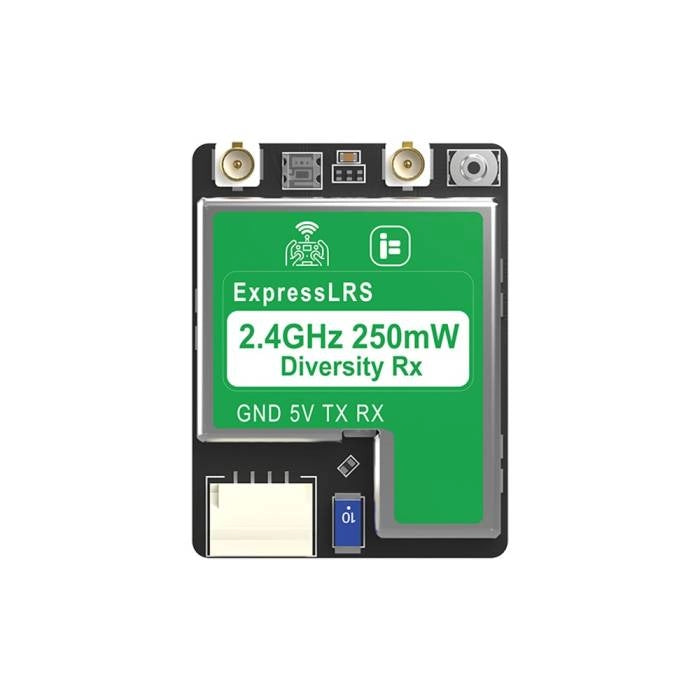

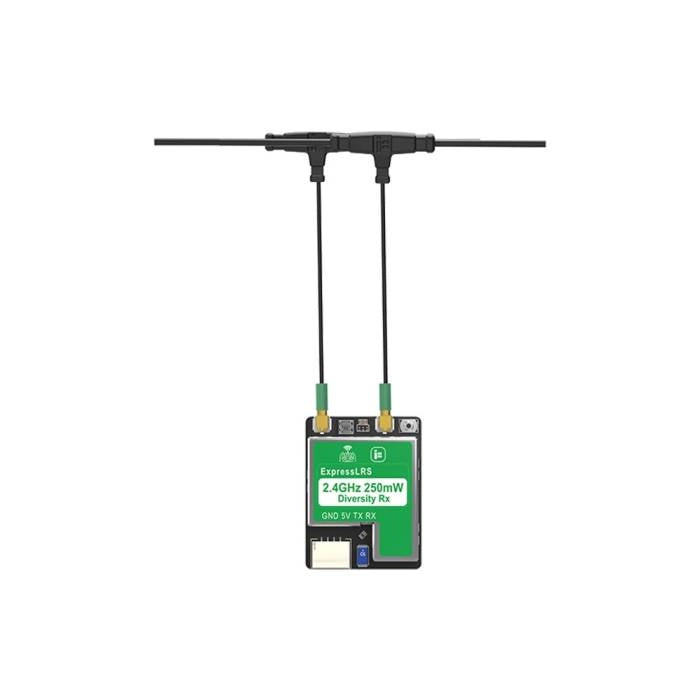

iFlight ELRS True Diversity 2.4GHz Receiver + 2x70mm Antenna

iFlight ELRS True Diversity 2.4GHz Receiver + 2x70mm Antenna

€39,95 EUR
€39,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

The iFlight ELRS True Diversity 2.4GHz Receiver + 2x70mm Antenna is a true dual-antenna diversity receiver with exceptional frequency stability. The ELRS diversity receiver features well-placed dual antennas with shielding covers, enhancing its resistance to interference, widening signal reception, and ensuring a more stable connection compared to conventional single-antenna receiver systems. It incorporates a TCXO temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations. It sufficiently meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.

Features

  • Gemini mode and True Diversity mode compatible
  • Integrated shields protect electronic components and enhance anti-interference capabilities.
  • Newly upgraded Temperature Compensated Crystal Oscillator, lower packet loss, high-frequency stability
  • Up to 250mW telemetry transmission, resulting in stronger telemetry signals and significantly reducing instances of telemetry loss.
  • High-performance at 2400MHz or 900MHz (900 / 868 bands available)
Specifications

MCU: ESP32-Pico D4
Receiver Type: Gemini/True Diversity
Firmware: iFlight 2.4GHz 250mW Diversity RX(2.4G)
Lua Script: iFlight 2G4 250mW GRX(2.4G)
Frequency bands: 868MHz EU/900MHz FCC and 2.4GHz ISM
Telemetry Power: 50-250mW (17-24dBm)(2.4G)
Dimension: 24.5*18.6*6.3mm(2.4G)
Protocol: CRSF
LNA: YES (2.4G)
Weight: 3.3g (2.4G)

Includes

1 x iFlight ELRS True Diversity 2.4GHz Receiver
2 x Antenna
