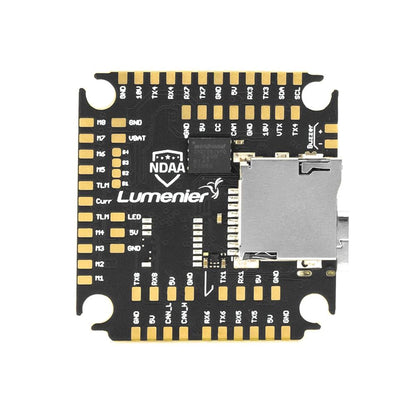

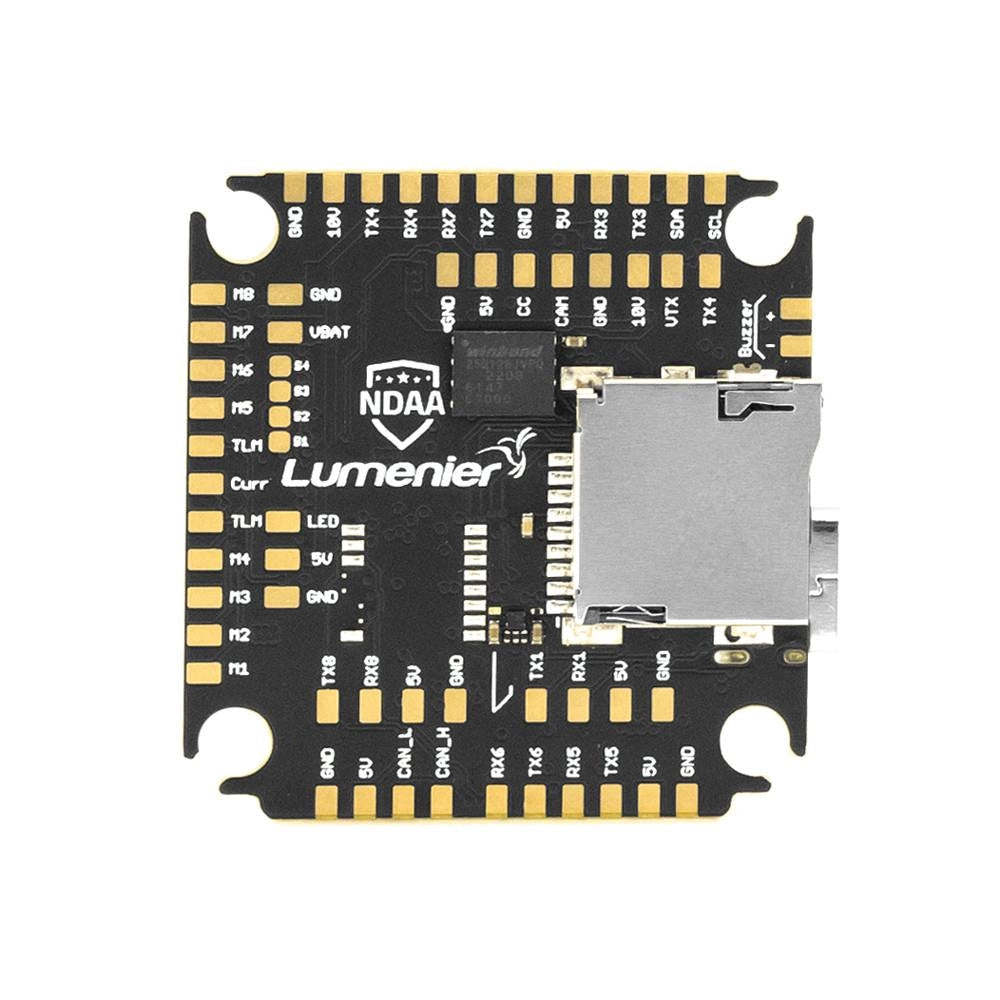

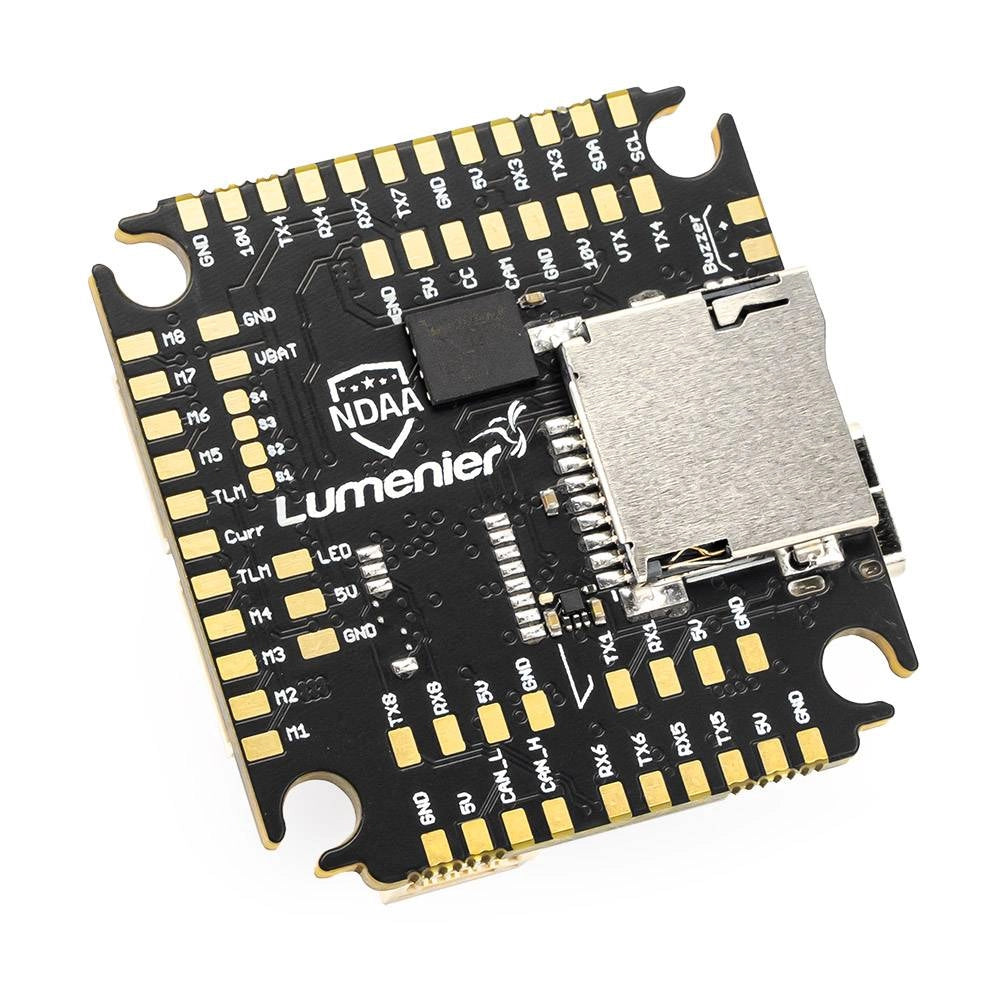

Lumenier LUX F765 FC

Lumenier LUX F765 FC

€79,95 EUR
€79,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Lumenier LUX F765 FC is your ultimate solution for high-performance multirotor builds, offering robust features and seamless compatibility with Betaflight, Ardupilot, and PX4. Its NDAA-compliant design ensures reliability and security for professional and recreational pilots alike.

Omadused

  • Supported Firmware - Betaflight, Ardupilot, and PX4
  • NDAA compliant and designed in the USA
  • Blackbox Storage - SD Card and Flash
  • I2C Ports for External Sensors
  • 10V Regulator for VTX Power
  • 5V Regulator for Accessories
  • Analog Current Sensor Input
  • Analog Battery Sensor Input
  • CANbus Support (PX4 only)
  • Integrated BetaFlight OSD
  • Camera Control Output
  • LED Strip Control
  • USB Type-C (2.0)
  • 8 UART Ports

Spetsifikatsioon

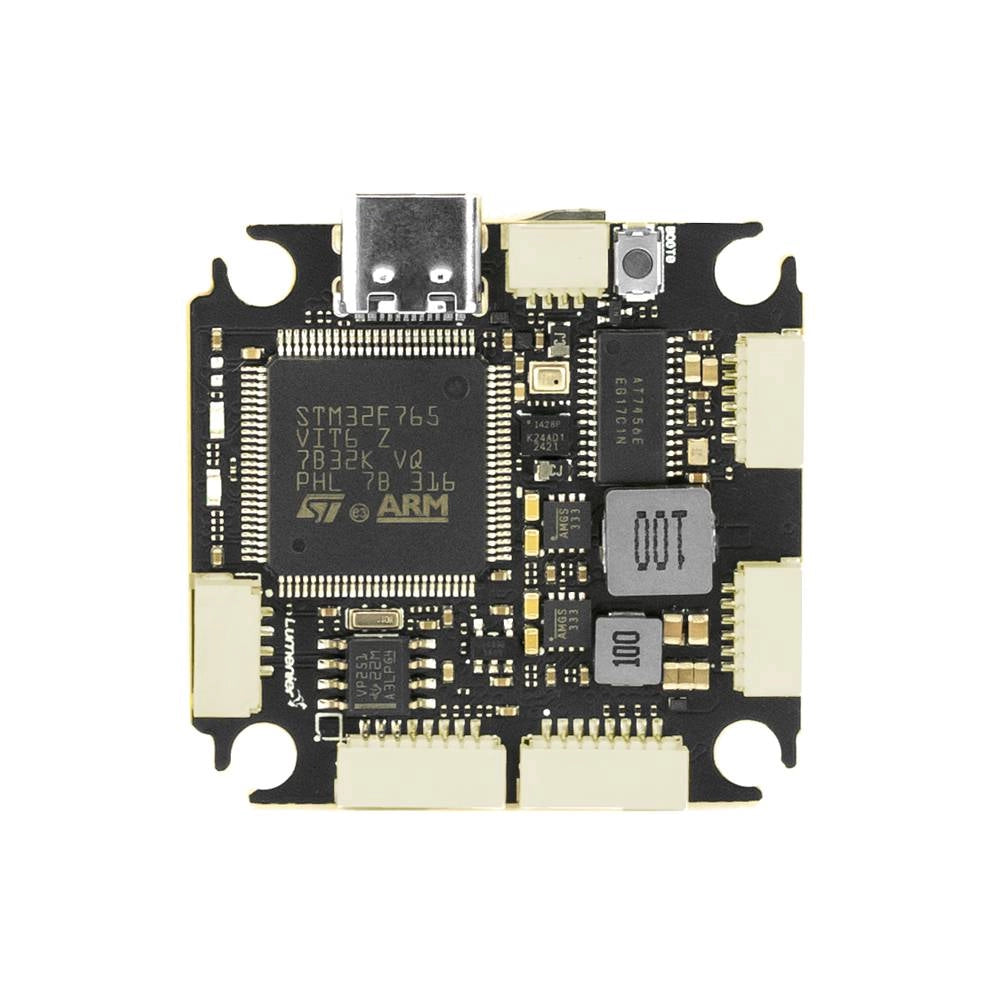

  • Processor: MCU STM32F765, 216MHz, 512KB RAM, 2MB Flash
  • OSD (On Screen Display): Integrated analog BetaFlight OSD
  • Sensors: Built-in Gyro, Accelerometer, and Barometer
  • Power Supply: 3S to 6S Battery Voltage
  • Weight: 9g
  • LED Indicators:
    • 2x LEDs for Status (3.3V Power and Firmware Indicator)
  • Power Regulators:
    • Analog Inputs: 2x ADC (VBAT and Current)
    • Camera Support: 1x Camera Input
    • +10V Regulator for VTX
    • +5V Regulator
  • Mounting:
    • Holes: 30.5mm x 30.5mm
    • Dimensions: 38x38x4mm
  • Outputs:
    • 12x Motor/Servo Outputs
    • LED Strip Control
    • Buzzer Output
  • Storage:
    • Flash Storage: 128Mb
    • SD Card Slot
  • Ports:
    • 1x External I2C Port
    • USB Type-C (2.0)
    • 1x CANbus Port
    • 8x UART Ports

IMPORTANT NOTES:

When using Ardupilot or PX4 builds, an sdcard is required to boot after firmware install.

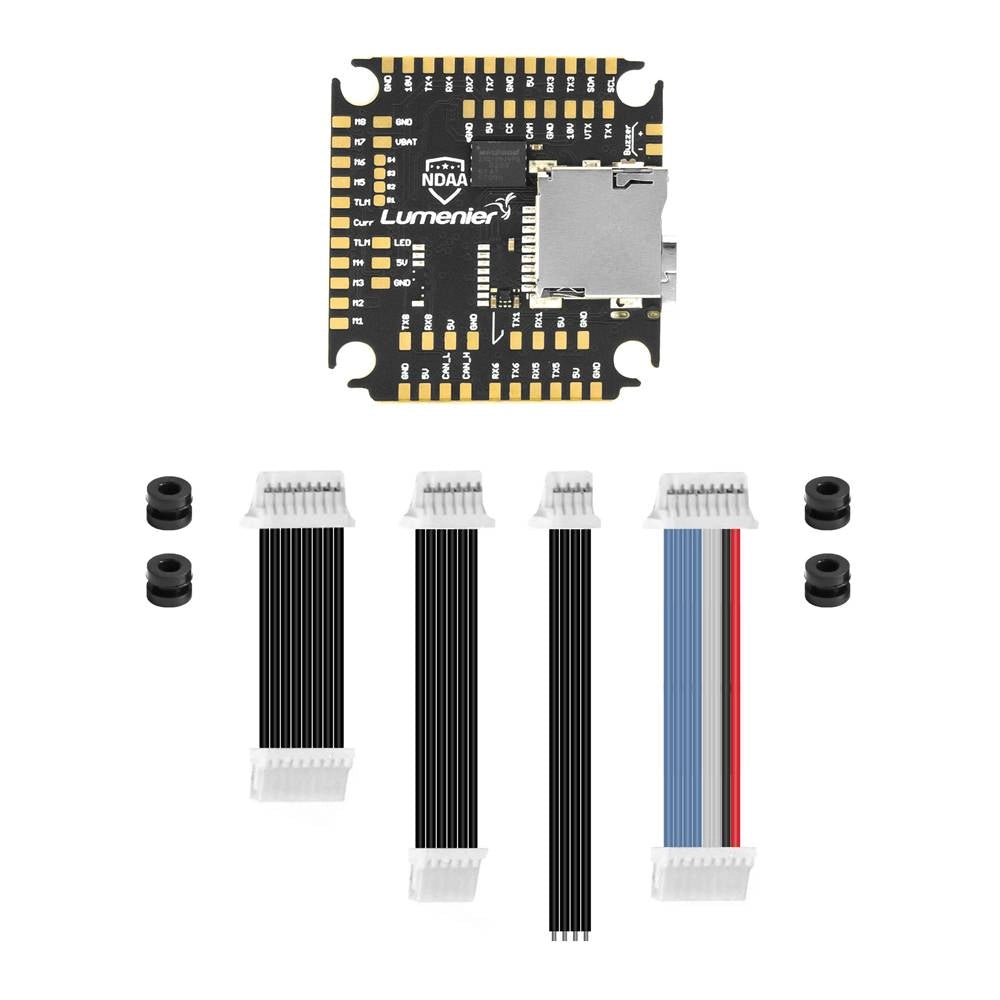

Komplektis:

  • 1x Lumenier LUX F765 Flight Controller - NDAA
  • 1x 63mm 8 pin JST-SH Cable
  • 1x 23mm 8 pin JST-SH Cable
  • 1x 64mm 6 pin JST-SH Cable
  • 1x 75mm 4 pin JST-SH Cable
  • 4x M3 Rubber Grommets
