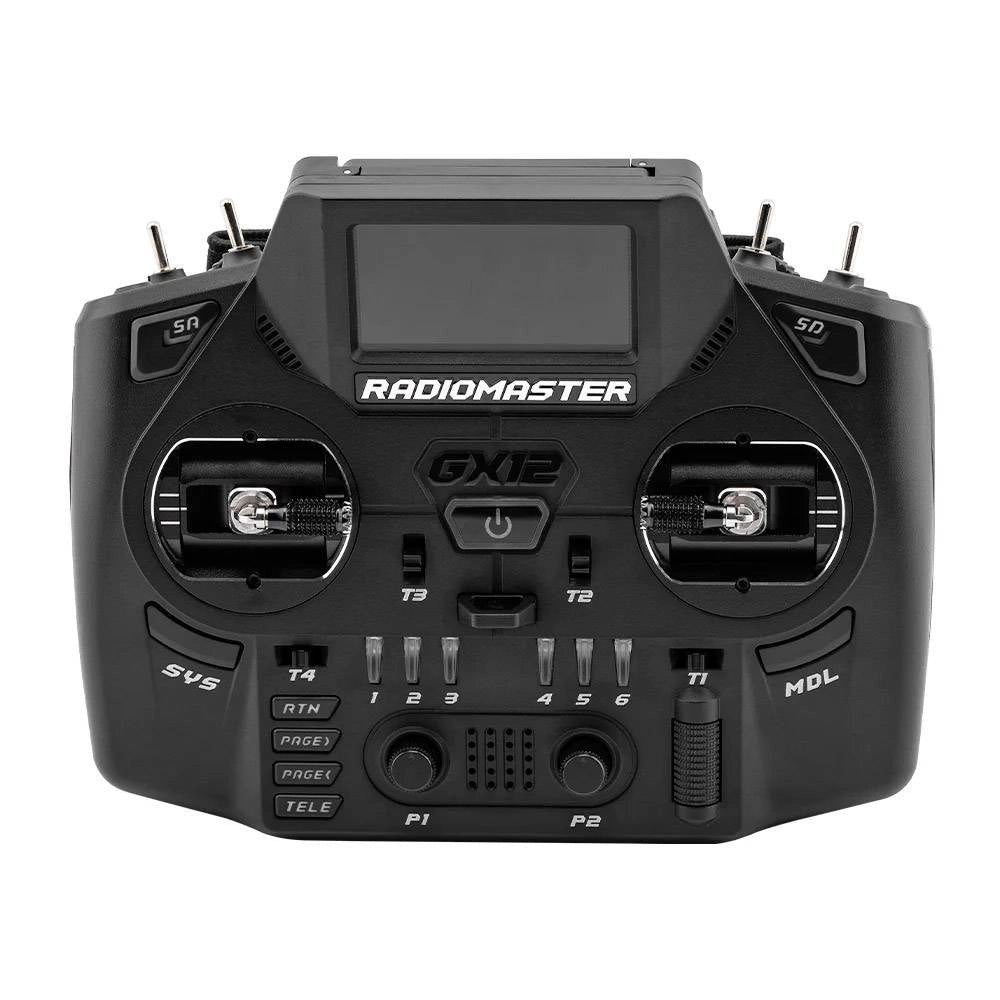

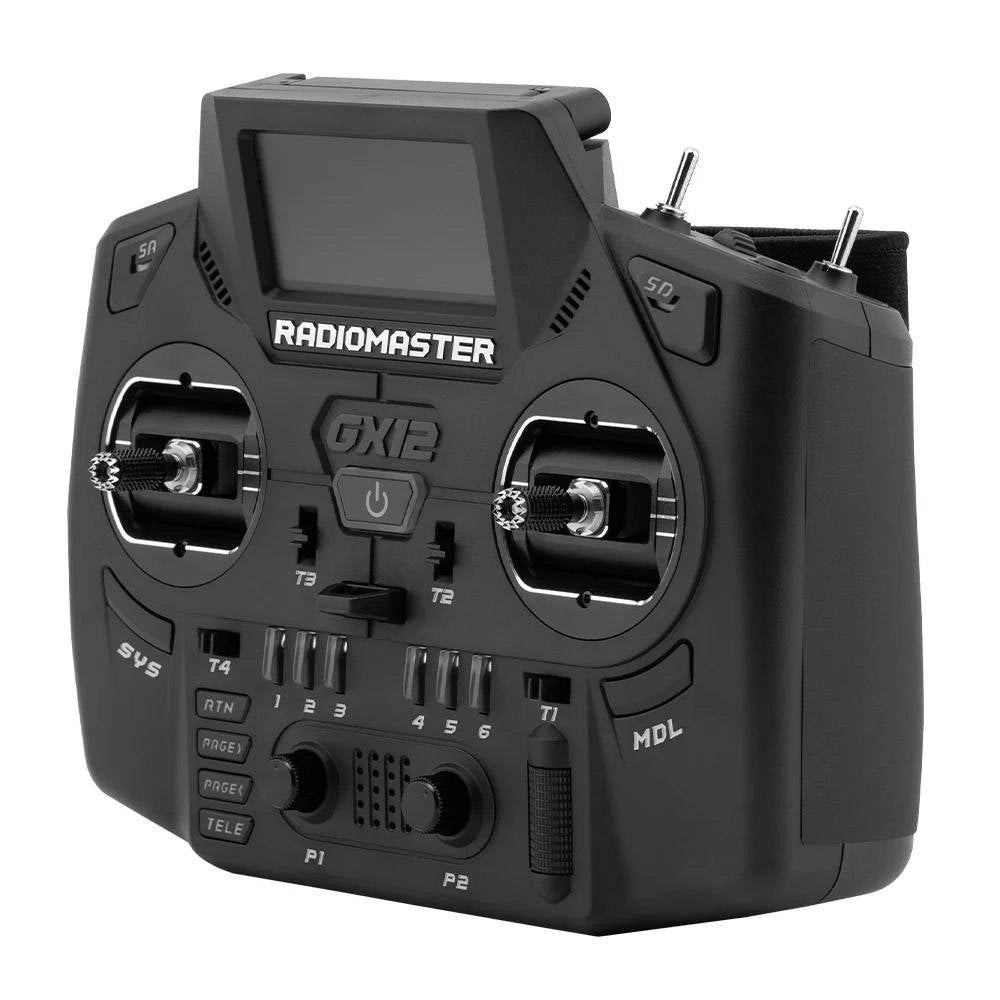

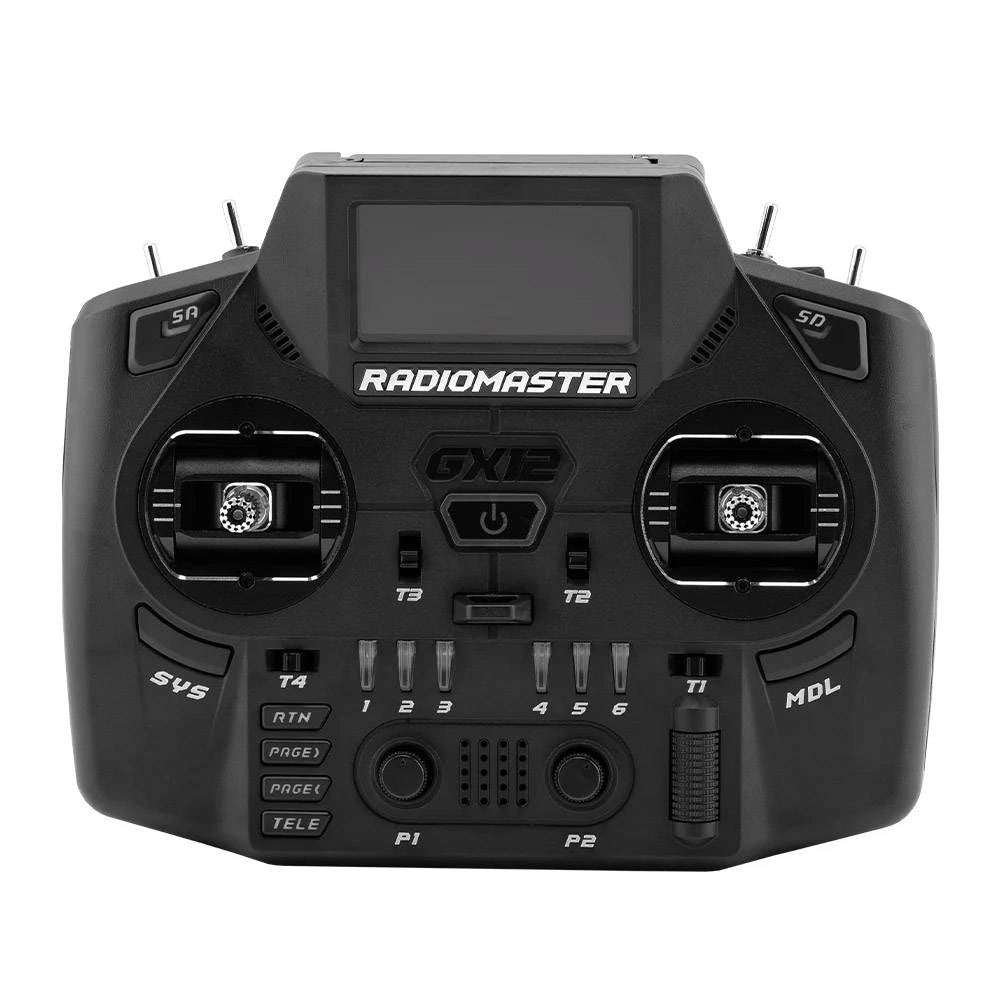

RadioMaster GX12 Dual-Band RC ELRS (M2)

Battery Included Yes No

€233,95 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Shipping time:

8-10 working days

The RadioMaster GX12 marks a new era of innovation and technology in high-performance radio controllers.

Features

Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters
GX01 CNC Aluminum 3D Hall Sensor Gimbals
1000Hz Digital Gimbals with EdgeTX Sync

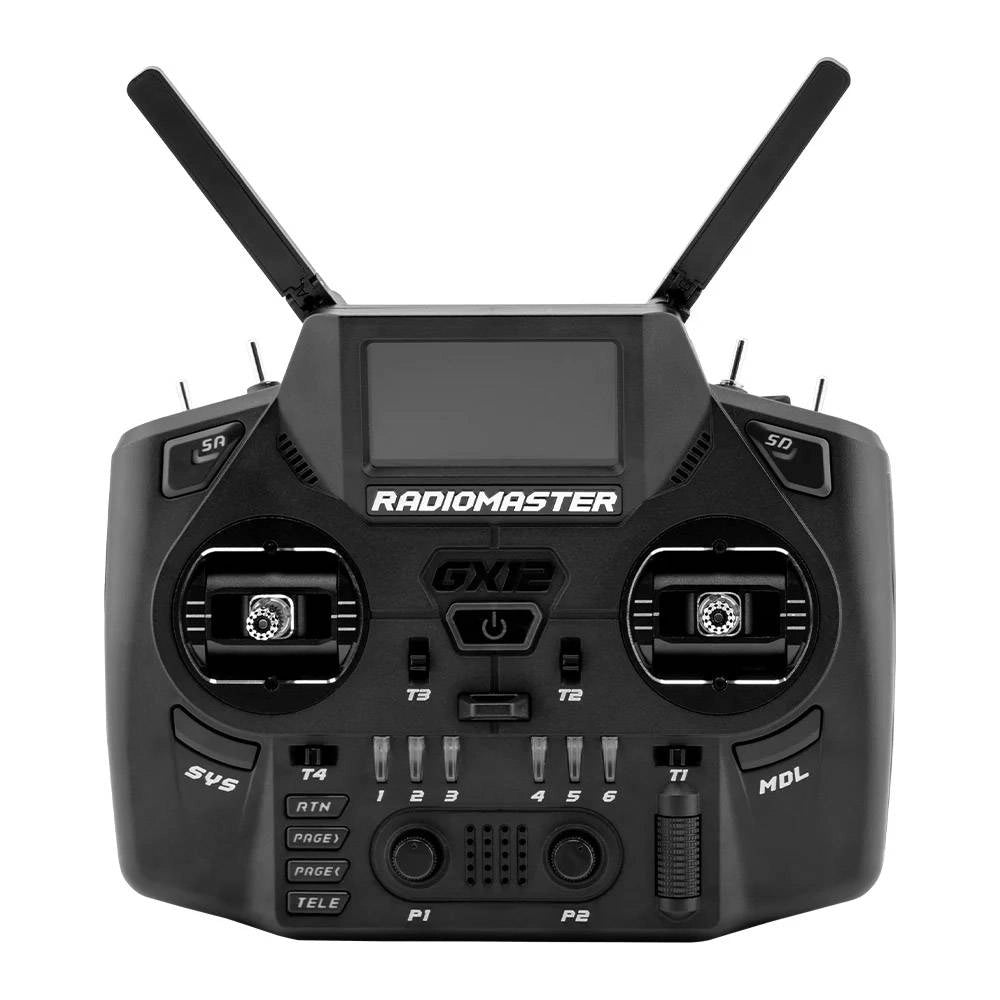

Integrated Folding Dual-Band Antennas
Programmable 6-Position Switch
Customizable RGB Indicators
Advanced Cooling System
Removable Switch Panels
512MB Internal Storage
Folding Gimbal Sticks
USB-C Connectivity
PCB Nano Coating
DIY SMA Ports
OLED Display

FREQUENCY

Introducing the GX12 Radio Controller: a groundbreaking fusion of cutting-edge technology from ExpressLRS and EdgeTX. The GX12 is the first radio to feature ExpressLRS Gemini-XROSSBAND (Gem-X), enabling simultaneous transmission on both 2.4 GHz and 915 MHz for unmatched interference rejection. Designed with integrated folding dual-band antennas, the GX12 supports all current 2.4 GHz and 900 MHz ExpressLRS receivers, as well as the new generation of Gemini-XROSSBAND receivers, delivering extended range and exceptional performance. Elevate your flying experience with the ultimate in radio control innovation!

GX12

The GX12 redefines your RC experience with exceptional flexibility and cutting-edge features. Removable switch panels enable personalized setups using the included modular panel system, while DIY SMA ports let you select the perfect antennas for your needs. With 512 MB of internal flash storage, the need for TF cards is eliminated, and a single USB-C port simplifies charging, data transfer, and simulator connectivity. The GX12 also features individually programmable 6-position buttons and SA/SD switches, along with customizable RGB indicators to enhance both functionality and style.

GIMBALS

Folding gimbal sticks ensure compact storage and easy transport. Featuring all-new 1,000 Hz digital aluminum gimbals, the GX12 delivers unparalleled resolution, precision, and responsiveness in an EdgeTX radio.

Specifications

Battery: 7.4 V 2-cell Lithium-Polymer / Two 3.7 V 18650 Lithium-Ion cells / 21700 5,000 mAh battery (batteries not included)
Gimbal: GX01 1,000 Hz, 3D digital CNC Hall effect gimbals with folding sticks
Antenna: Dual folding 2.4 GHz / Sub-G 900 MHz omnidirectional
Radio Firmware: EdgeTX (transmitter) / ELRS (RF module)
Upgrade Method: USB / EdgeTX Companion PC software
Current: 390 mA – 1,000 mA (depending on RF output)
Channels: Maximum 16 channels (receiver-dependent)
RF: Dual 1,000 mW | Dual-band XROSSBAND ELRS
External Module: Nano / Crossfire-compatible
Display: 128 × 64 monochrome OLED display
Internal RF: ELRS 2.4 GHz / Sub-G 900 MHz
Frequency: 2.400 GHz and Sub-G 900 MHz
Charging: 2S smart balance charging
Supported Protocols: ExpressLRS
Memory: 512 MB integrated flash
Voltage Range: 6.6 – 8.4 V DC
Size: 183 × 148 × 78 mm
Connectivity: USB-C
Gimbal Sticks: 3 mm
Item: GX12 Radio
Cooling Fan: Yes
Weight: 573 g
Color: Black

Battery
Item: 18650 3200mAh 3.7V Battery
Cell Type: 18650 Battery
Capacity: 3200mAh
Voltage: 3.7V
Weight: 46.22g

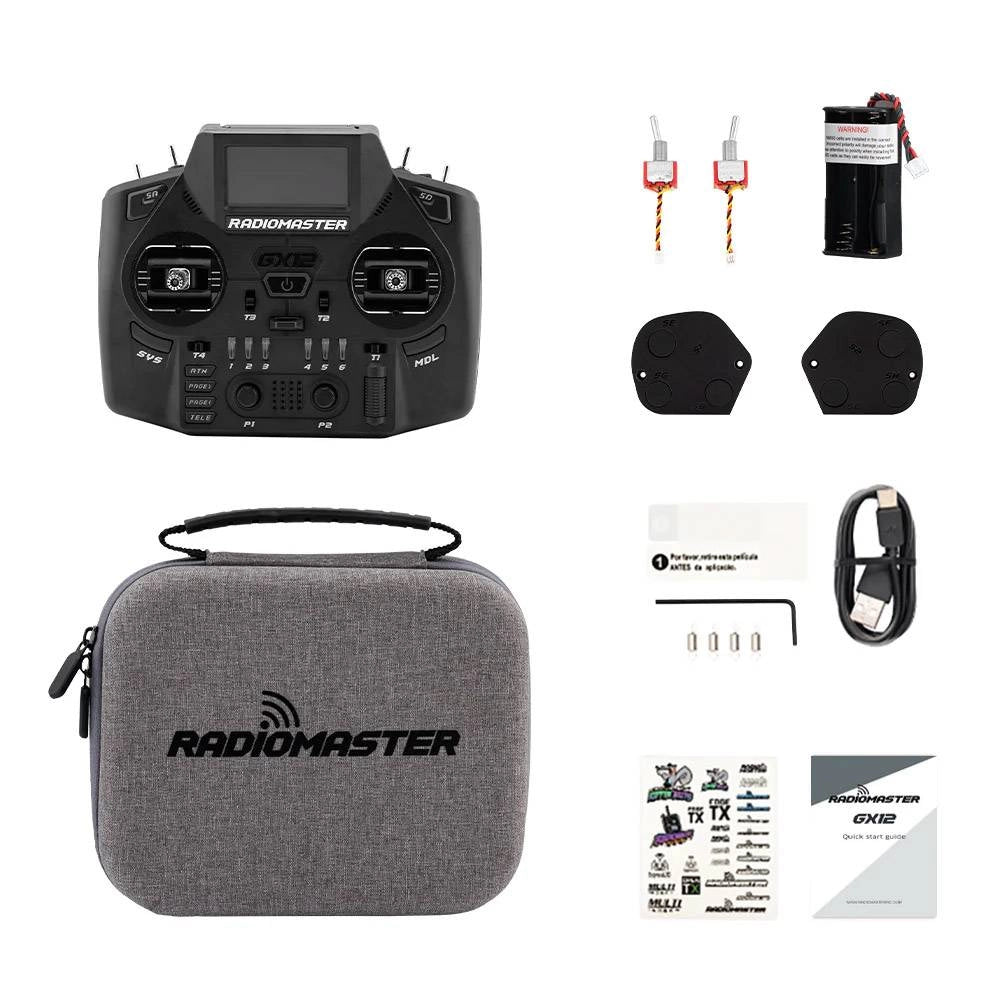

Includes

1 x GX12 Radio Controller
1 x Signature Carry Case
1 x 18650 Battery Tray
2 x Replacement Switch Panels
6 x Switch Delete Plugs
1 x Type-C Cable
1 x Screen Protector
1 x 1.5mm Hex Wrench
4 x High Tension Gimbals Springs
1 x 2 Position Switch
1 x Momentary Switch
1 x RadioMaster Sticker Set
1 x GX12 Manual

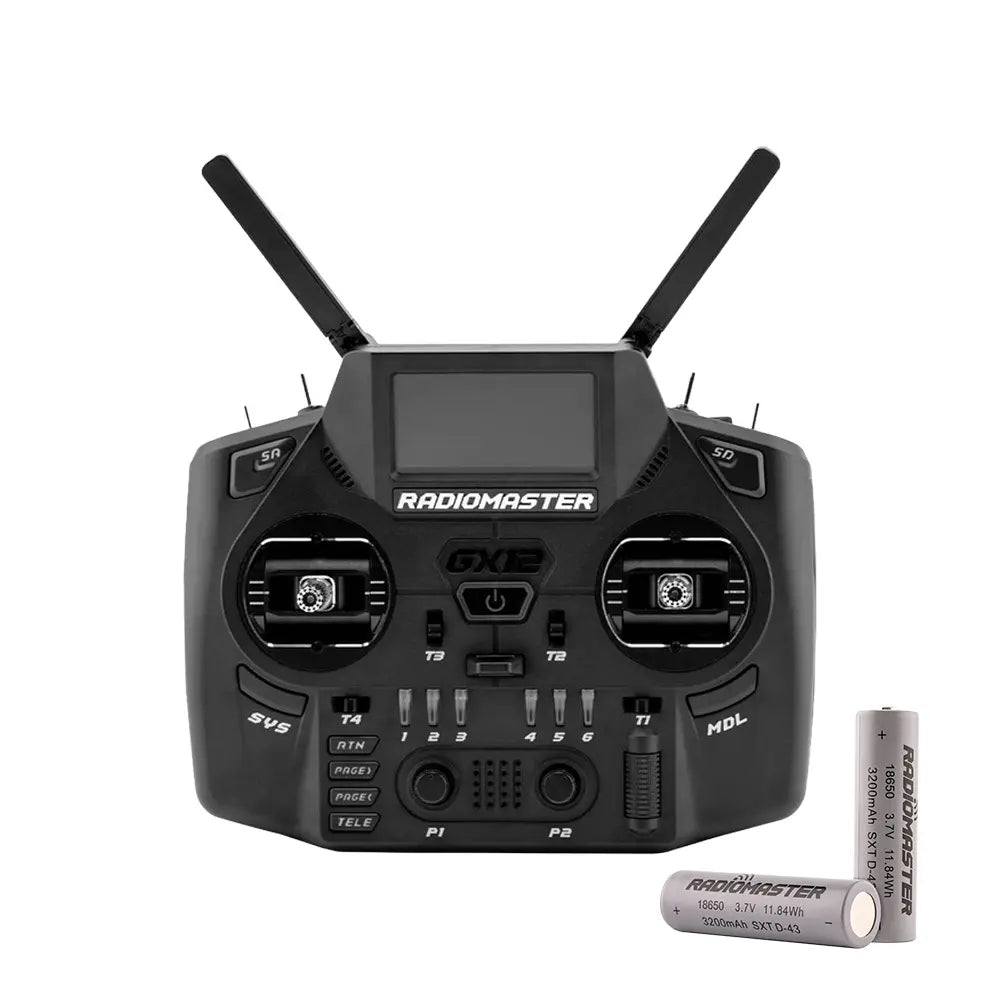

Battery (Optional)
2 x 18650 Battery 3200mAh 3.7V
