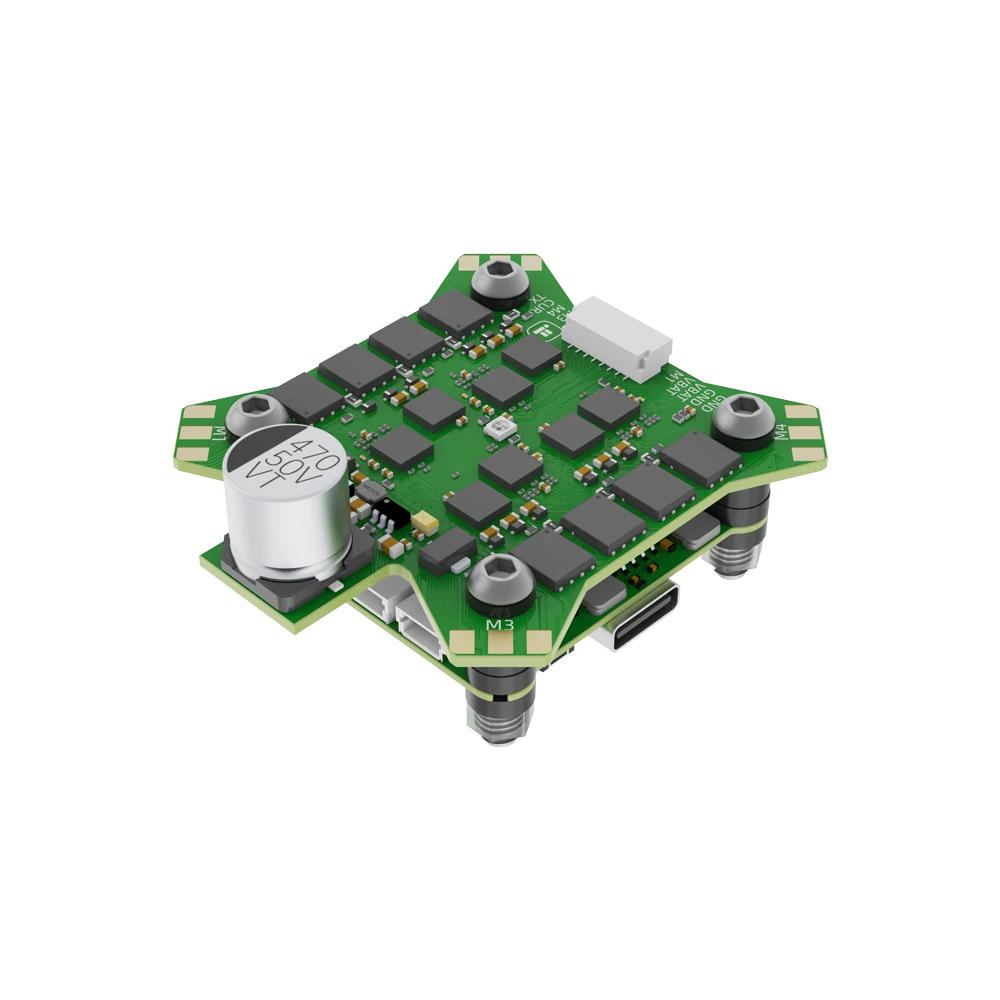

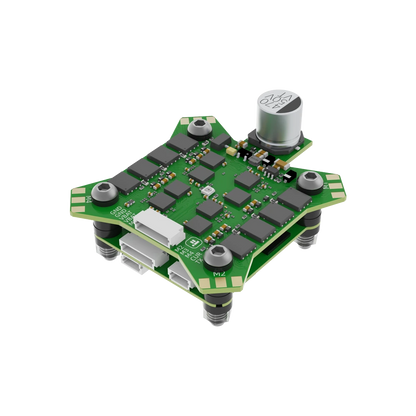

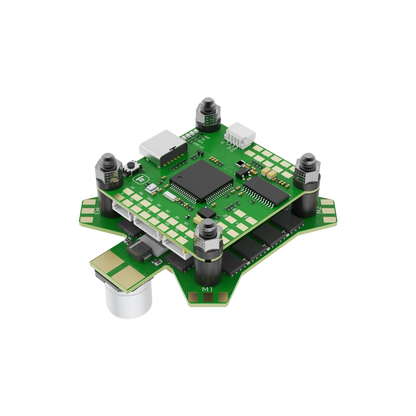

Stack iFlight BLITZ F7 E55 4-IN-1 Flight Tower System

Name: Stack iFlight BLITZ F7 E55 4-IN-1 Flight Tower System
Brand: iFlight
SKU: BF15678
Price: 130.95 EUR
Availability: InStock

Stack iFlight BLITZ F7 E55 4-IN-1 Flight Tower System

€130,95 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Shipping time:

6-8 working days

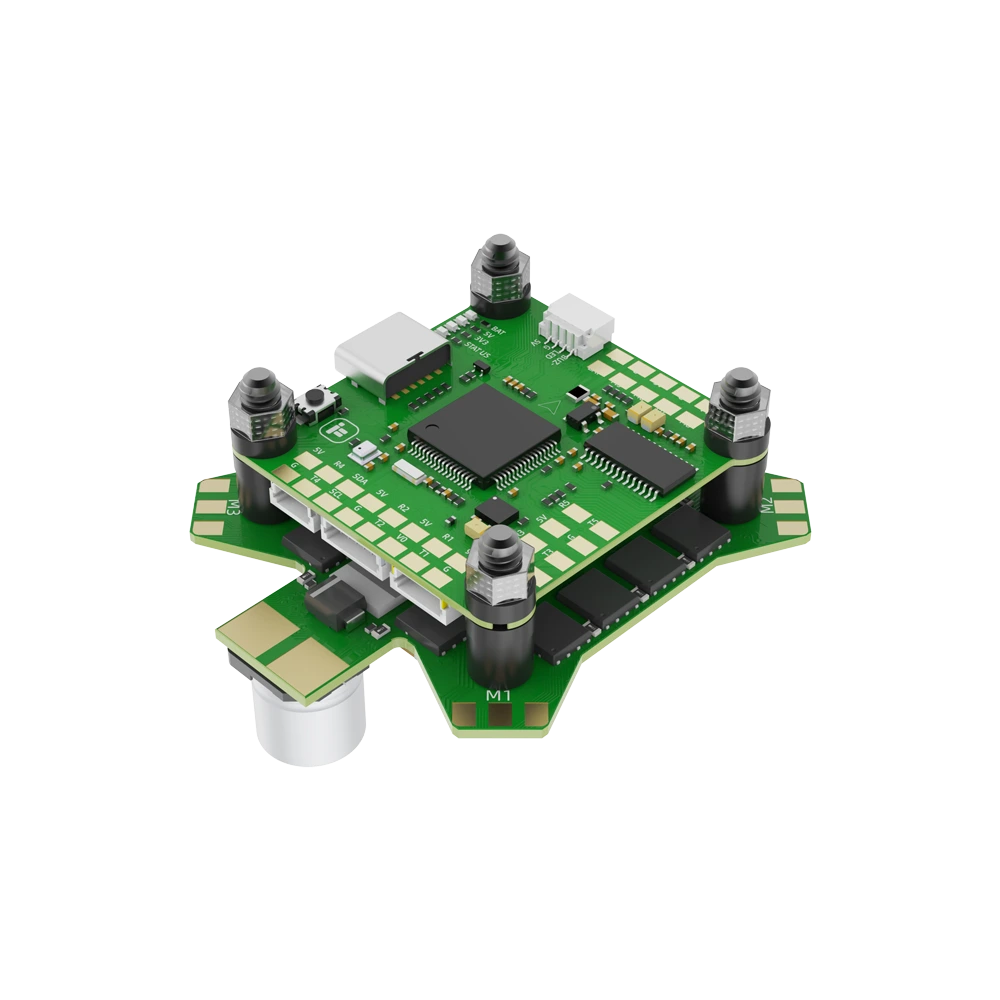

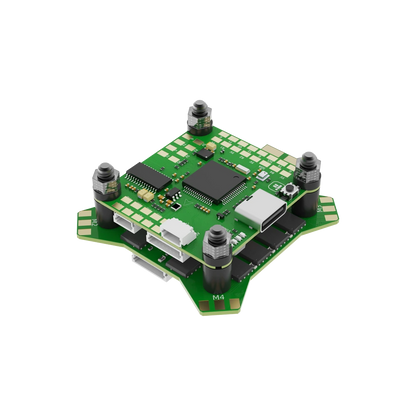

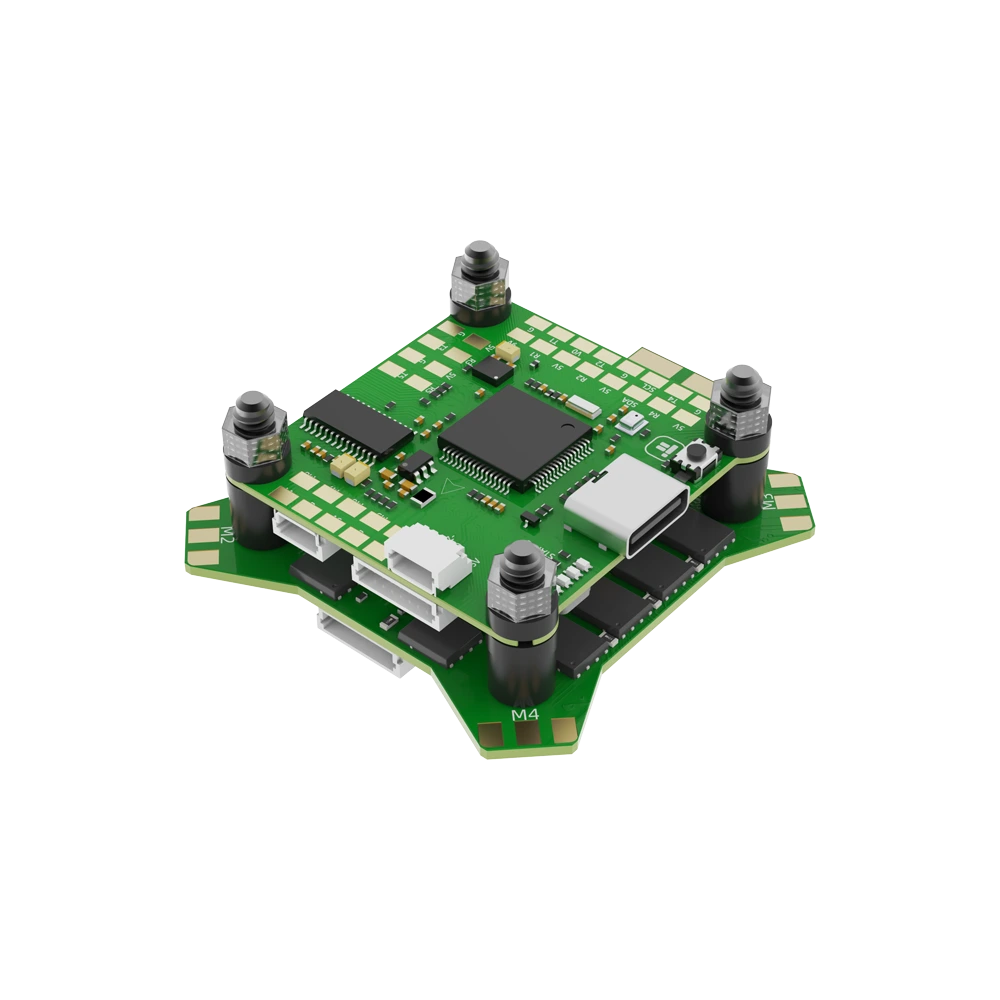

BLITZ F7 E55 4-IN-1 Flight Tower System

Features

- Improved circuit design, better components and lower electrical noise
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- With LC filter

Specifications

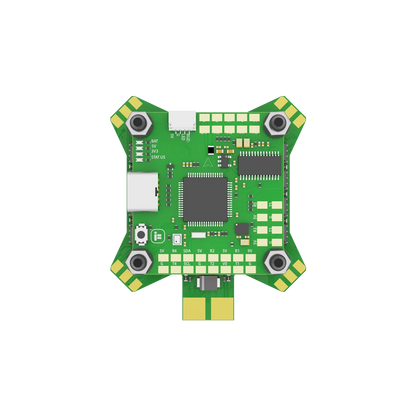

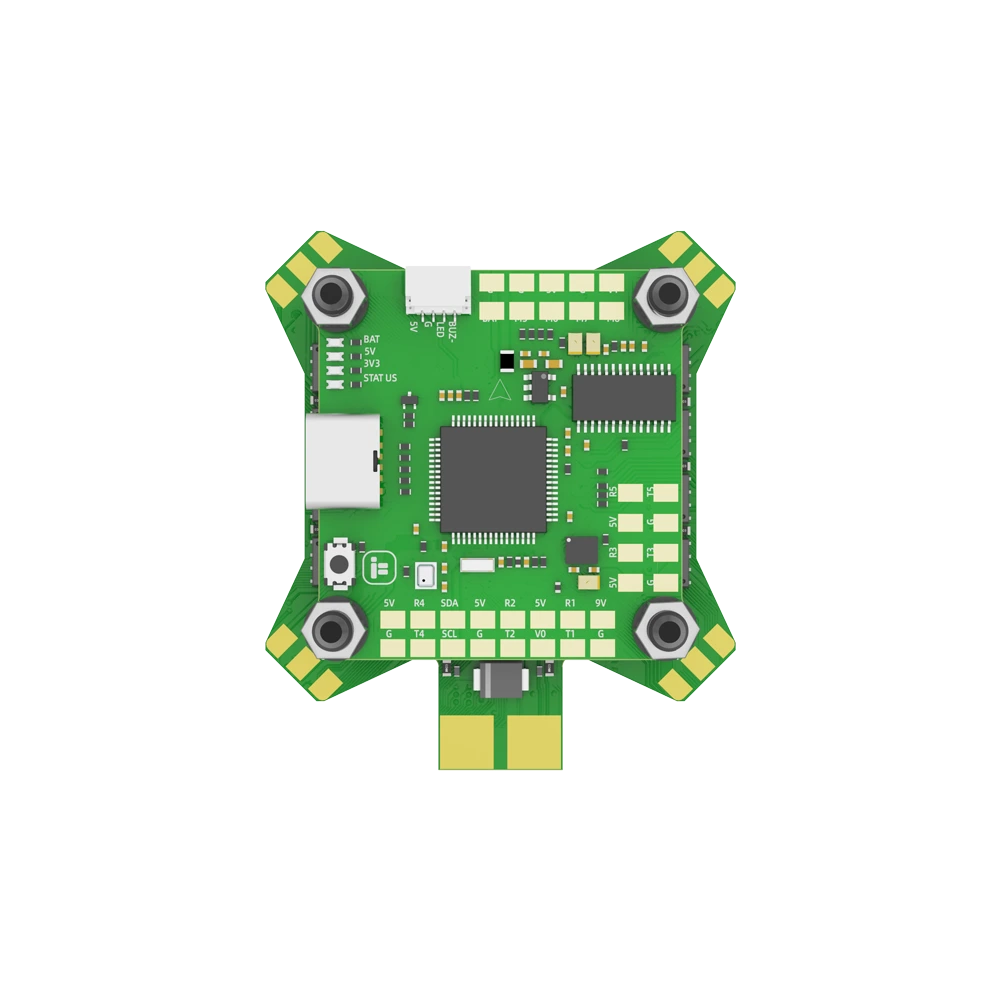

FC:
MCU: STM32 F722
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A

Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

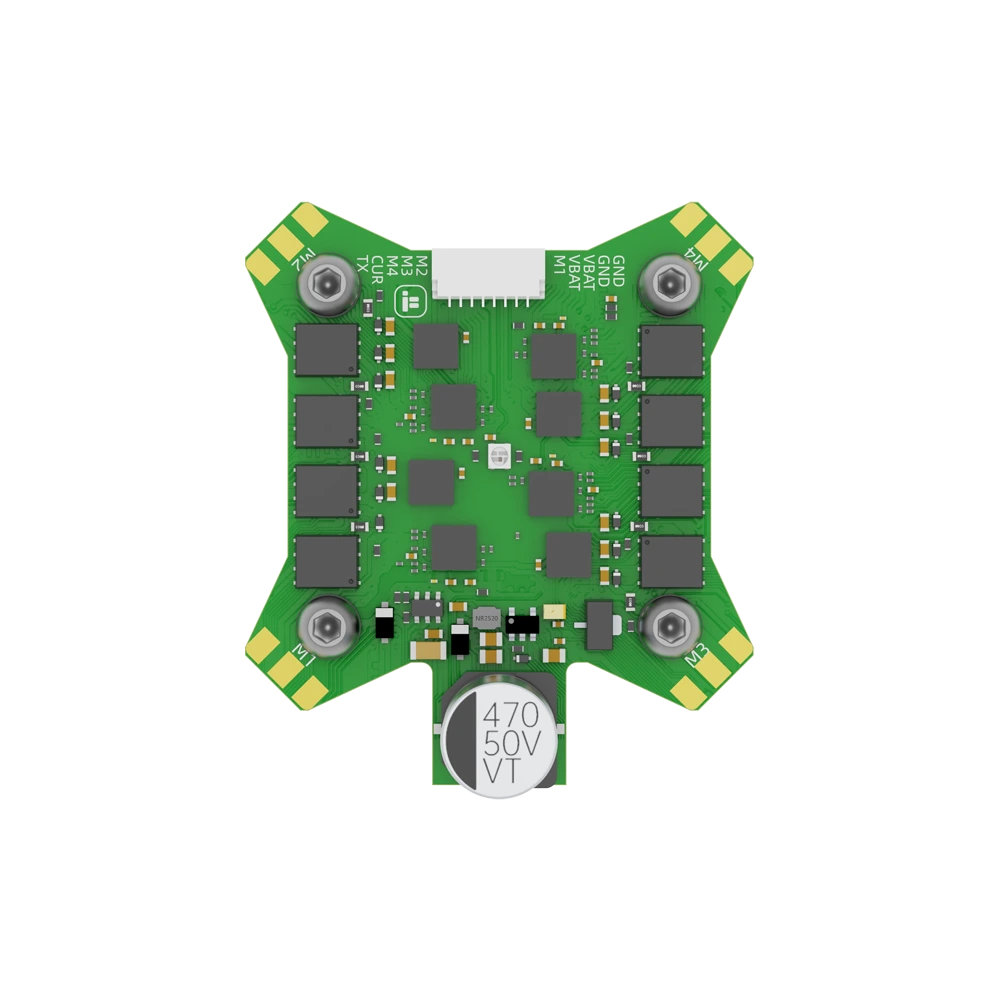

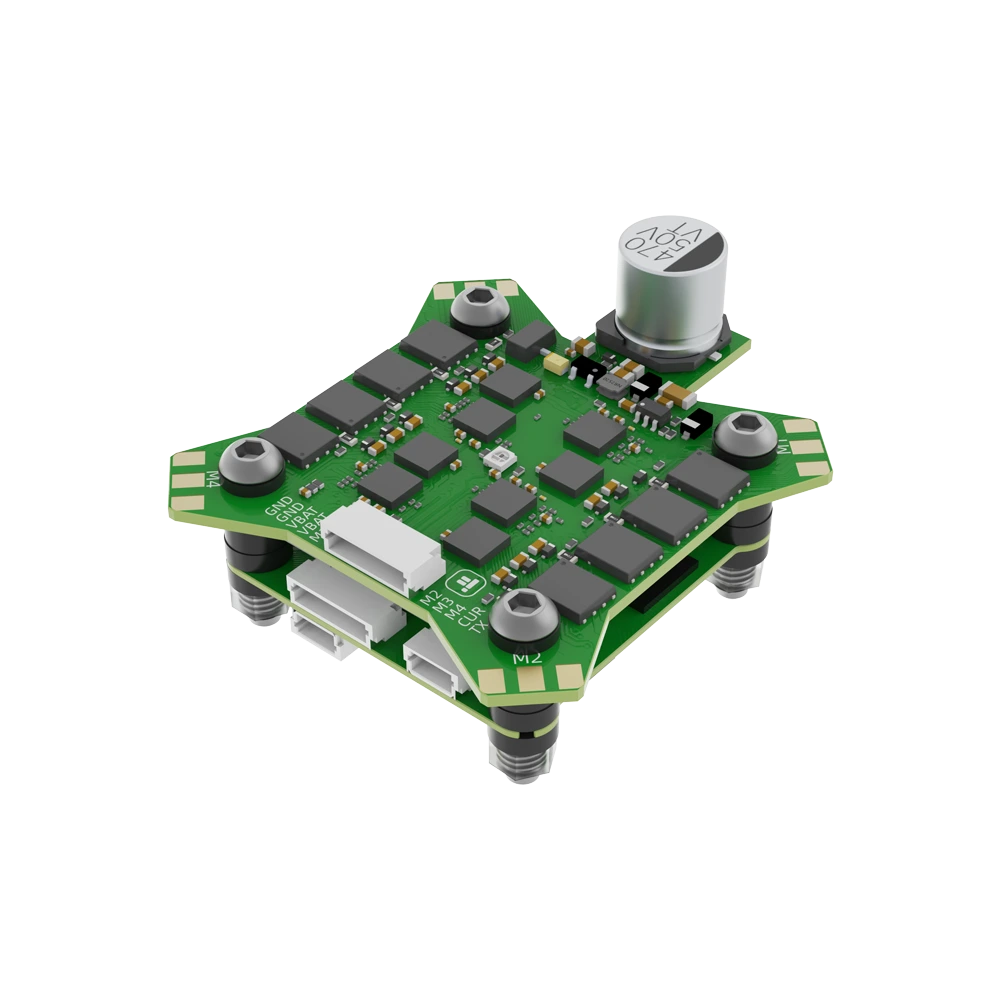

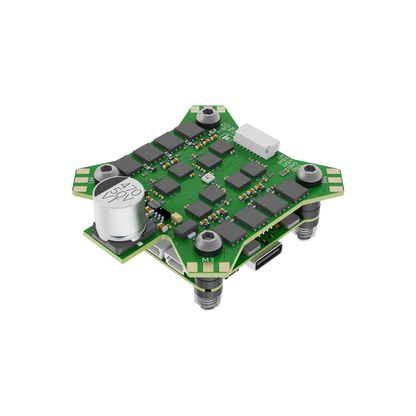

ESC:
Mounting Holes: 30.5*30.5mm/Φ4mm
Weight: 15.3g
Supports 2-6S lipo input
MCU: G071
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: IFLIGHT_BLITZ_G3 32.9
