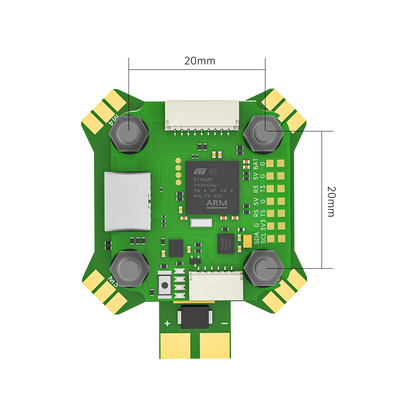

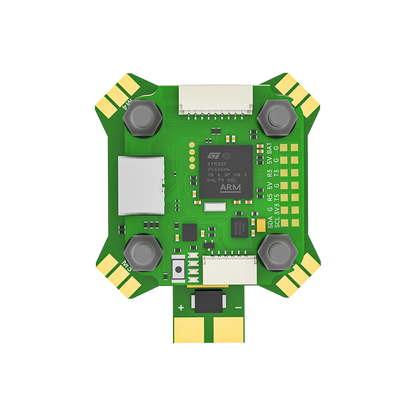

Stack iFlight BLITZ Mini F745 (E55 Mini 4-IN-1 ESC)

Name: Stack iFlight BLITZ Mini F745 (E55 Mini 4-IN-1 ESC)
Brand: iFlight
SKU: BF15682
Price: 142.95 EUR
Availability: InStock

Stack iFlight BLITZ Mini F745 (E55 Mini 4-IN-1 ESC)

€142,95 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Shipping time:

6-8 working days

BLITZ Mini F745 Stack (E55 Mini 4-IN-1ESC)

Features:

- Improved circuit design, better components, and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- Support Betaflight, INAV, Ardupilot firmware

Specifications

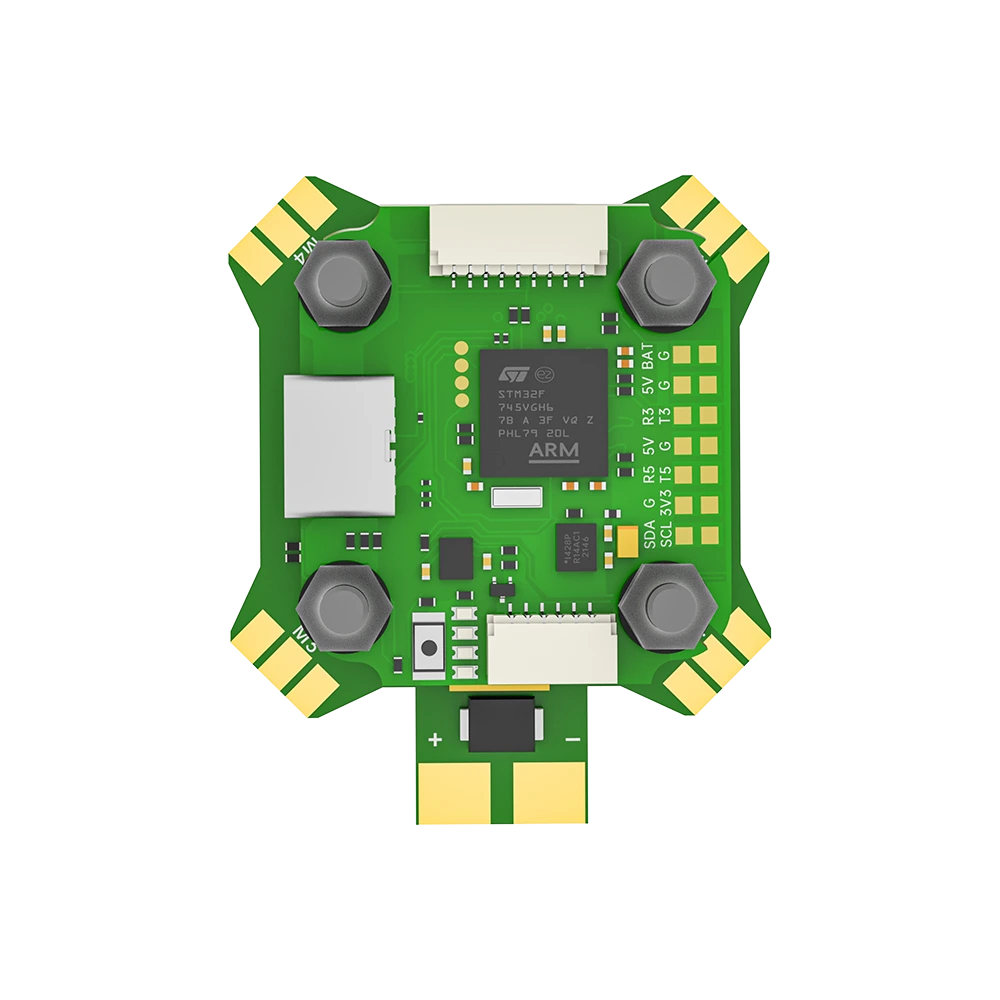

FC Specifications
MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27 mm
Weight: 4.8g
BEC: 5V 2.5A / 9V 2A
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware: arduplane_with_bl

Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

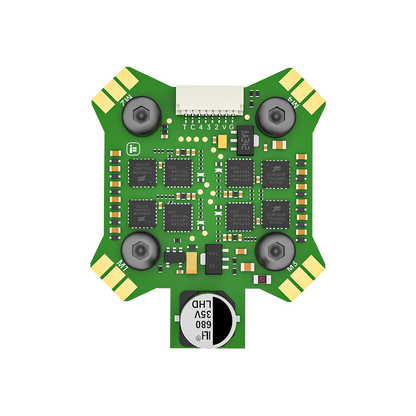

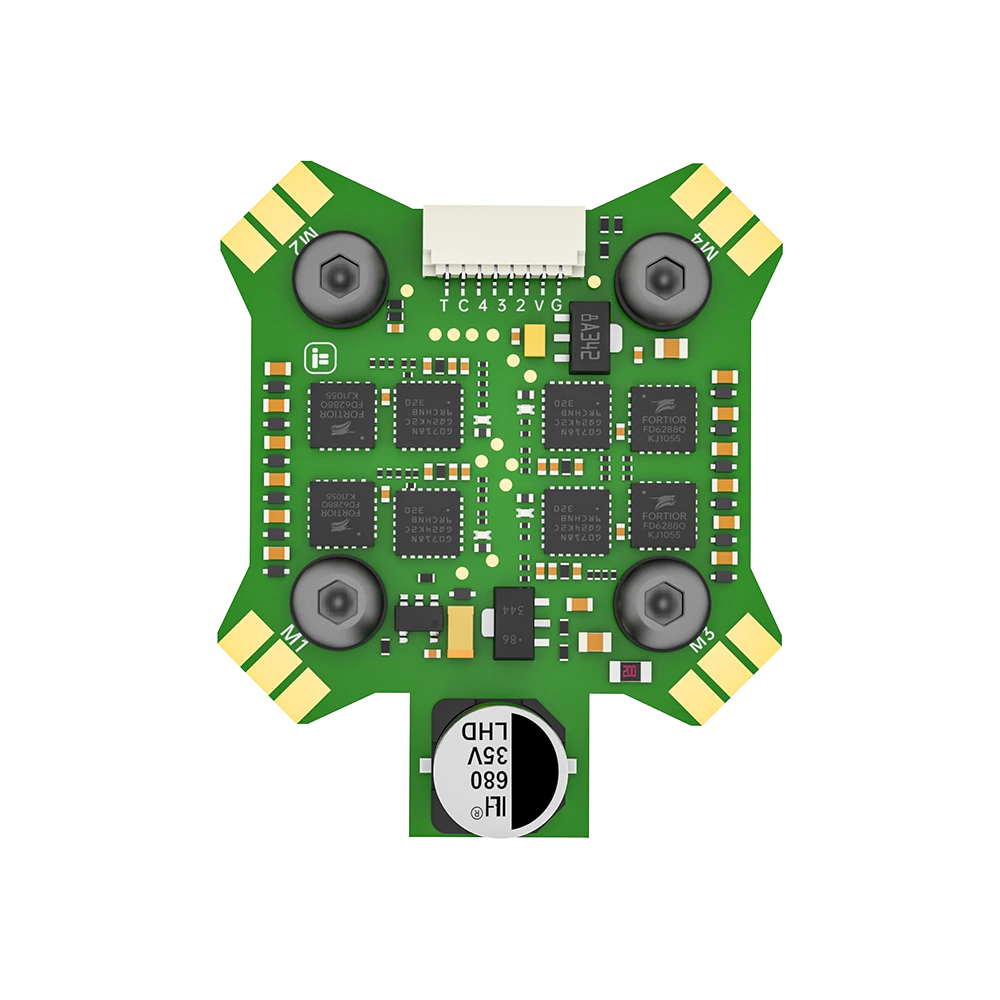

ESC Specifications
Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S Lipo input
MCU: G071
Constant: 55 Amps
Burst: 60 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G071_01 32.9/ IFLIGHT BILTZ G2 32.9
