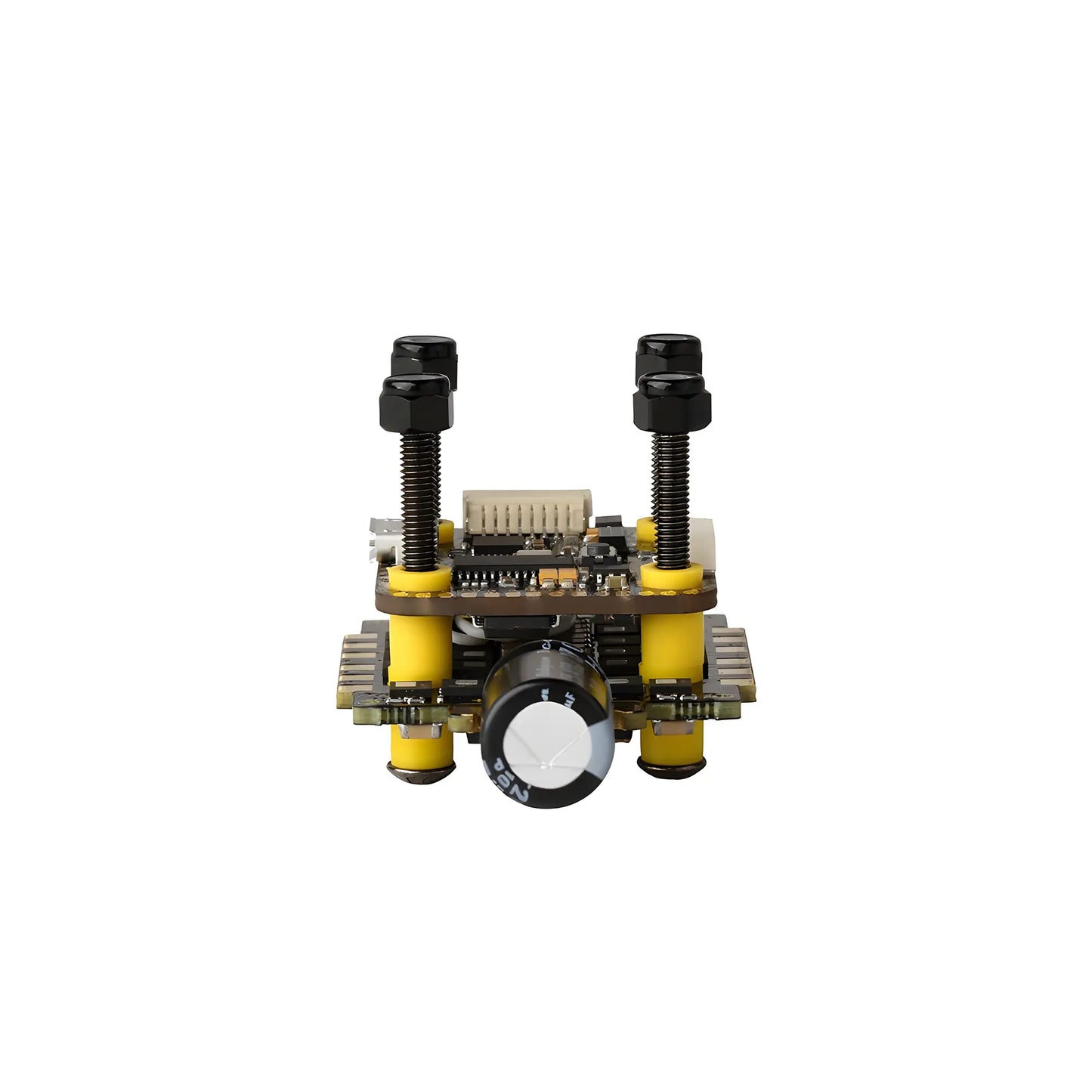

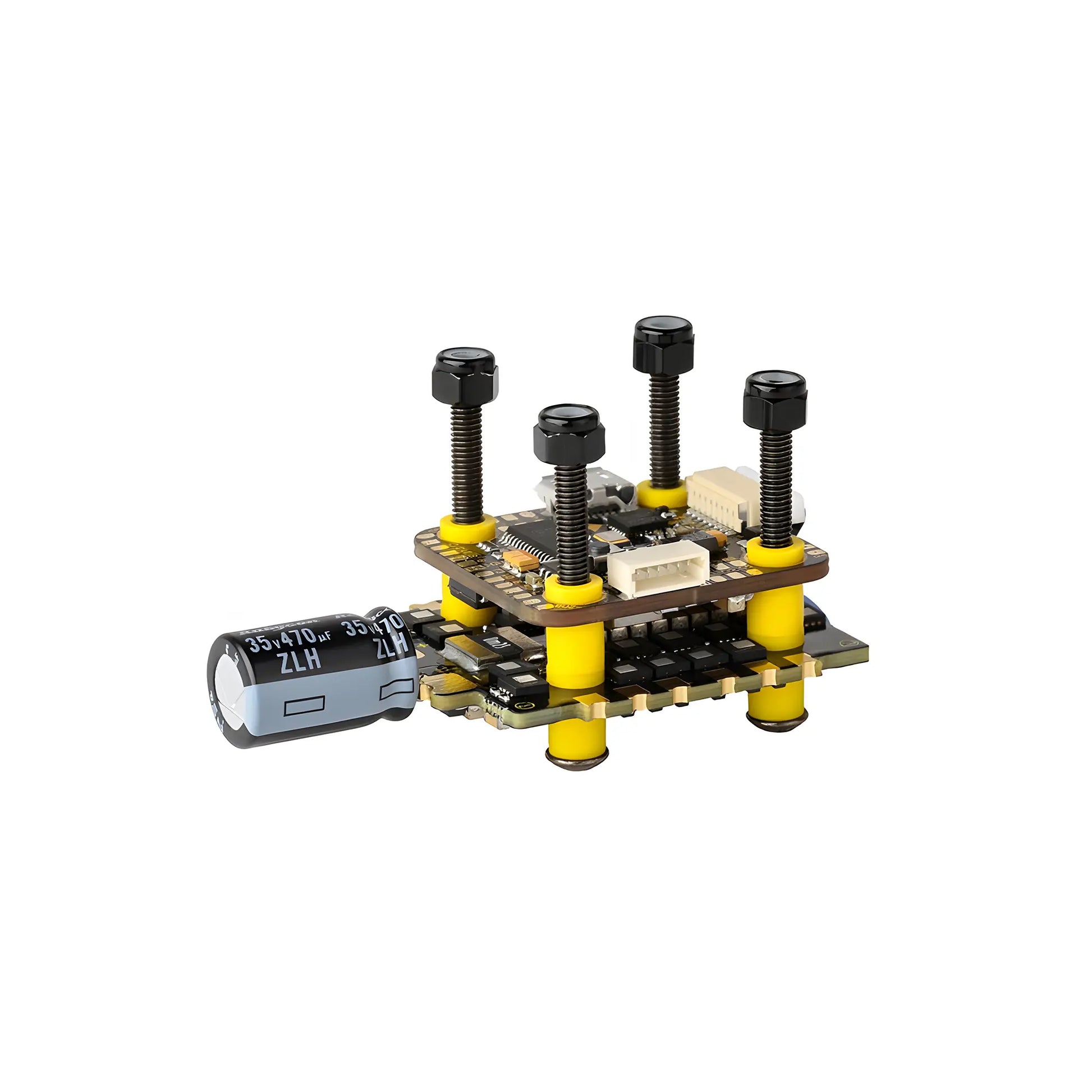

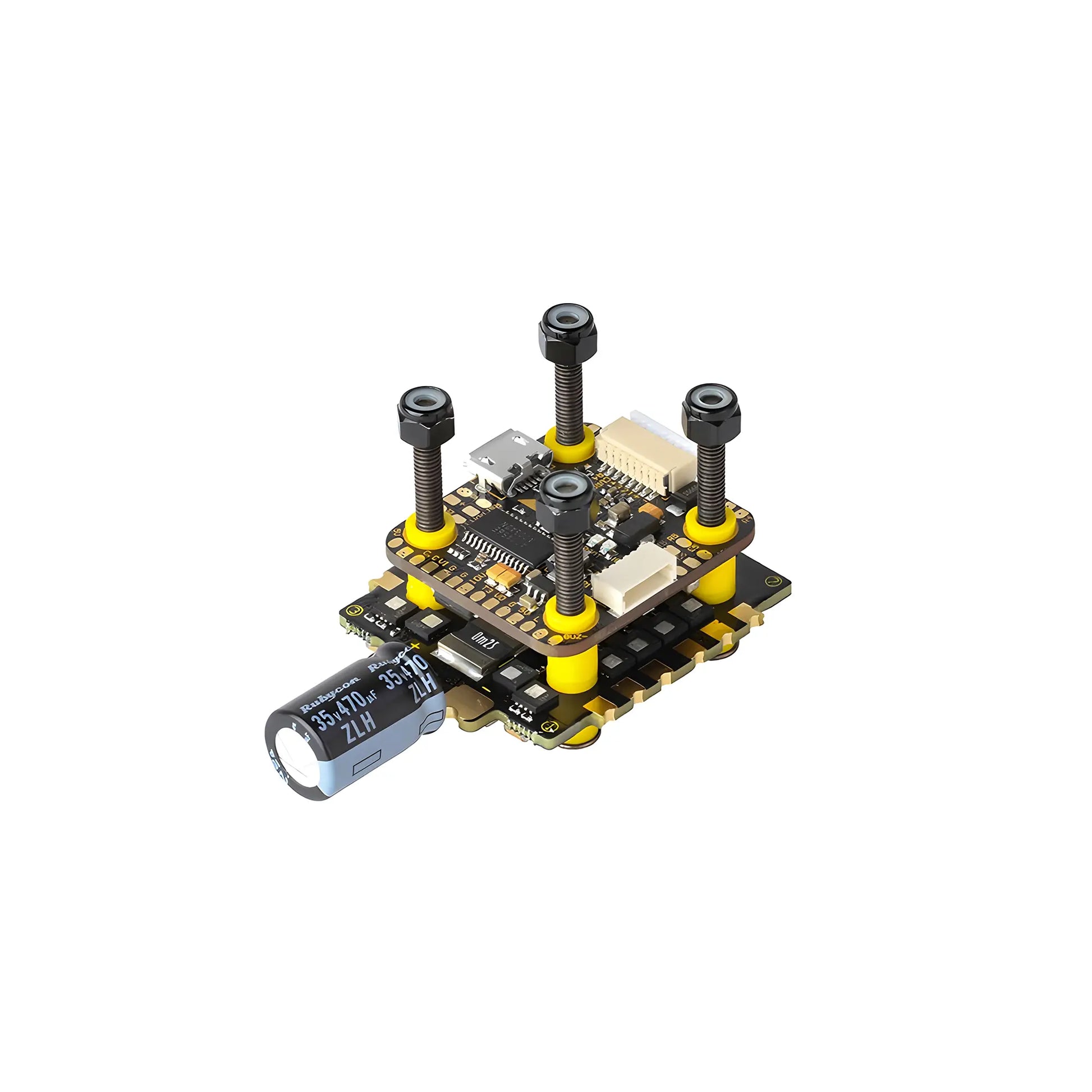

T-Motor Mini F45A & Mini F7 Stack

Get a better flying experience with the TMOTOR Mini F45 + Mini F7 stack!

This FPV stack brings lots of power all in a small package!

The TMOTOR Mini F7 20×20 Flight Controller can be connected to the DJI Digital HD FPV System,

and combined with the Mini 45A 4-in-1 high-performance 32-BIT ESC you will have a fantastic flying experience!

Specifications

Mini F7 Flight Controller

Input Voltage: 3~6s
BEC: 5v/2A, 10V/2A (For DJI HD VTX)
Main Control：STM32F722
Gyroscope: MPU6000
RAM: Onboard 16M
OSD: Support
Barometer: No
Mounting pitch: 20*20mm
Weight: 5.1g
Firmware: TMOTORF7 (STM32F7X2)

Mini F45A 4IN1 ESC

Input Voltage: 3~6S
ESC Firmware: BLHeli32
Telemetry: Support
Mounting pitch: 20*20mm
Weight: 9.2g
Betaflight galvanometer ratio: 200

Includes:

1 x  Mini F7 Flight Controller
1 x Mini F45A 4IN1 ESC
1 x Parts
