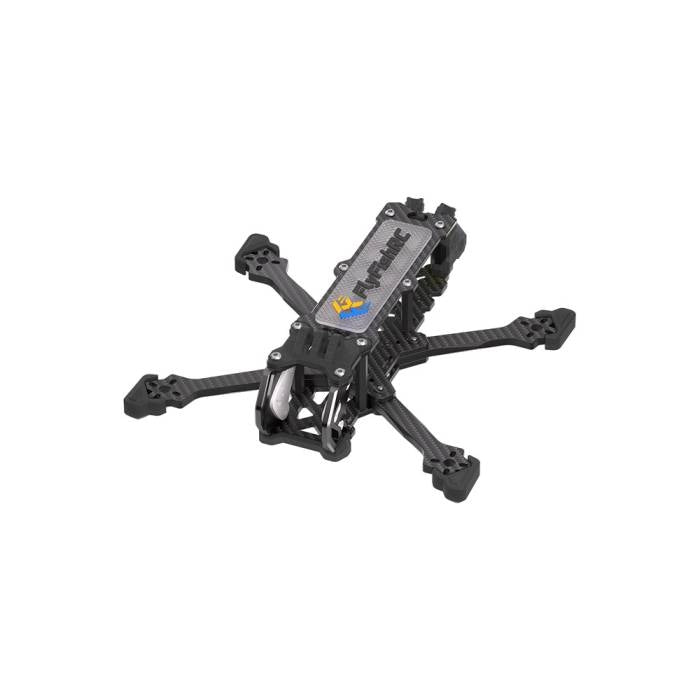

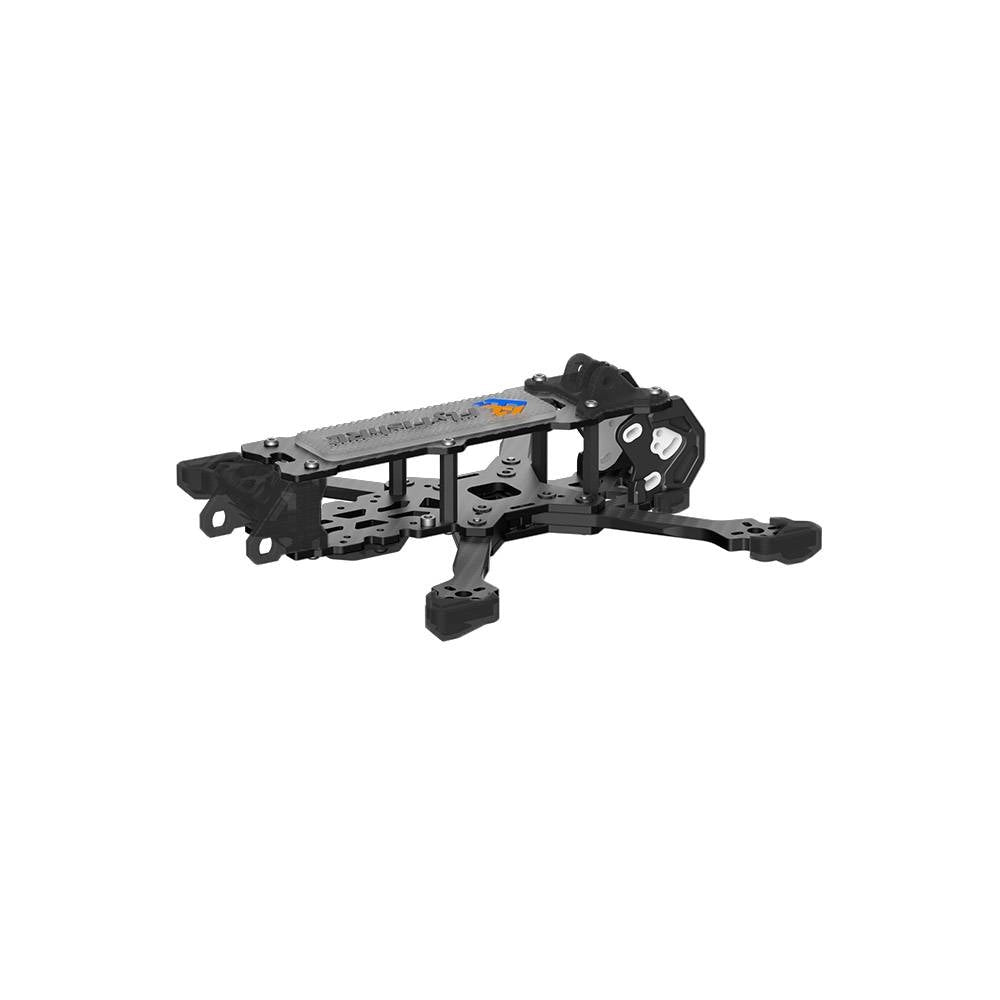

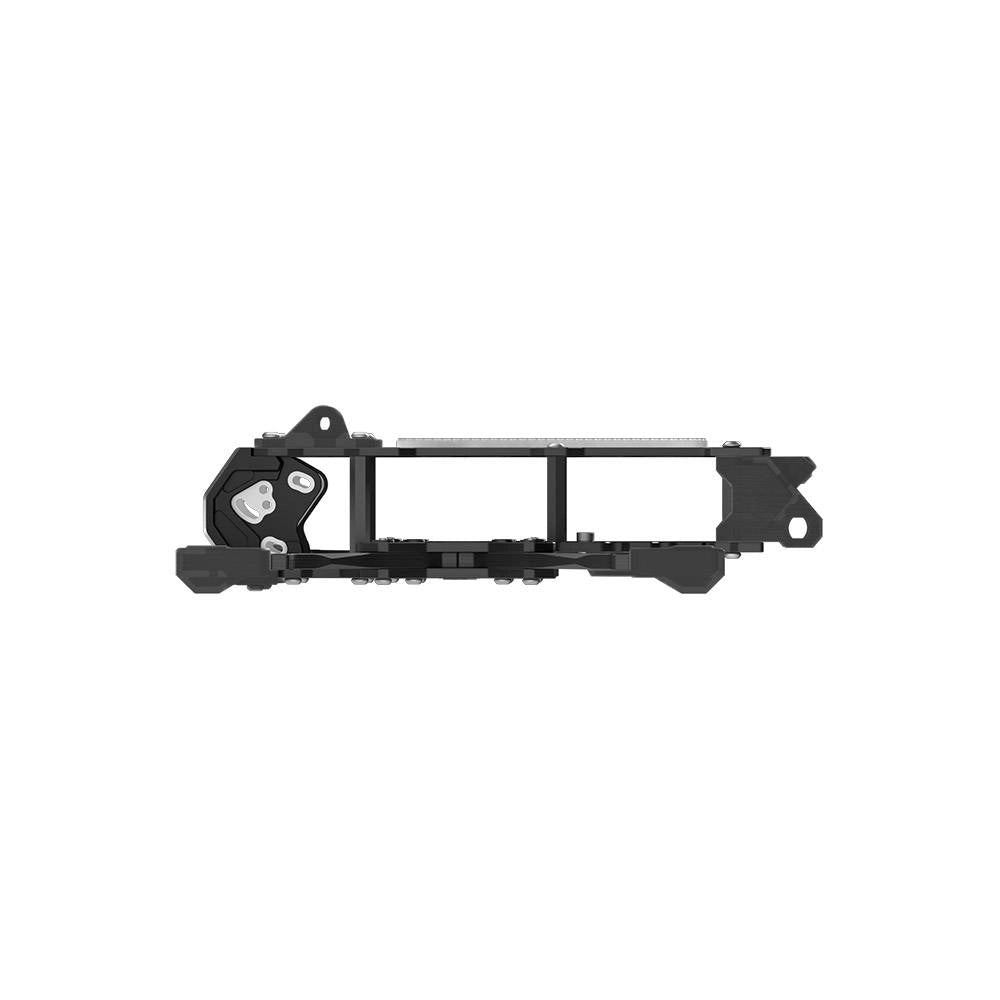

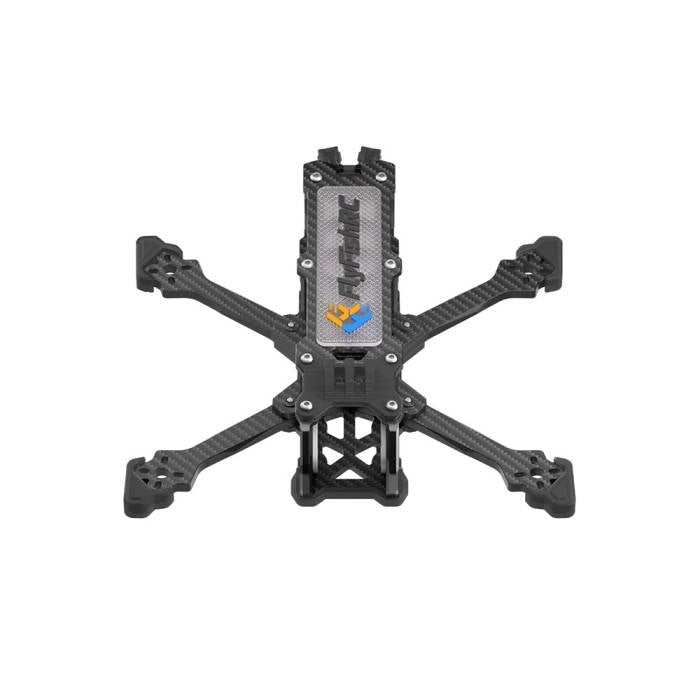

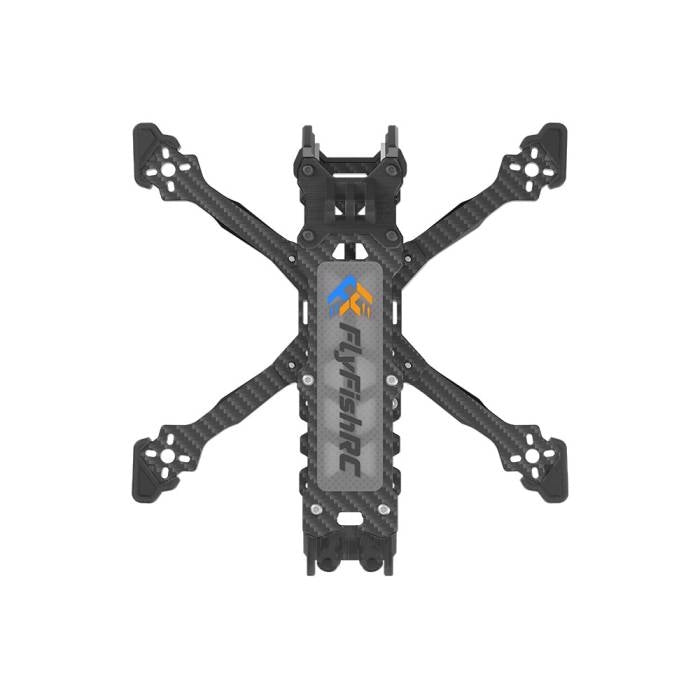

Introducing the FlyfishRC Volador VX3 frame Kit—Compact yet powerful design that delivers a true 5-inch flight experience in a smaller footprint. Featuring a Squashed X layout for precise control and DJI O4 Pro system compatibility, these frames are built with premium T700 carbon fiber and CNC aluminum for durability and sleek aesthetics.
Features
Supports DJI O4 Pro
Reinforced, thickened arm design for improved impact resistance
Grade 12.9 hardware pre-coated with Loctite for extra reliability
Precision-molded TPU components for a clean, integrated build
Premium T700 carbon fiber plates for strength and durability
7075 aluminum alloy camera mounts for added protection
Custom anti-slip battery pad for secure battery placement
Specifications
Arm Thickness: 3.5mm
Top plate thickness: 2mm
Middle plate thickness: 2.4mm
Bottom plate thickness: 2.4mm
Keystone thickness: 3.5mm
CNC Side plate thickness: 5mm
Propeller size: 3 inch
Material: T700 carbon plate
FPV cam spacing: 19mm/20mm
VX3 Weight: 68.3g(with TPU parts)
Color: Black
VX3 Total Dimensions:118mm*135mm
Wheelbase:144mm
Stack mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
Includes
1x FlyFishRC Volador VX3 3'' O4 Pro Frame Kit - Black
