Walksnail Ascent Lite HD Kit
Walksnail Ascent Lite HD Kit
Couldn't load pickup availability
7-8 working days
HD Kit Walksnail Ascent Lite
The Walksnail Ascent Lite HD Kit is an ultra-light digital FPV solution designed for smooth, responsive, and immersive flying. Combining low latency, HD video quality, and efficient power consumption, this kit is an excellent entry point into digital FPV for beginners, DIY builders, and pilots upgrading from analog systems.
Features:
- Ultra-lightweight design helps reduce overall drone load for improved agility and flight efficiency.
- Low power consumption extends flight time compared to similar digital VTX units.
- HD digital video output provides clear and smooth FPV visuals.
- Low latency transmission ensures responsive real-time control during fast maneuvers.
- Ultra-wide field of view delivers an immersive flying experience.
- Long-range transmission maintains stable signal over extended distances.
- Adjustable output power allows flexible use for indoor or outdoor flying.
- Wide compatibility with popular flight controllers and firmware simplifies installation.
- Excellent value choice for beginners entering digital FPV or DIY builders.
Specifications
Communication Frequency : 5.730-5.815 GHz
Transmit Power (EIRP) : FCC/SRRC:<20dBm; CE:<14dBm
Channels : 3
Weight : 6g (Antenna not included)
Mounting Hole : 25mm
Ratio : 16/9
Resolution : 1080P/ 60fps, 720P/ 60fps
Image Sensor : 1/2.8 inch
Operating Bandwidth : 5M/ 10M/ 20M/ Auto
Antenna : 1(Ipex-1)
End-to-End Latency : Average latency 35ms
OSD : Canvas mode
Bitrate : 25mbps
Supported FC Systems : Betaflight; Inav; Fettec, Kiss, ArduPilot
Wide Voltage Input : 3V~12.6V
I/O Interface : JST1.0*4 (Power cord); HSG0.8*5(USB)
Dimensions camera : 14*12*15mm (nano format)
Dimensions VTX : 30.5*30.5*3.5mm

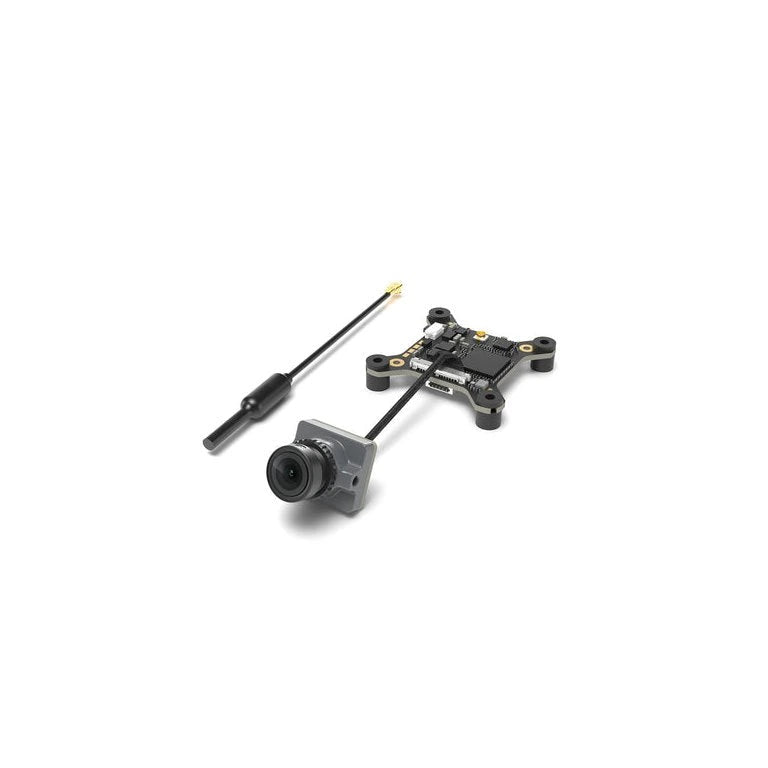

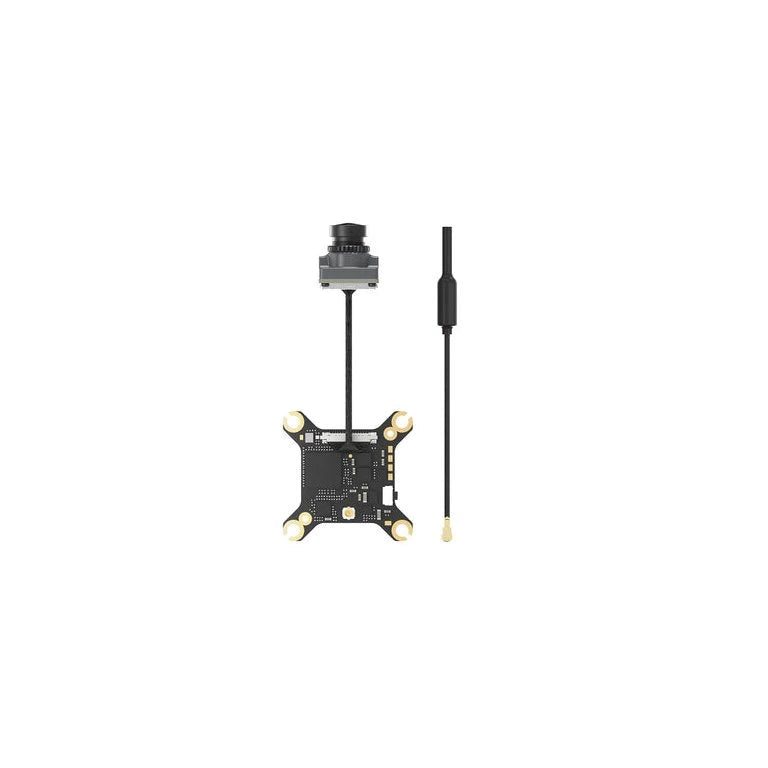

Includes

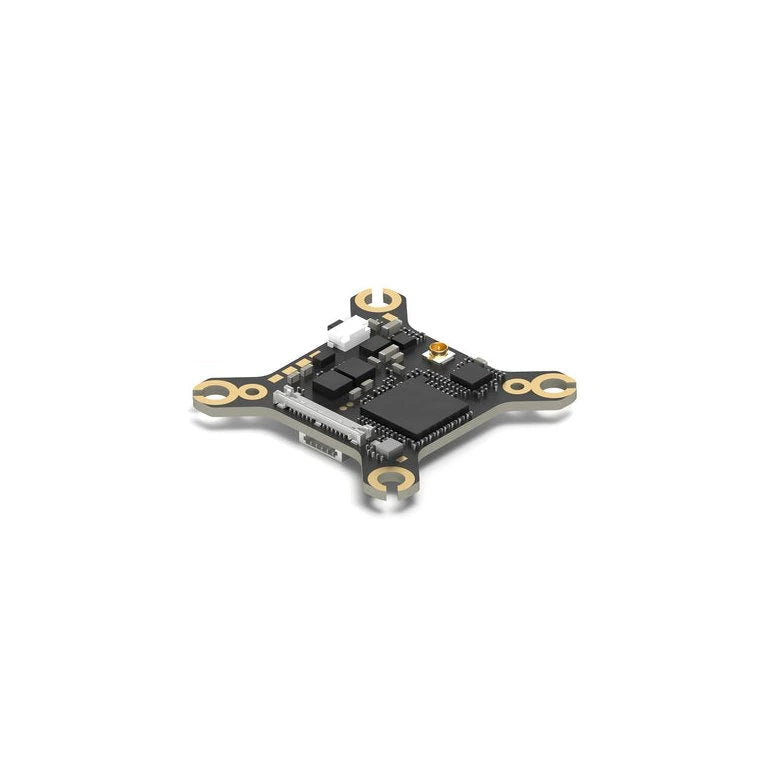

1 x Walksnail Ascent Lite VTX

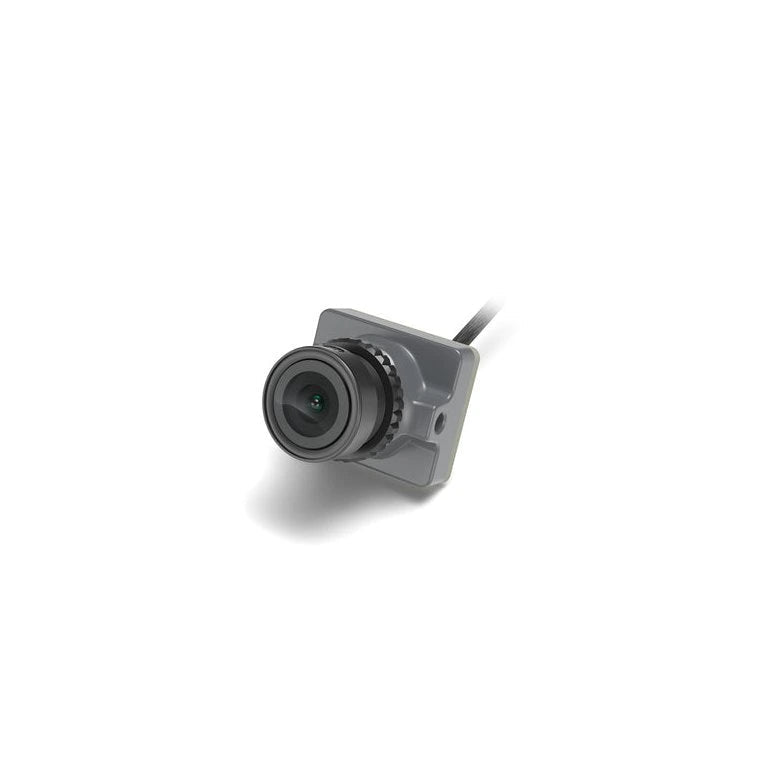

1 x Walksnail Ascent Lite Camera
1 x 70mm Antenna
1 x 90mm Coaxial Cable
