Caddx Ant 1.8mm

Caddx Ant 1.8mm

Aspect Ratio
€21,79 EUR
€21,79 EUR
Allahindlus Välja müüdud
Sisaldab käibemaksu. Saatmiskulud arvutatakse kassas.

The Caddx Ant - 1200TVL 1.8mm FPV Nano Camera (14x14) is a new generation of nano cameras. This 14x14mm ultralight budget-friendly camera only weighs 2g and supports OSD Menu, 3.7-18.V, Global WDR, NTSC or PAL, CVBS video output, and many other cool features! A unique feature about this camera is that it includes 3D DNR, which gives you a full clarity image, so there is no need to worry about your image looking grainy or noisy when flying. To fit bigger builds, you can mount the Nano into a 19mm bracket (included)

Features

  • Available in 4:3 or 16:9 camera ratio.
  • 14x14 Mounting Pattern
  • 3D DNR
Toote info

Model: Caddx Ant - 1200TVL 1.8mm FPV Nano Camera (14x14)
Electronic Shutter: PAL: 1/50~100, 000; NTSC: 1?60~1000, 000
Dimensions: 14*14mm (with a bracket to 19*19mm)
TV System: NTSC & PAL (Changeable)
Image Sensor: 1/3" CMOS Sensor
Min. Illumination: 0.001Lux@F1.2
Horizontal Resolution: 1200TVL
Work Temperature: -20C~+60C
Wide Power Input: DC 3.7-18V
S/N Radio: >52dB (AGC OFF)
Work Humidity: 20%~80%
Synchronization: Internal
Auto Gain Comtrol: Yes
Video Output: CVBS
WDR: Global WDR
Image: 16:9 or 4:3
Weight: 2g (N.W.)
Menu: Support
DNR: 3D DNR
Lens: 1.8mm
Color: Black
BLC: Yes

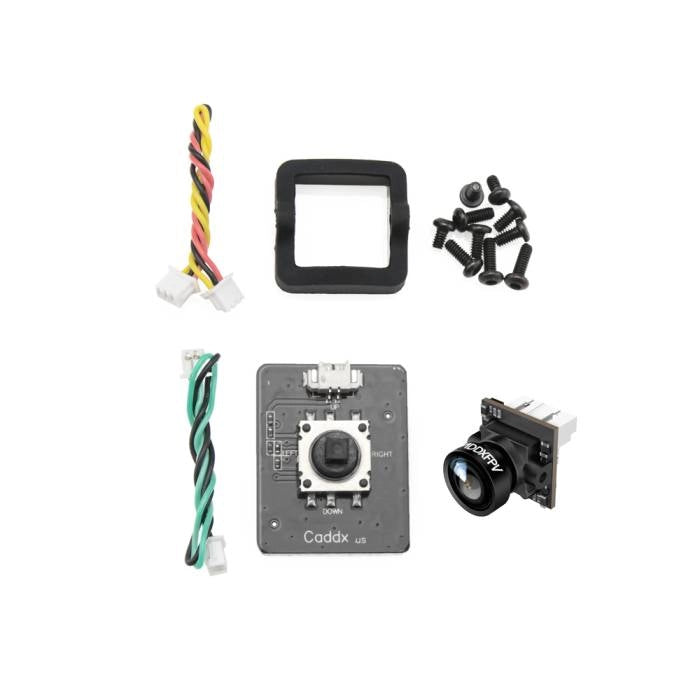

Komplektis

1 x Caddx Ant - 1200TVL 1.8mm FPV Nano Camera - 14x14 (Choose Ratio)
1 x 3pin FPV silicone cable
1 x 5D-OSD Menu Board
1 x FPV Silicone Cable
1 x Warranty card
1 x 19mm bracket
4 x Screws
