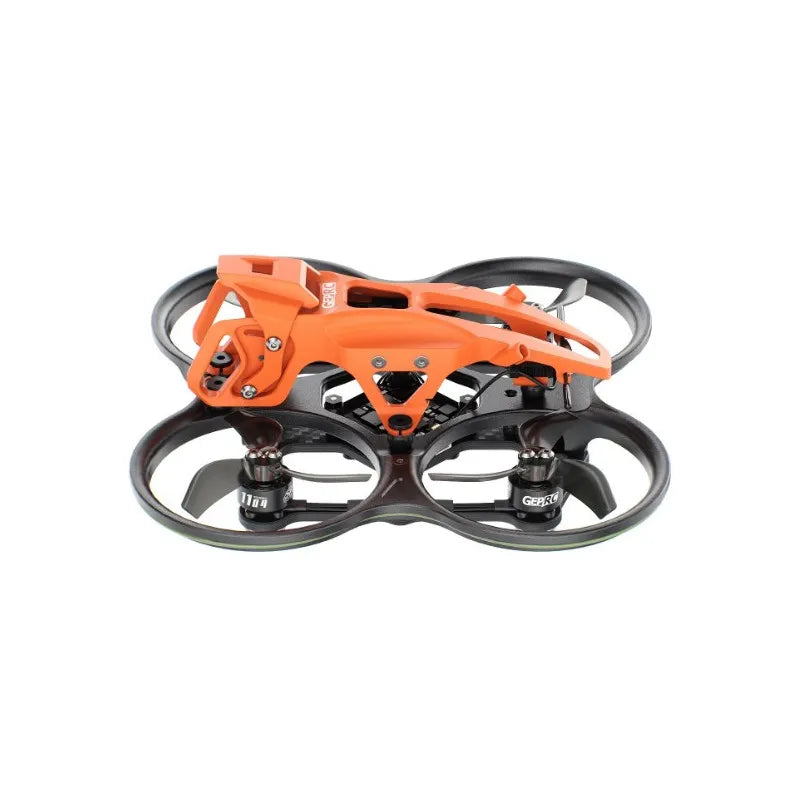

DarkStar22 CineWhoop (WTFPV)
DarkStar22 CineWhoop (WTFPV)
Järeletulemise saadavust ei õnnestunud laadida
The DarkStar22 combines high performance with portability, equipped with the DJI O4 Pro VTX system, delivering ultra-low latency, HD stable long-range transmission.
It features the latest TAKER F405 20A ELRS2.4 2-4S AIO flight controller with an integrated receiver, eliminating the need for an additional RX and ensuring compatibility with all mainstream ELRS protocol radios. The innovative five-point floating damping system provides a stable working environment for the O4 Pro gyro, enabling smooth and stabilized video output.
With a reserved GPS mount, pilots can enjoy safer flights in complex outdoor environments. The SPEEDX2 1104 7500KV motors, paired with newly designed high-efficiency 2219 props, deliver a strong punch while maintaining an excellent balance of power and endurance.
The entire build is compact, reinforced with a thickened canopy and prop guards for crash resistance, making it beginner-friendly and safe to fly both indoors and outdoors. Truly a performance beast among micro cinewhoops!
Toote info
Model: DarkStar22 WTFPV
Frame: GEP-DS22
Main Carbon Plate Thickness: 2.5mm
Wheelbase: 100mm
FC System: TAKER F405 20A ELRS2.4 2-4S AIO
MCU: STM32F405
Gyro: ICM42688-P
FC Firmware: GEPRC_TAKER_F405 AIO
Flash: 16MB
ESC: 8Bit 20A
Motor: SPEEDX2 1104 7500KV
Propellers: GEPRC x GEMFAN GP2219-3
Power Connector: XT30U-M
VTX: None
Camera: None
Antenna: None
Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G
Weight (ELRS 2.4G version): 98.0g
Recommended Battery: GEPRC Storm LiHV 3S 720mAh
Komplektis
1x DarkStar22 Drone
1x Prop Guard
1x Top Plate
1x Camera Cover
1x Battery Pad
2x Propellers (pairs)
1x 10*120mm Battery Strap
1x L-shaped Hex Wrench 1.5mm
1x Battery Anti-slip Pad
1x Damping Ball Punch Tool
1x Binding Pin
1x USB Adapter Board
1x 5P Terminal Cable
1x Hardware set
