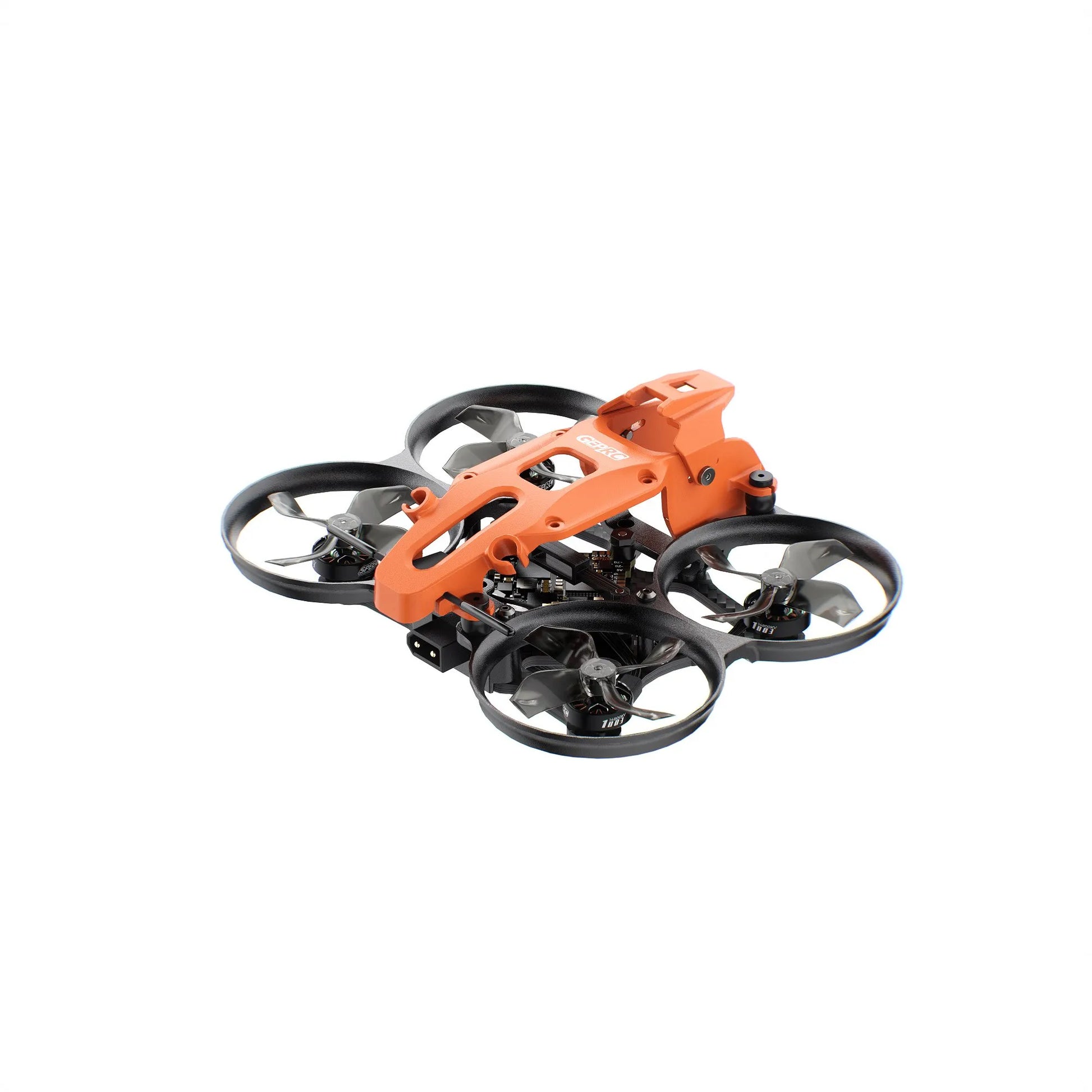

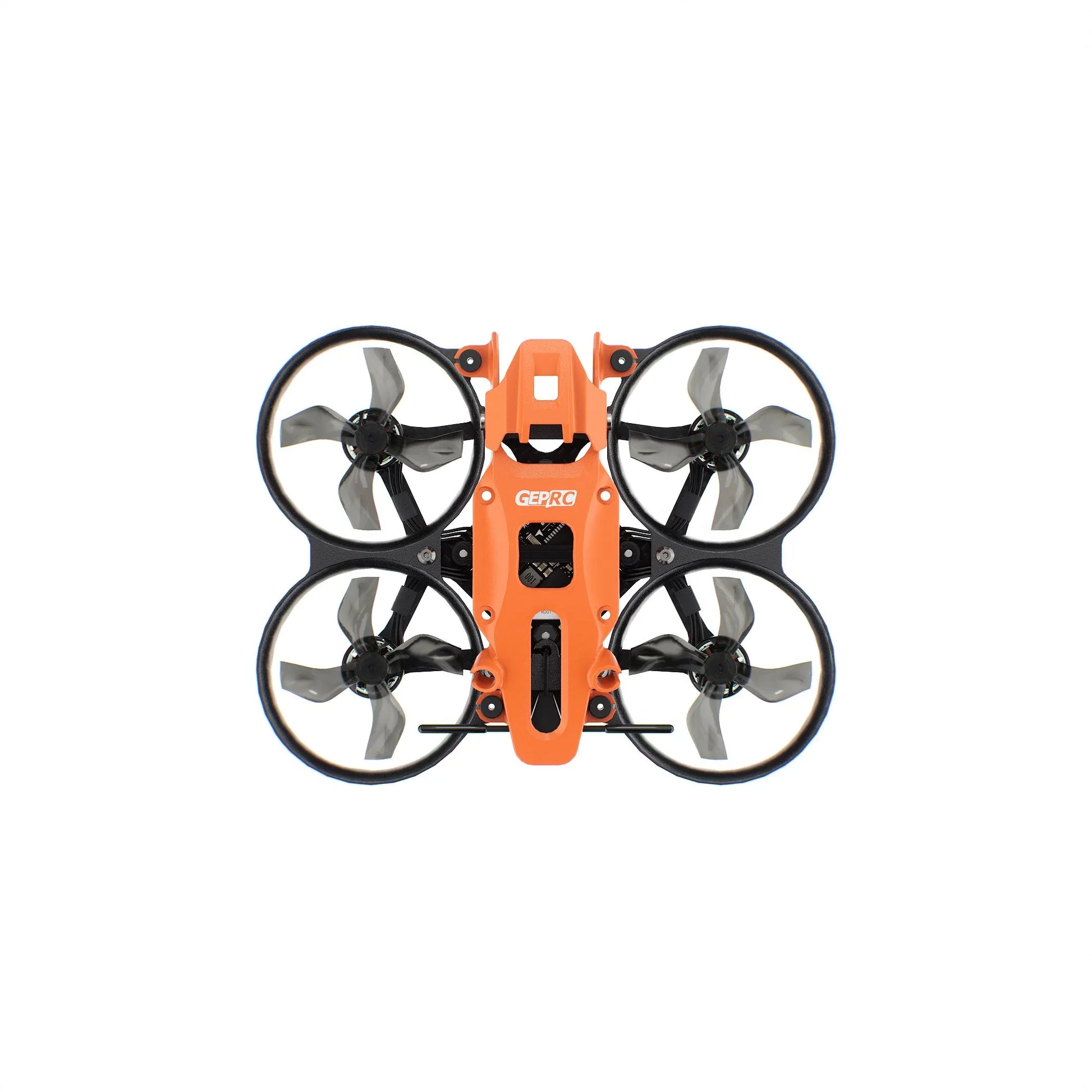

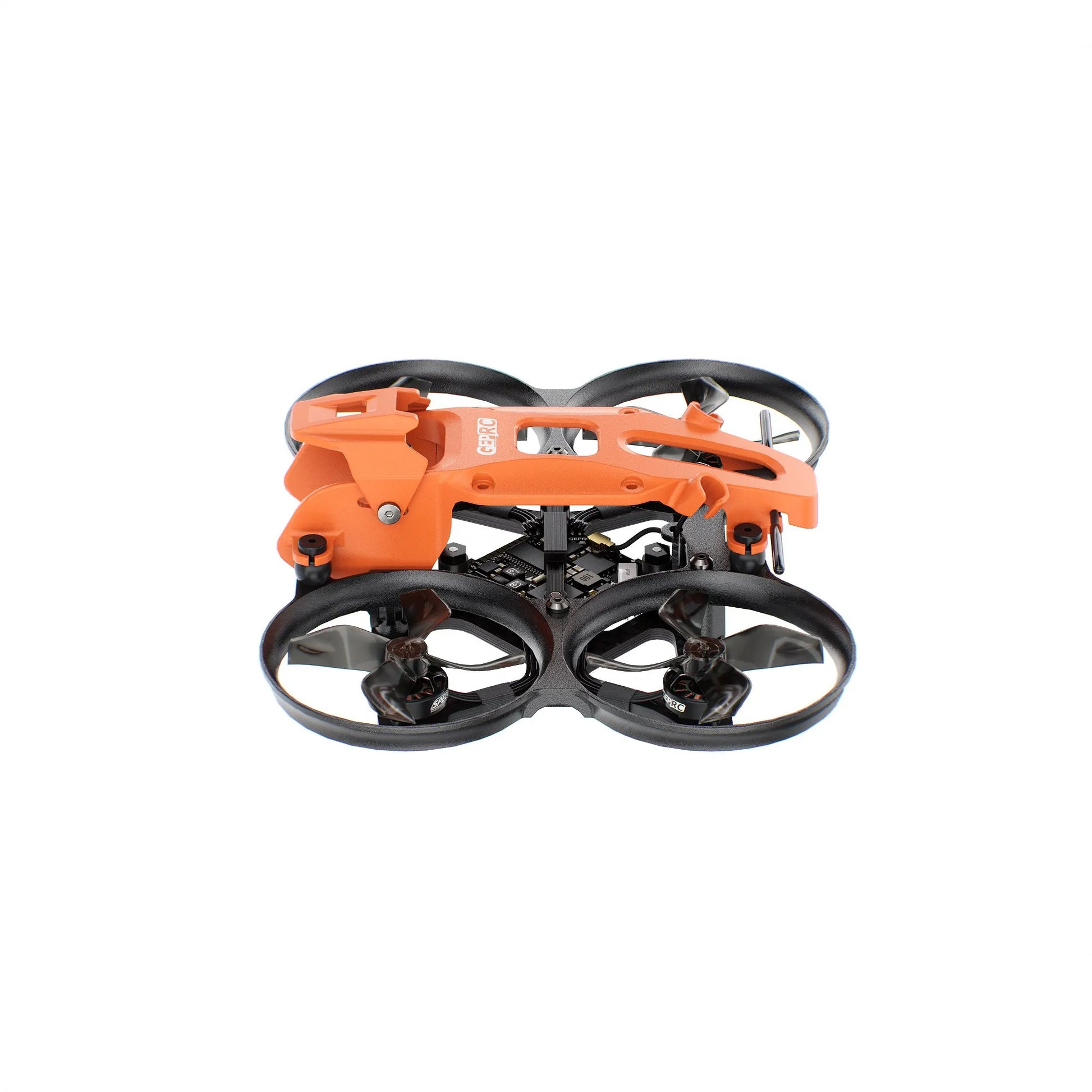

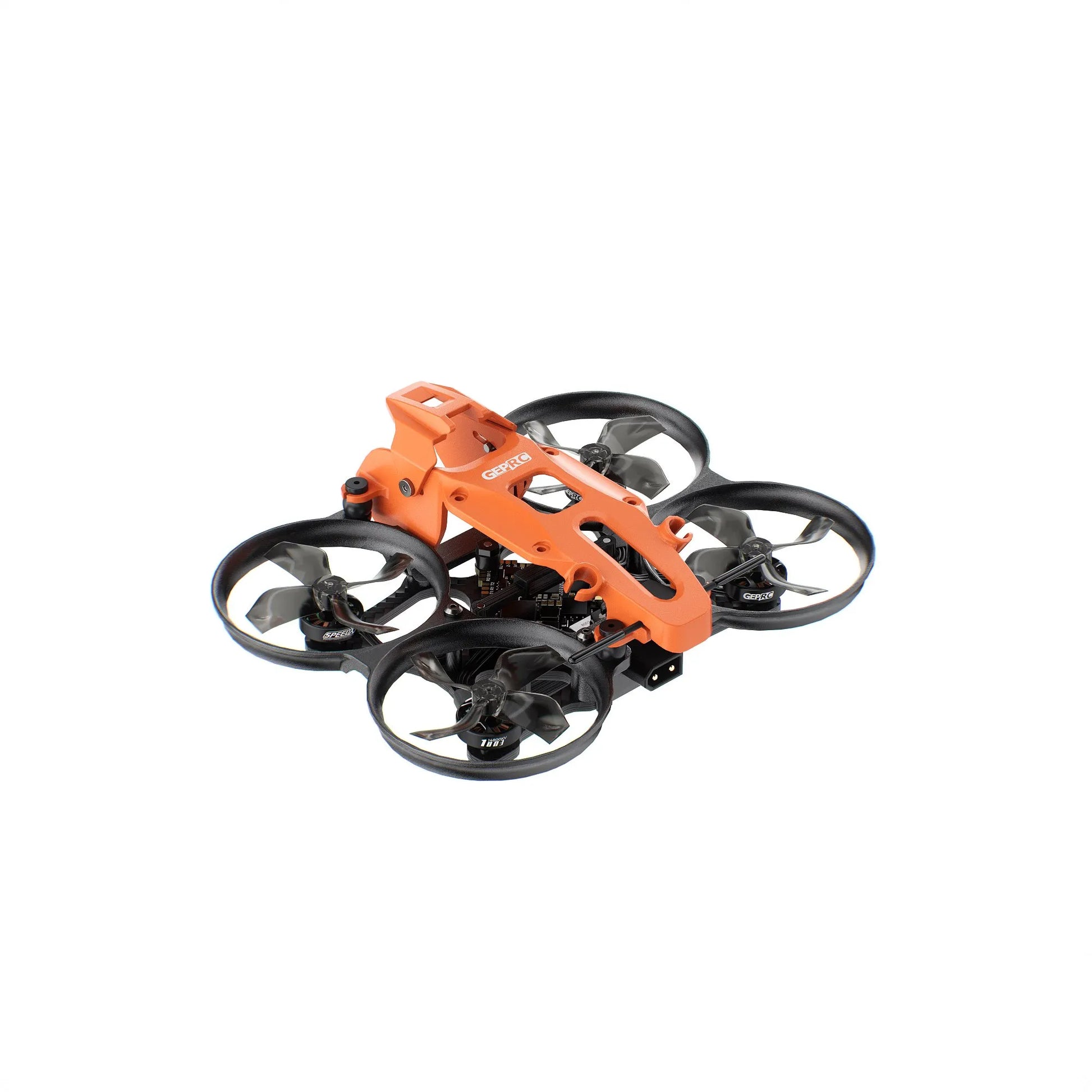

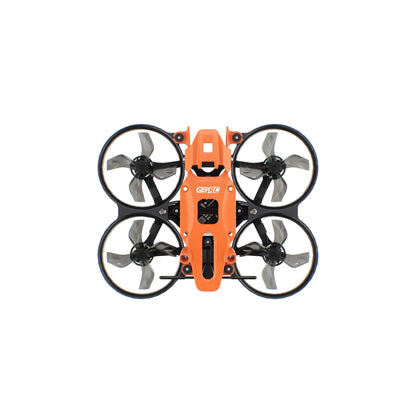

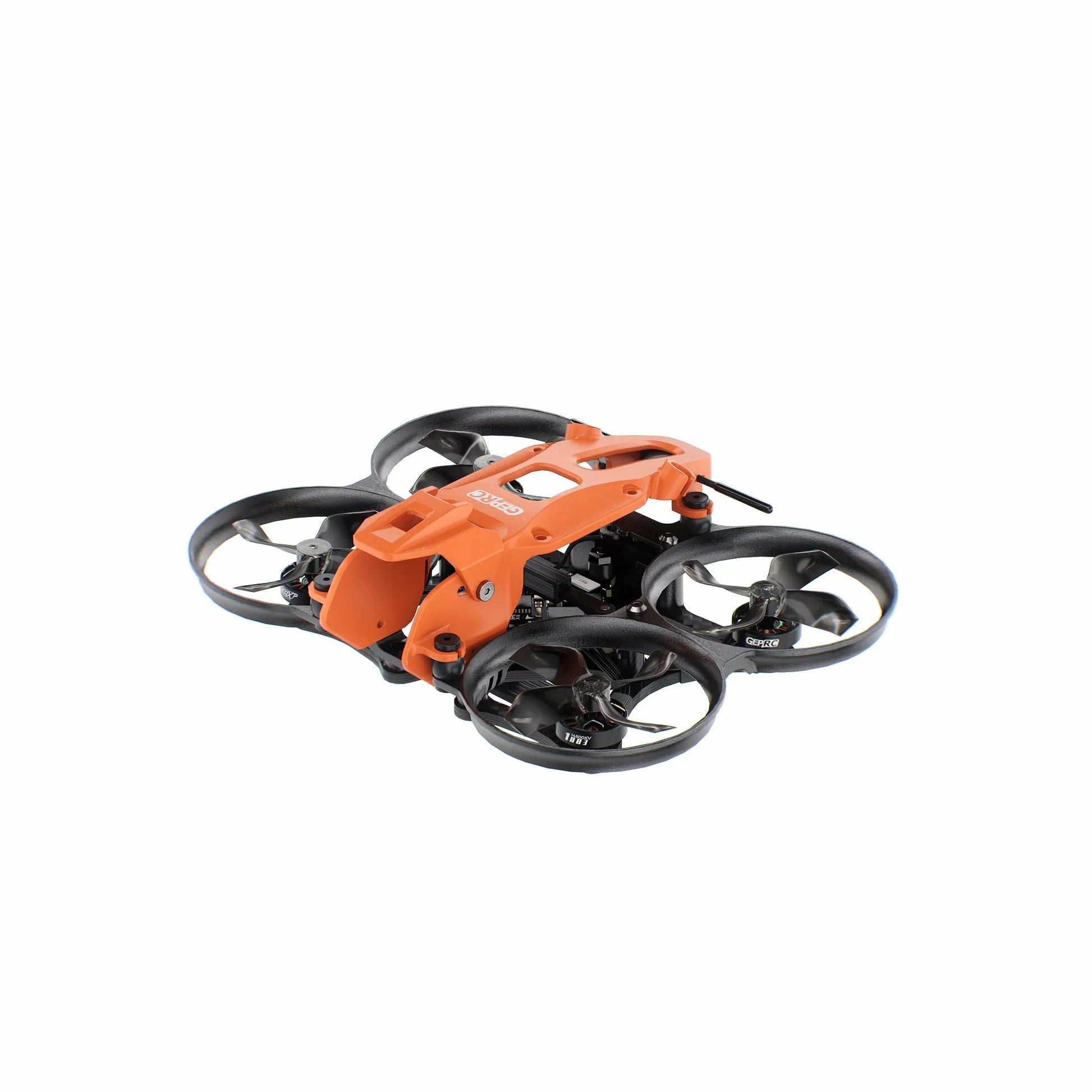

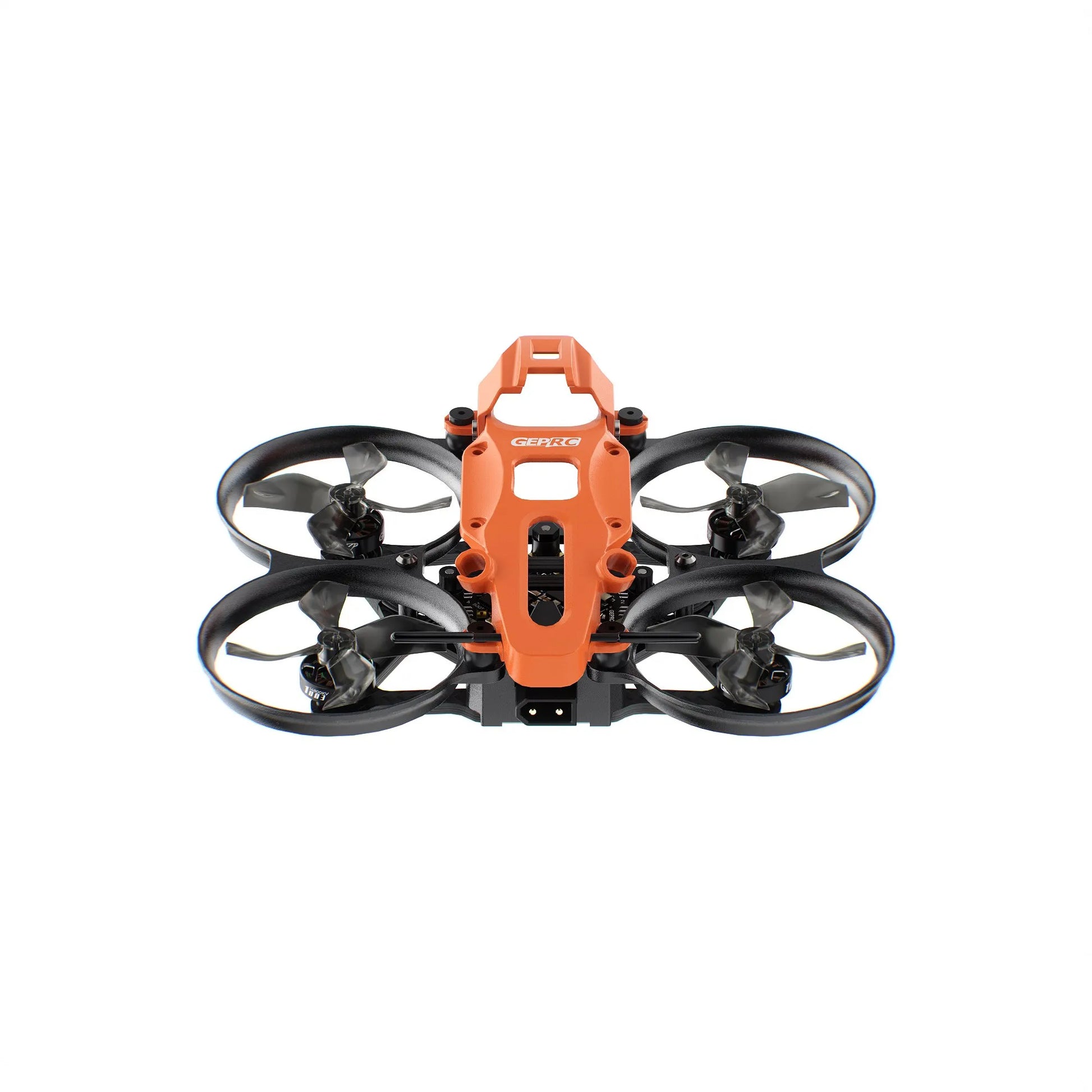

GEPRC DarkStar16 TinyWhoop

The Darkstar16 is GEPRC’s latest TinyWhoop, designed for flexible, on-the-go flying.

Featuring a 1.6-inch frame and the DJI O4 Air Unit Pro system, it comes equipped with a larger CMOS sensor that delivers sharper, clearer images and improved low-light performance.

The modular VTX, combined with an integrated top cover and four-point damping ball system, effectively filtering out resonances and reducing the jello effect in footage, ensuring stable and clear imaging.

The Darkstar16 offers a high-performance, creative flight experience.

Feature

The integrated four-point damping system ensures stable aerial imaging, empowering limitless creativity.
Quick-release design lets you detach the VTX module by removing just 6 screws.
Equipped with the DJI O4 Air Unit Pro, featuring a larger CMOS for clearer images and better low-light performance.
Lightweight molding strikes a balance between durability and performance.
The compact 1.6-inch frame offers portability for efficient filming.
The fixed XT30 power connector ensures simple on/off operation.

Specifications

Model: GEPRC DarkStar16 O4 Pro WTFPV
Frame: GEP-DS16
Wheelbase: 91mm
FC System: TAKER F411-12A-E 1-2S AIO
MCU: STM32F411CEU6
Gyro: ICM42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: Bluejay 8Bit 12A
VTX: /
Camera: /
Antenna: 5.8G UFL antenna
Motor: SPEEDX2 1003 14800KV
Propeller: Gemfan1636-4
GEPRC DarkStar16 WTFPV PNP Version Weight: 56g±5g
Receiver: PNP / ELRS2.4G
Recommended Battery: LiHV 2S 530mAh
Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

Includes

1 x GEPRC DarkStar16 O4 Pro WTFPV
1 x Darkstar16 top plate (grey）
1 x Darkstar16 camera protector (grey)
1 x Darkstar16 protective frame (black)
1 x Gemfan1636-4 (2CW+2CCW)
1 x Plum screwdriver
1 x Spare screw pack
1 x Keychain
