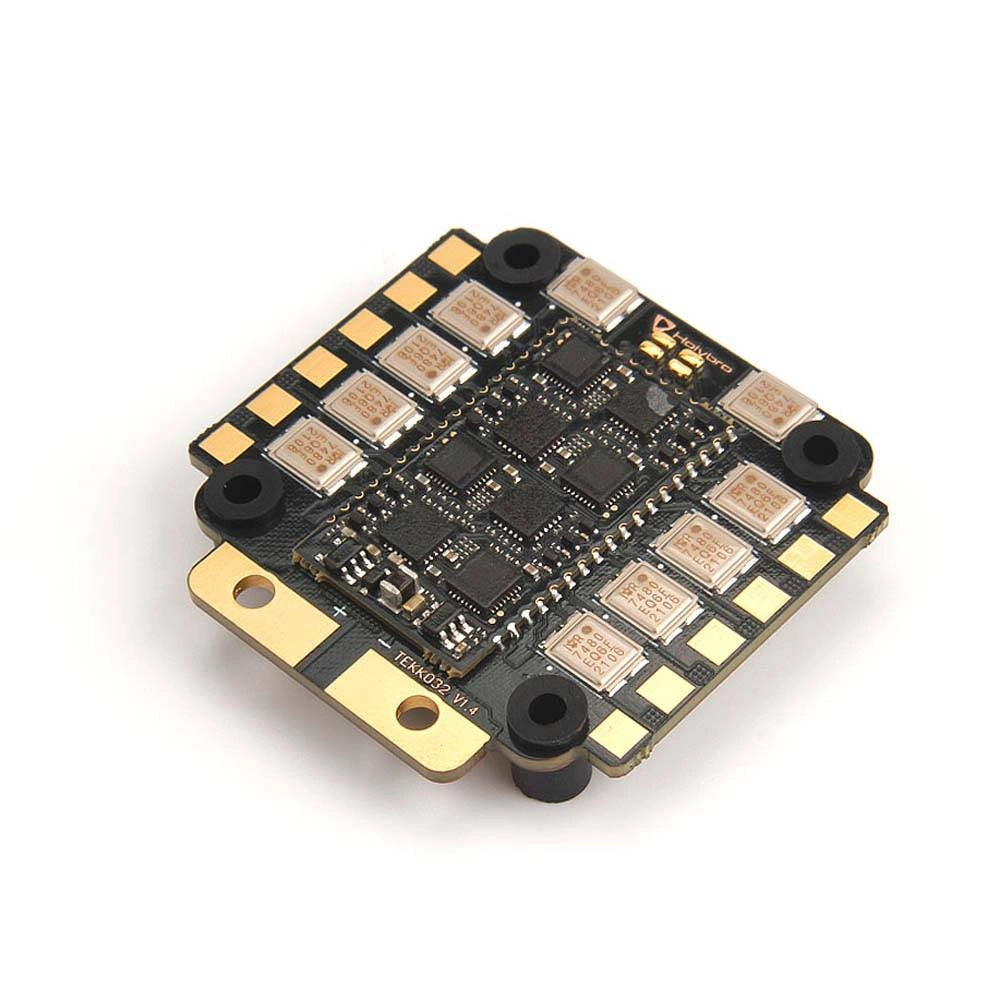

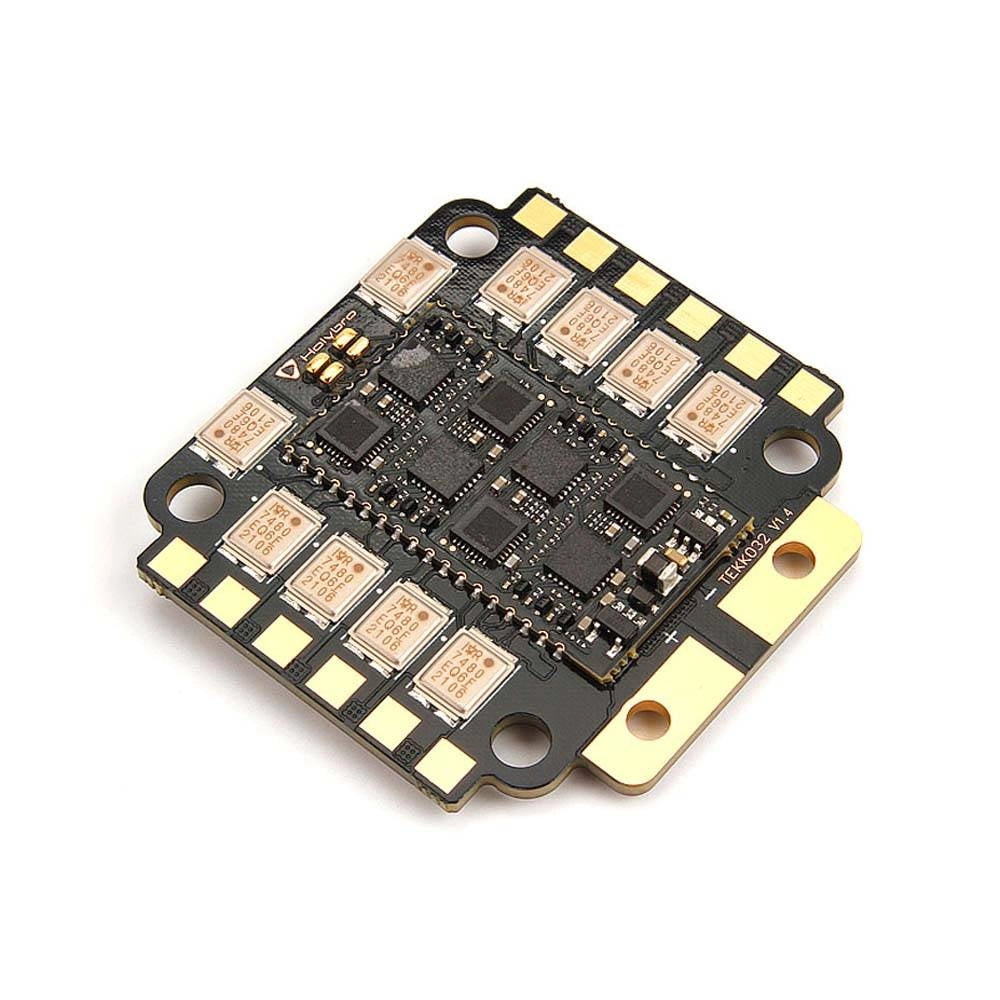

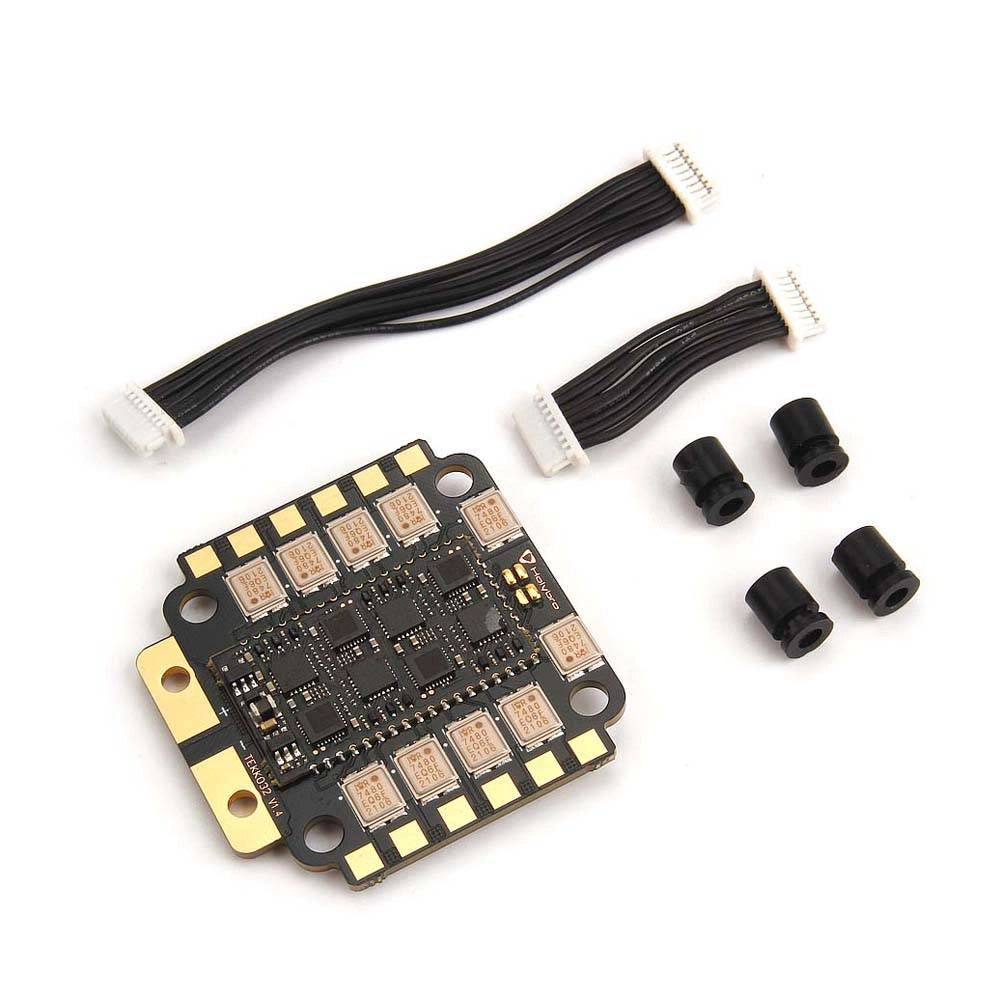

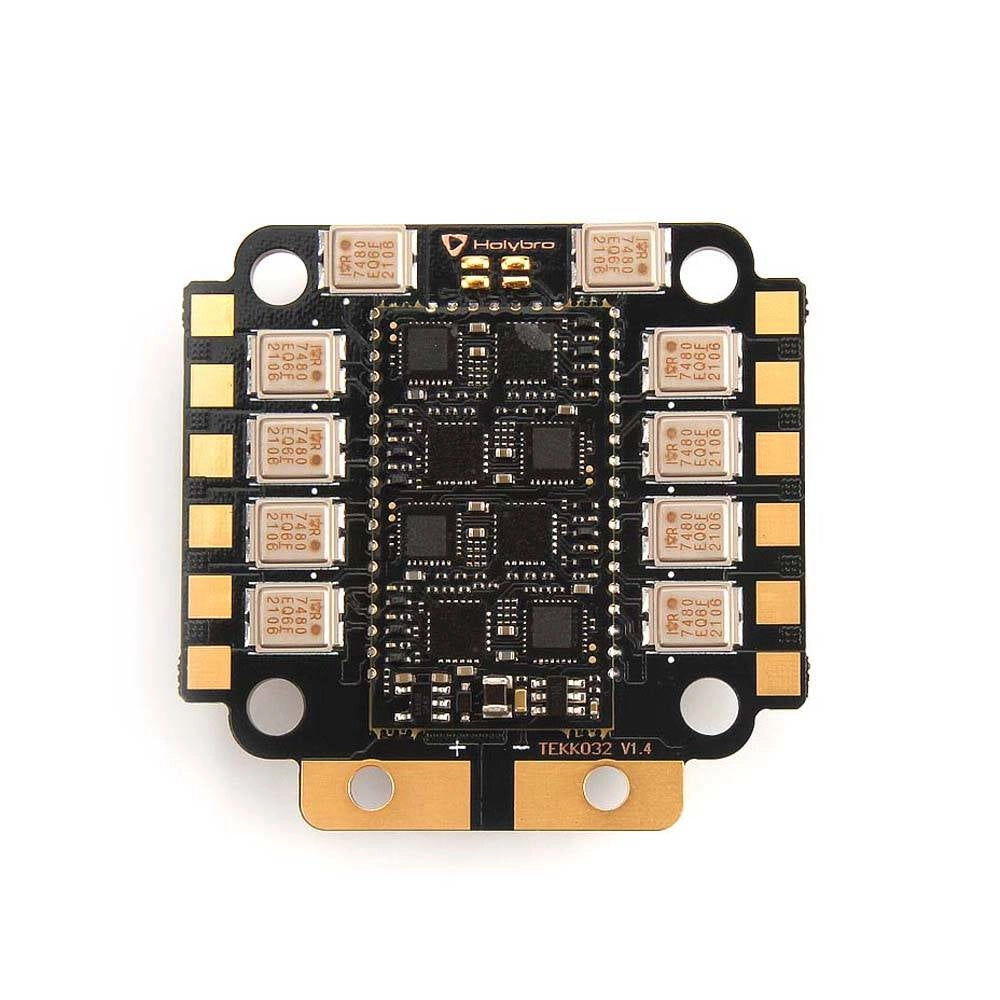

Holybro Tekko32 F4 Metal 65A 4in1

The all-new Tekko32 Metal is the first 4-in1- ESC in the market to adapt to the fast F4 MCU. Powerful & reliable metal-cased MOSFET 4-in-1 ESC with smooth control and quick response.

Note: Airflow for the ESC is very important if you want to run this 4in1 in a high current.
The battery wire (from Lipo to 4in1 ESC) should be at least 12AWG and well soldered.

Features

• New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
• PWM output up to 96K (default 48K)
• Metal-cased MOSFET for excellent heat dissipation

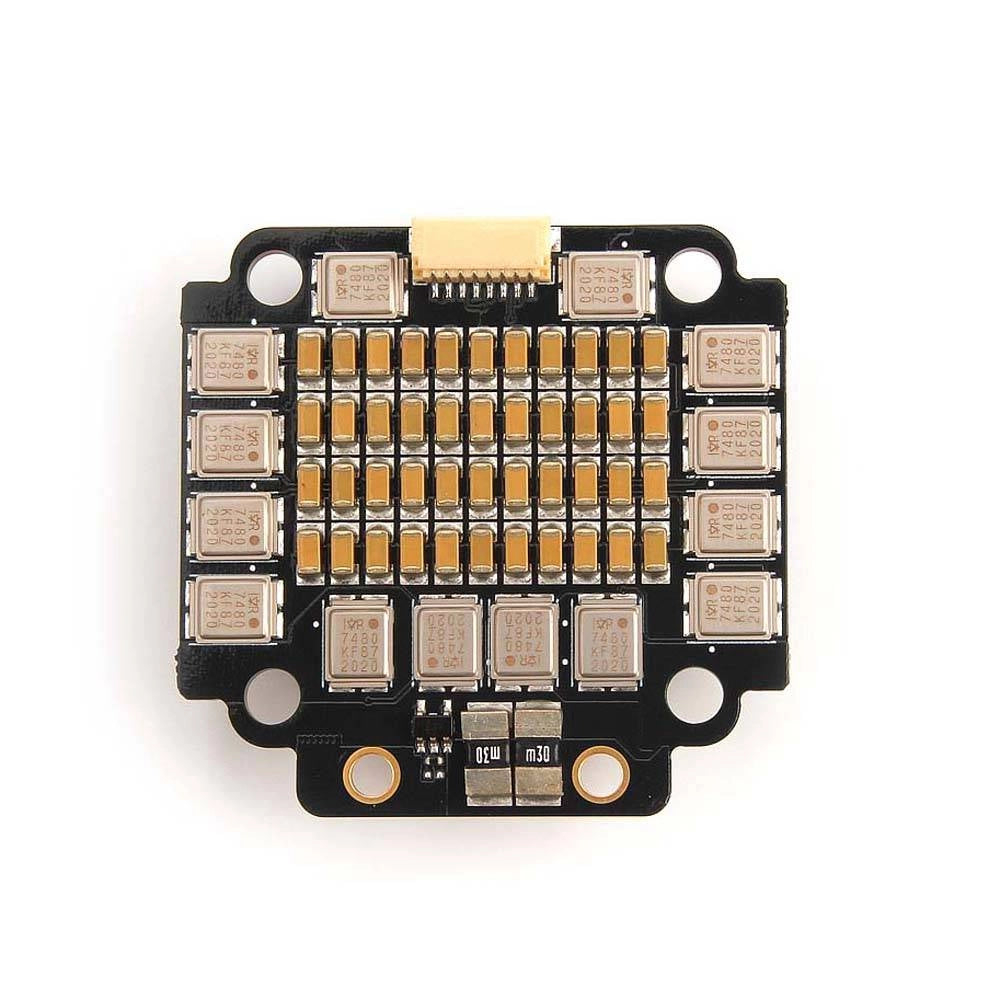

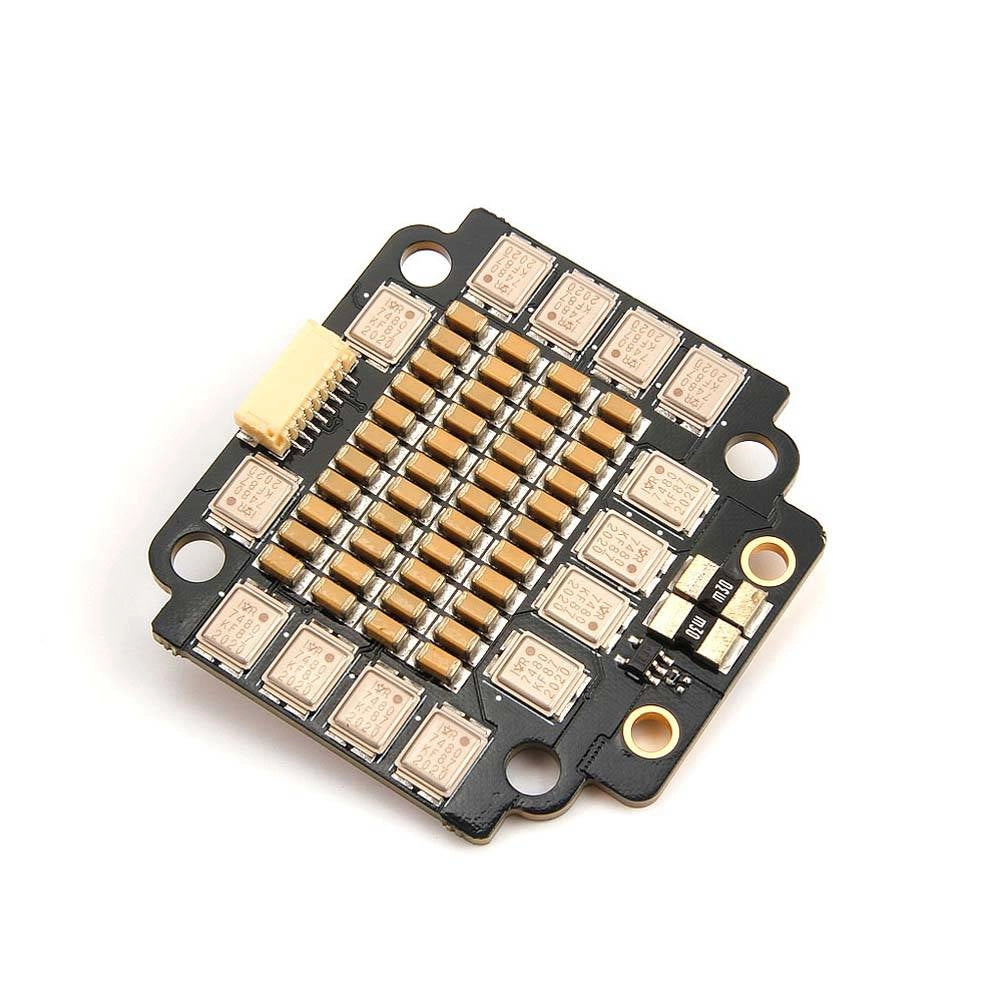

• Massive on-board capacitance for noise filtering at 2068uf
• 3 oz copper PCB design to allow bigger current and better heat dissipation
• A separate drive & control circuit broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
