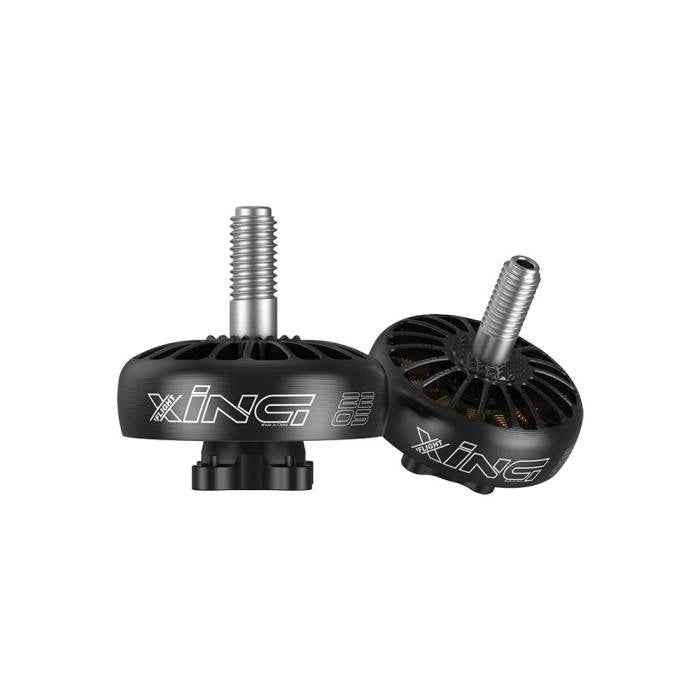

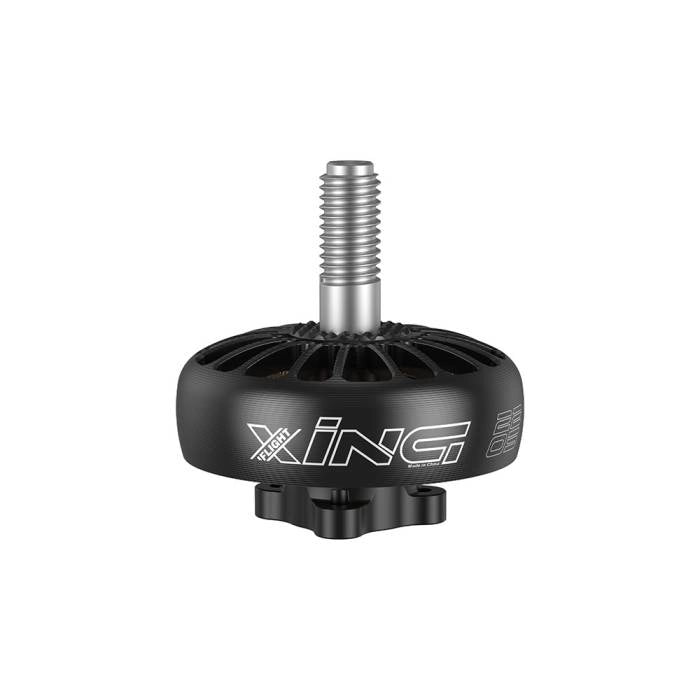

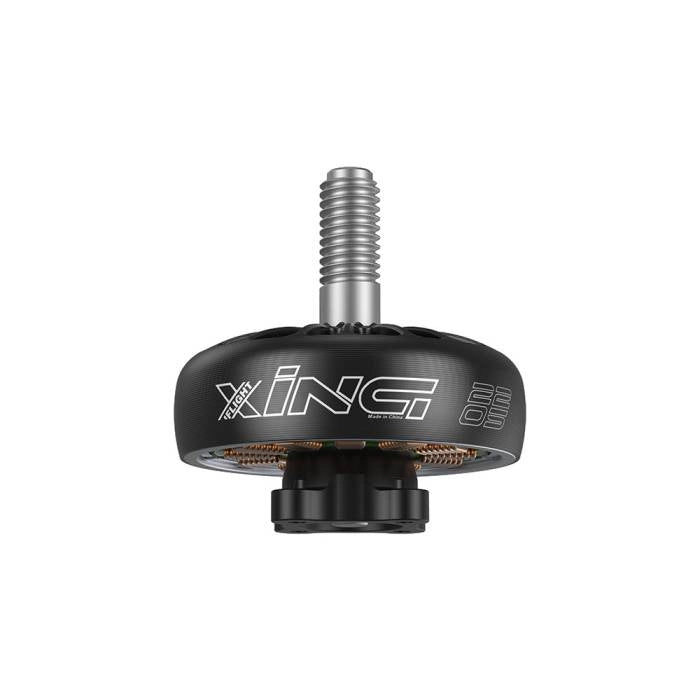

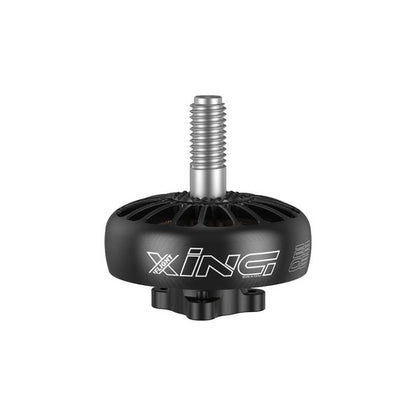

iFlight XING2 2205 FPV Motor

iFlight XING2 2205 FPV Motor

Mootori KV
€19,95 EUR
€19,95 EUR
Allahindlus Välja müüdud
Sisaldab käibemaksu. Saatmiskulud arvutatakse kassas.

The iFlight XING2 2205 Motor (Unibell) is built for smooth, reliable FPV performance in a lightweight package. Featuring a high-strength steel shaft, precision Japanese NSK bearings, and N52H curved magnets, it delivers efficiency, durability, and responsive power for freestyle and racing drones. With protective wiring, dynamic balancing, and a sleek Unibell design, this motor combines strength and style in one of the most trusted motor platforms in FPV.

Features

  • Dynamically balanced for smooth performance
  • High-strength 5mm steel shaft
  • Precision NSK bearings
  • Durable Unibell design
  • Protected motor wires
  • N52H curved magnets
Toote info

KV: 2300KV
Weight(included wire): 23.7g / 24.6g / 25.3g
Dimension: φ28.6*29.5mm(2300KV) / 28.6*29.55(2450KV/3200KV)
Interphase Resistance: 72.41mΩ / 50.63mΩ / 77.4mΩ
Input Volts: 25.2/ 2-4S / 24V
Peak Current: 17.91A / 33.06A / 38.43A
Max Watt: 451.33W / 548.1W / 910W
Mounting Holes: 12*12 φ2mm
Rotor Specifications: Unibell
Shaft Diameter: 4mm(3200KV)/5mm(2300KV/2450KV)
Shaft Protruding Length: 13.5mm
Lead: 160mm/22AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ8*φ3*4
Winding: Single Strand copper winding

Komplektis

1x iFlight XING2 2205 Motor Unibell (Choose KV)
1x Hardware Kit
