Lumenier LUX F765 FC

Lumenier LUX F765 FC

€79,95 EUR
€79,95 EUR
Allahindlus Välja müüdud
Sisaldab käibemaksu. Saatmiskulud arvutatakse kassas.

The Lumenier LUX F765 FC is your ultimate solution for high-performance multirotor builds, offering robust features and seamless compatibility with Betaflight, Ardupilot, and PX4. Its NDAA-compliant design ensures reliability and security for professional and recreational pilots alike.

Features

  • Supported Firmware - Betaflight, Ardupilot, and PX4
  • NDAA compliant and designed in the USA
  • Blackbox Storage - SD Card and Flash
  • I2C Ports for External Sensors
  • 10V Regulator for VTX Power
  • 5V Regulator for Accessories
  • Analog Current Sensor Input
  • Analog Battery Sensor Input
  • CANbus Support (PX4 only)
  • Integrated BetaFlight OSD
  • Camera Control Output
  • LED Strip Control
  • USB Type-C (2.0)
  • 8 UART Ports

    IMPORTANT NOTES: When using Ardupilot or PX4 builds, an sdcard is required to boot after firmware install.

    Toote info

    Processor: MCU STM32F765, 216MHz, 512KB RAM, 2MB Flash
    OSD (On Screen Display): Integrated analog BetaFlight OSD
    Sensors: Built-in Gyro, Accelerometer, and Barometer
    Power Supply: 3S to 6S Battery Voltage
    Weight: 9g

    LED Indicators:
    2x LEDs for Status (3.3V Power and Firmware Indicator)

    Power Regulators:
    Analog Inputs: 2x ADC (VBAT and Current)
    Camera Support: 1x Camera Input
    +10V Regulator for VTX
    +5V Regulator

    Mounting:
    Holes: 30.5mm x 30.5mm
    Dimensions: 38x38x4mm

    Outputs:
    12x Motor/Servo Outputs
    LED Strip Control
    Buzzer Output

    Storage:
    Flash Storage: 128Mb
    SD Card Slot

    Ports:
    1x External I2C Port
    USB Type-C (2.0)
    1x CANbus Port
    8x UART Ports

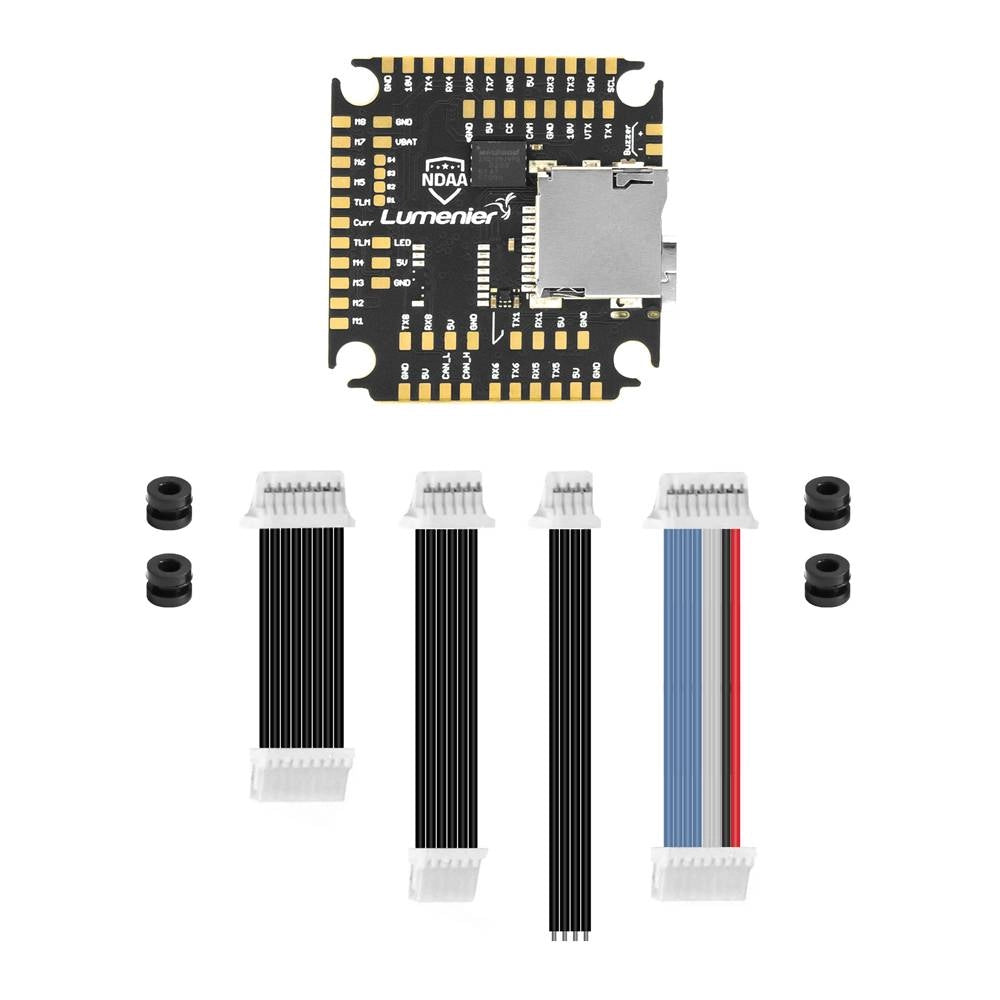

    Komplektis

    1x Lumenier LUX F765 Flight Controller - NDAA
    1x 63mm 8 pin JST-SH Cable
    1x 23mm 8 pin JST-SH Cable
    1x 64mm 6 pin JST-SH Cable
    1x 75mm 4 pin JST-SH Cable
    4x M3 Rubber Grommets

    Vaata kõiki üksikasju
