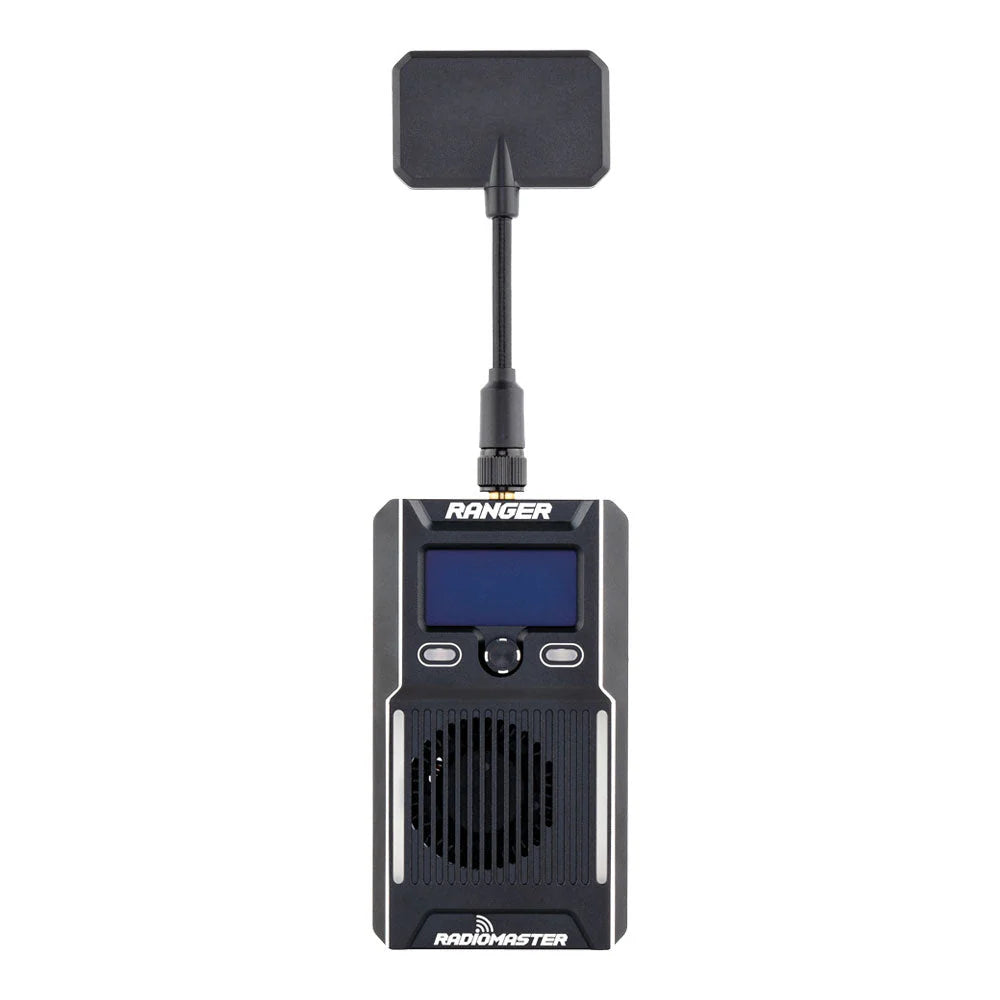

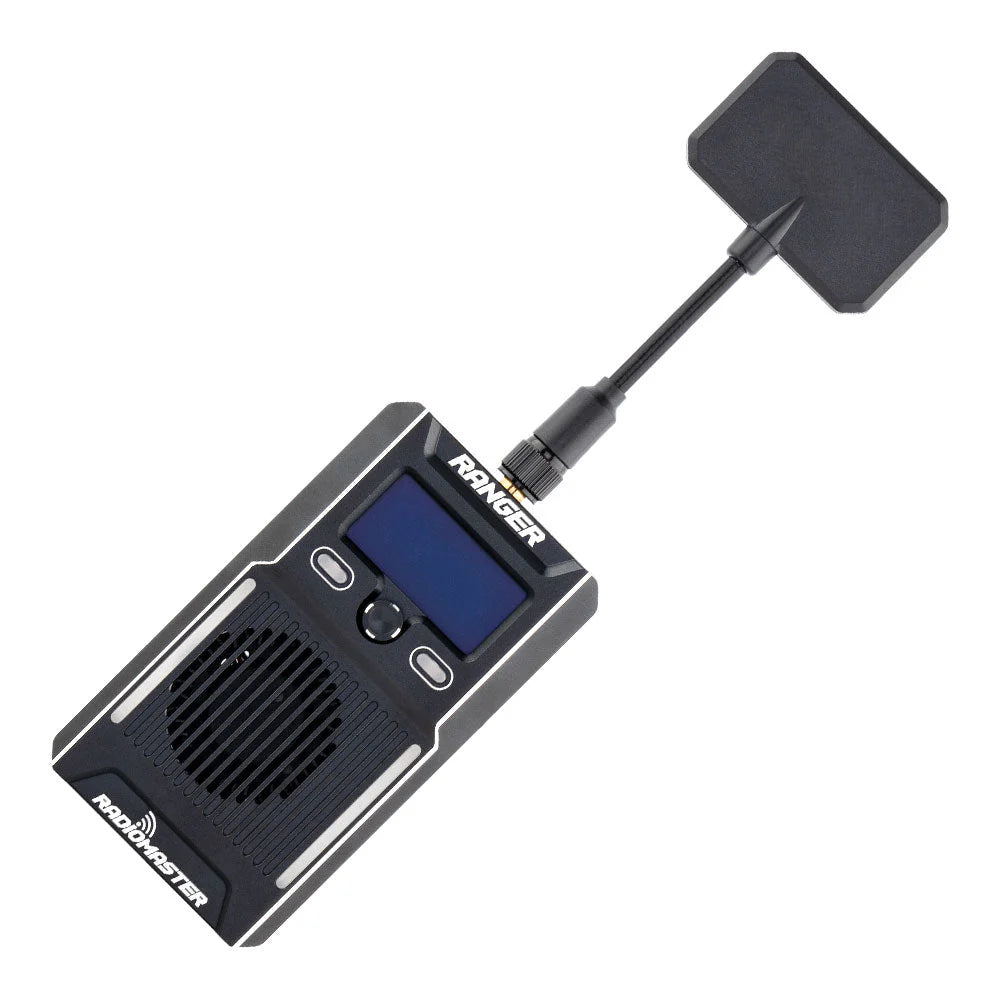

Ranger 2.4GHz ELRS Module

Variandid Ranger Ranger Combo

€115,95 EUR

Allahindlus Välja müüdud

Sisaldab käibemaksu. Saatmiskulud arvutatakse kassas.

About this product

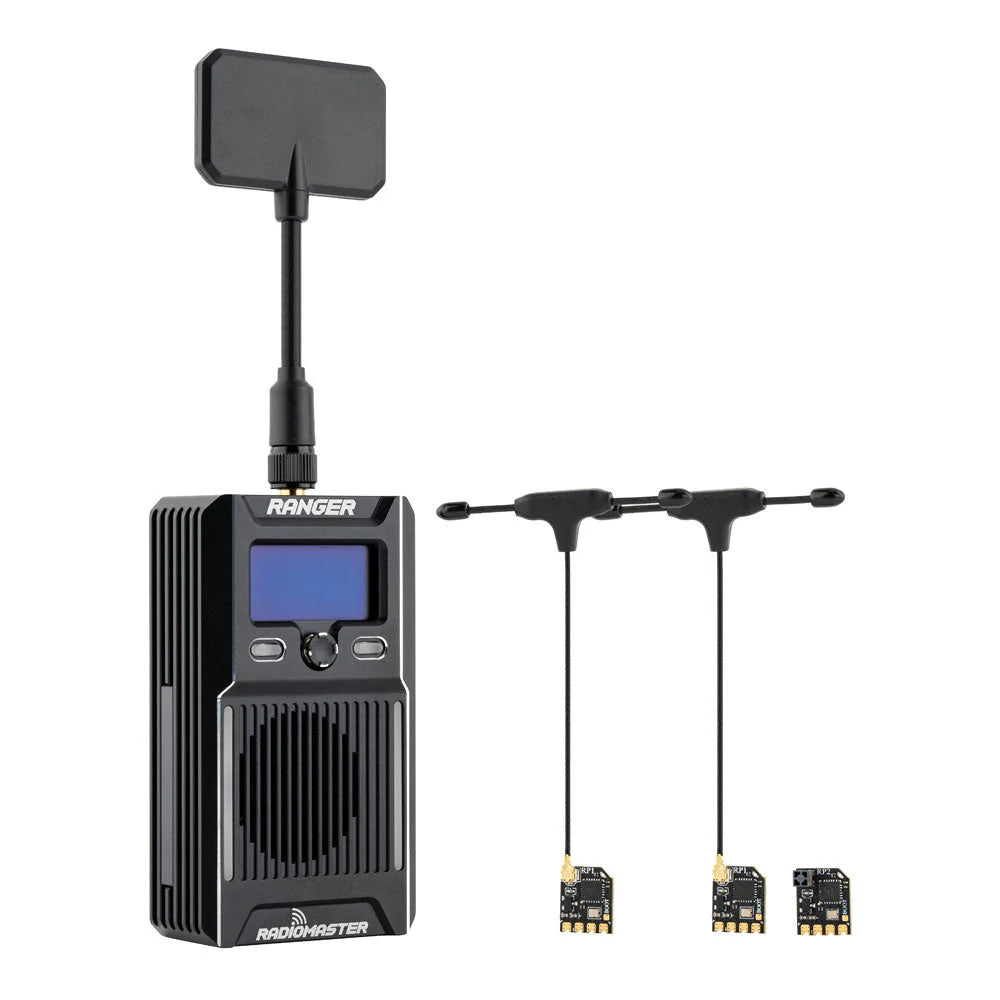

The RadioMaster Ranger 2.4GHz ELRS Module Starter Combo features a rugged CNC case and two module bay adapters. Other features include an OLED display, built-in accelerometer, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system. The 5 Direction Nav key and customizable shortcut buttons make this module user-friendly and customizable. This starter combo also includes additional RPI receivers and one RP2 Receiver.

Features

Two RP1 Receivers and one RP2 Receiver with antennas
2 Customizable Shortcut Buttons
High-Efficiency Cooling System
ExpresssLRS 2.4GHz Module
Max F-1000Hz Packet Rate
WiFi and Bluetooth Support
Rugged CNC Housing
RGB Lighting effects

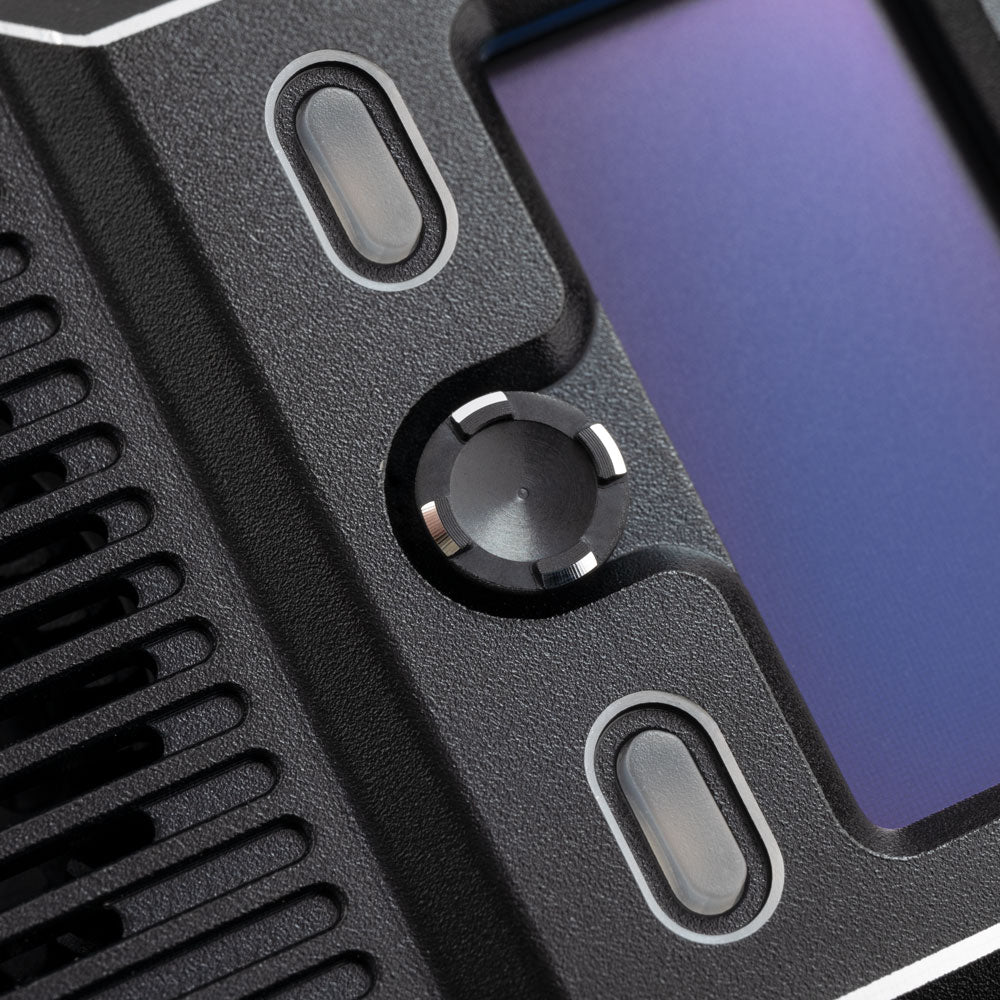

5 Direction NAV Key
1W Power Output
OLED Display

Specifications

Dimension: 178*51*25mm, 138g(with Moxon antenna) / 95*51*25mm, 126g (without antenna)
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Weight: 138g (with Moxon antenna) / 135g (with T antenna)
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Power Output: 1WItem: Ranger 2.4GHz ELRS Module
MCU: ESP32(main), ESP8285(aux, as esp backpack)
Receivers: RP1 (two) and RP2 (one) with antennas
Frequency Range: 2400 MHz to 2480 MHz

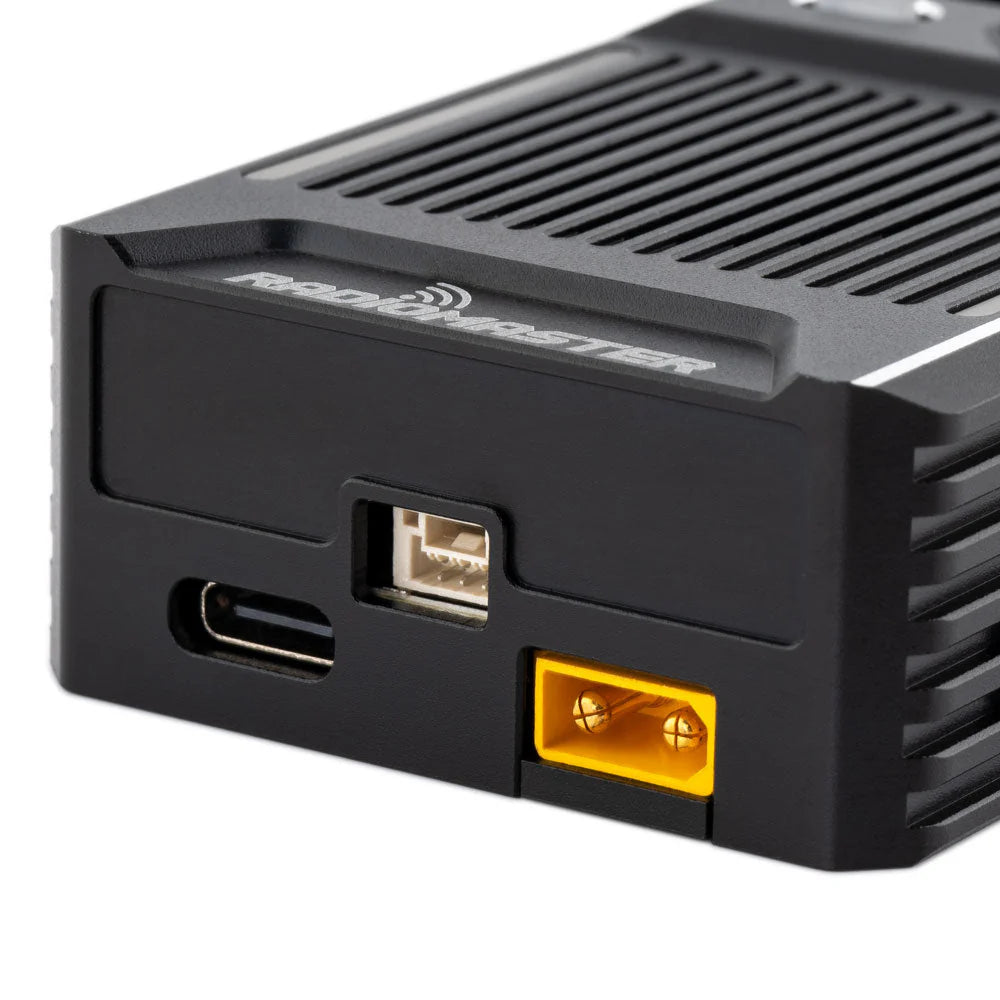

XT30 Power supply voltage: DC 6V - 16V
Maximum packet rate: 500Hz/F1000Hz
Minimum receiver refresh rate: 25Hz
Futaba CRSF socket cable: Included
Frequency: ExpressLRS 2.4GHz
Regulatory Domain: ISM2400
Packet Rate: MAX F-1000Hz
OLED screen: 64x128px
RF chip: SX1281IMLTRT
Accelerometer: Built-In
RGB: Built-in light strip
Bluetooth support: Yes
Wifi Support: Yes

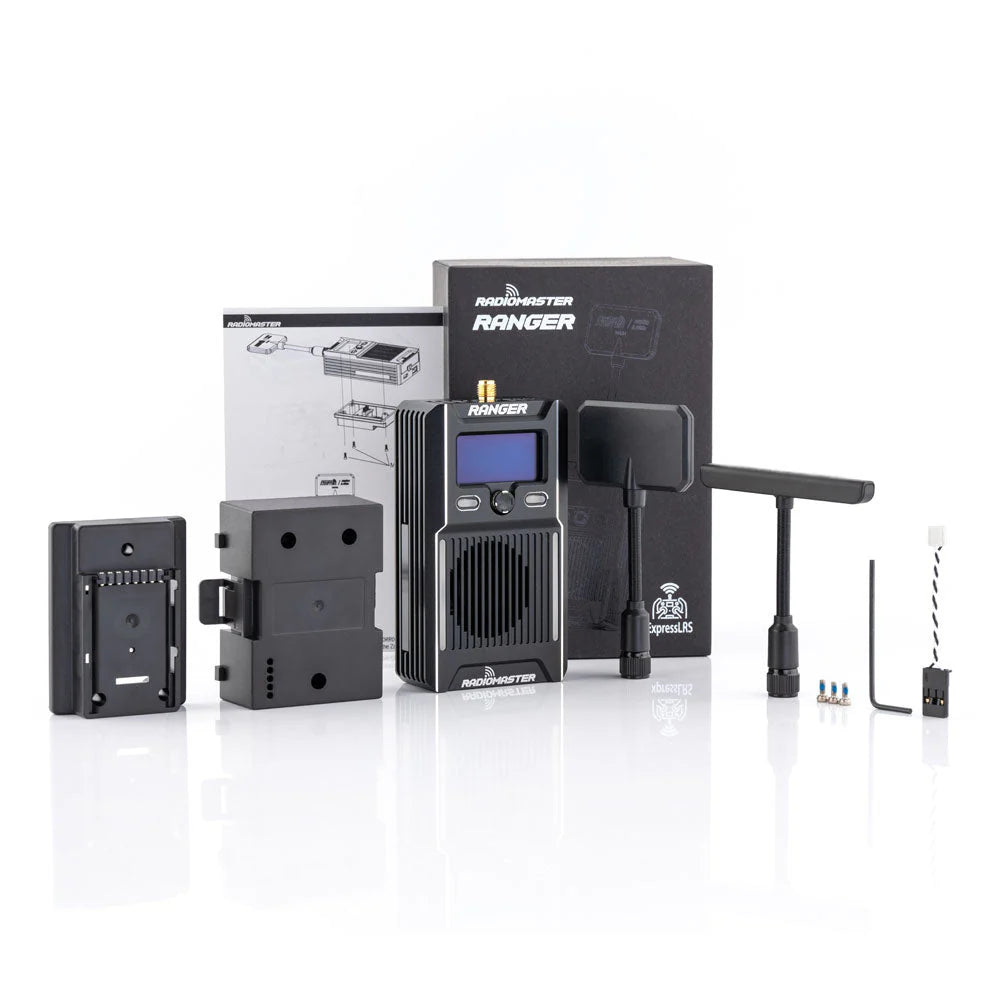

Package Includes

1 * RANGER Module
1 * Futaba CRSF socket cable
1 * JR Adapter
1 * Nano Adapter
1 * T Antenna
1 * Moxon Antenna
1 * Hexagon socket screwdriver
3 * M2*5 Screws
1 * Assembly Manual

Need receivers too? Purchase the Ranger Combo, which includes the following items:

2 * RP1 ExpressLRS 2.4ghz Nano Receiver
1 * RP2 ExpressLRS 2.4ghz Nano Receiver

Vaata kõiki üksikasju
