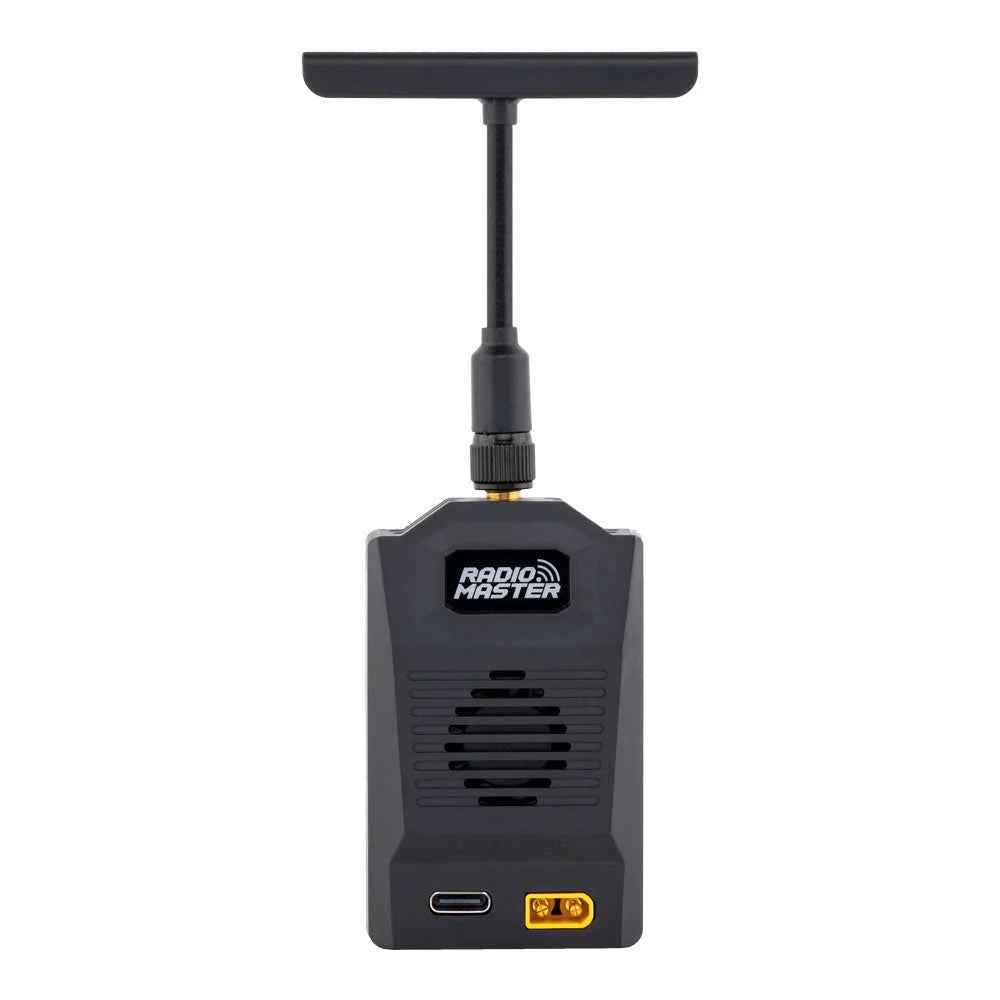

Ranger Nano 2.4GHZ ELRS Module
Ranger Nano 2.4GHZ ELRS Module
Hind
€45,95 EUR
Hind
Allahindlus
€45,95 EUR
Sisaldab käibemaksu.
Saatmiskulud arvutatakse kassas.
Järeletulemise saadavust ei õnnestunud laadida
Want to experience the efficiency, stability, and low-latency link of the ExpressLRS protocol without purchasing a new radio? RadioMaster has you covered!
Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Nano 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules. For more information on the Ranger series, please click here.
Features
- Nano ExpresssLRS 2.4GHz Module

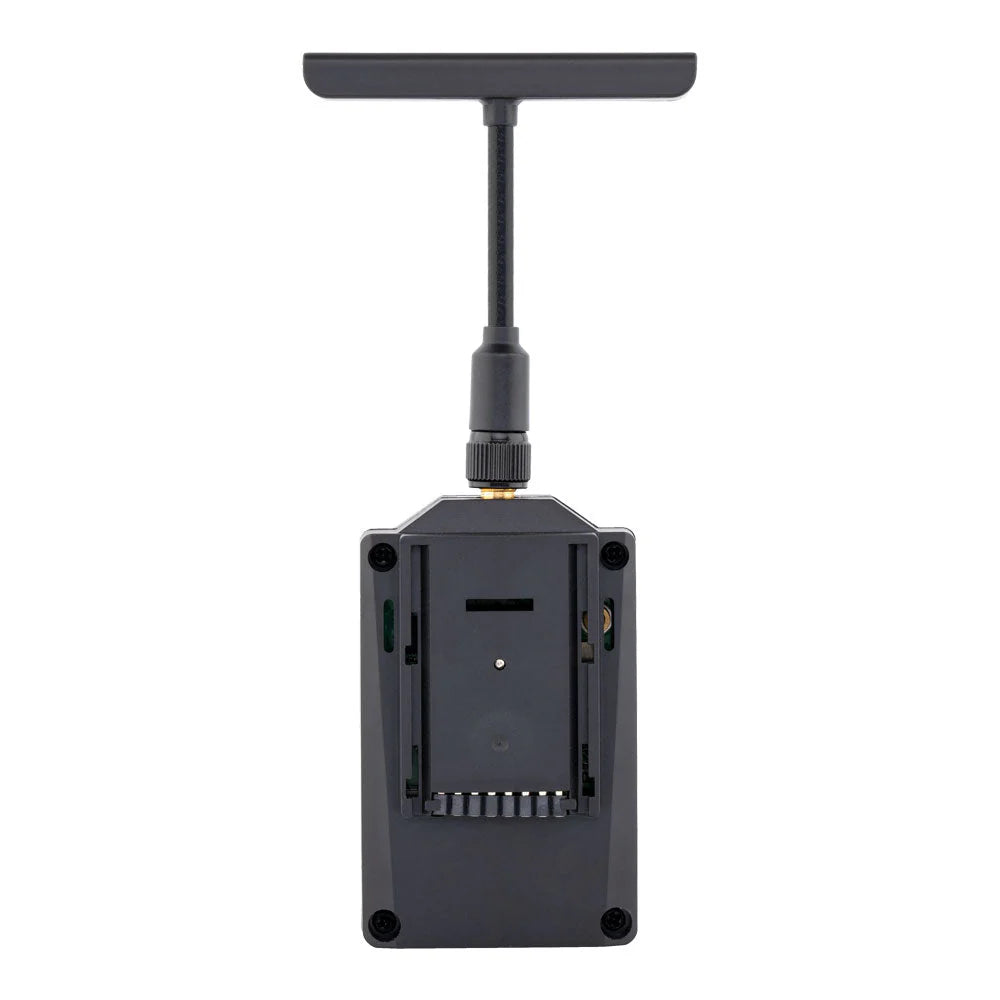

- Nano Adapter for Zorro and More
- High-Efficiency Cooling System
- WiFi and Bluetooth Support
- Max F-1000Hz Packet Rate
- 1W Power Output
Specifications
- Dimension: 136*42*26mm, 48g (with antenna) / 74*42*26mm, 39g (without antenna)
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- Receivers: Two RP1 Receivers and one RP2 Receiver
- MCU: ESP32(main), ESP8285(aux,as esp backpack)
- Frequency Range: 2400 MHz to 2480 MHz

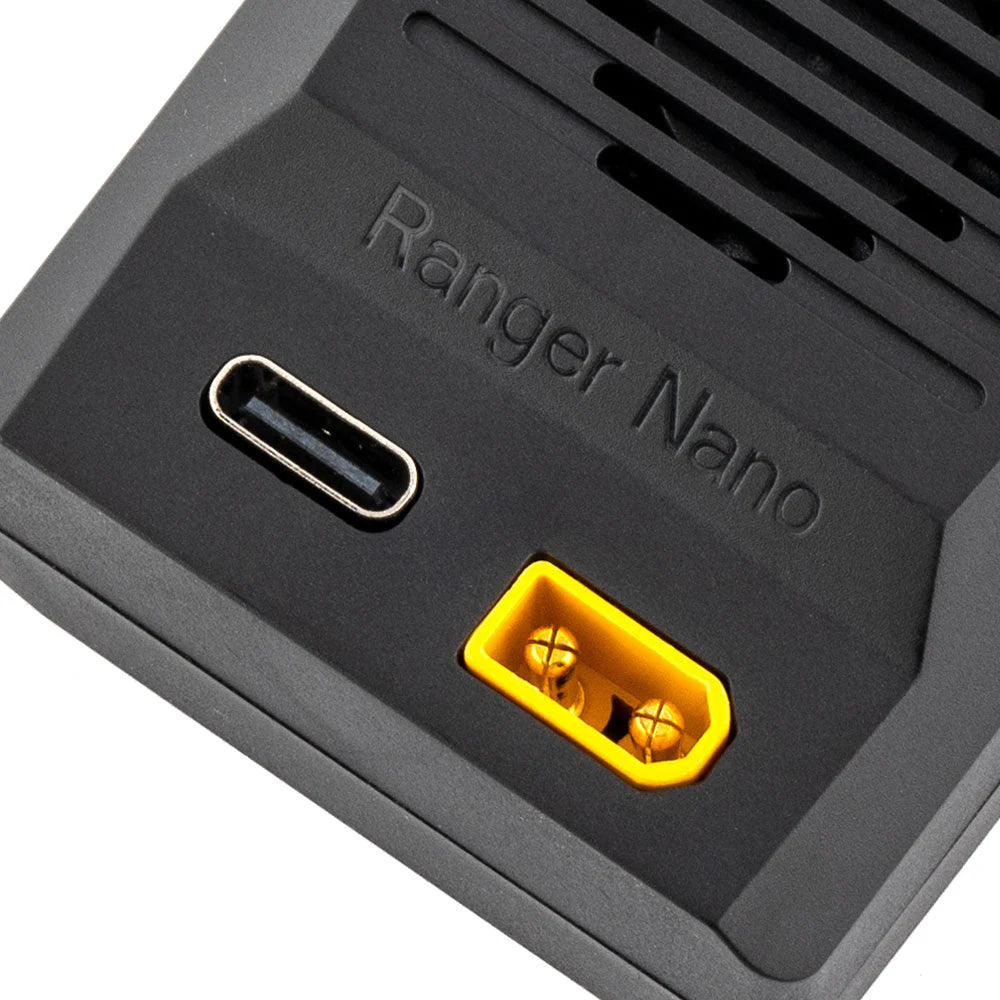

- XT30 Power supply voltage: DC 6V - 16V
- Maximum packet rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz
- Regulatory Domain: ISM2400
- Item: Ranger Nano Module
- Weight: 48g (with antenna）
- RF chip: SX1281IMLTRT
- Bluetooth support: Yes
- Wifi Support: Yes
Package Includes

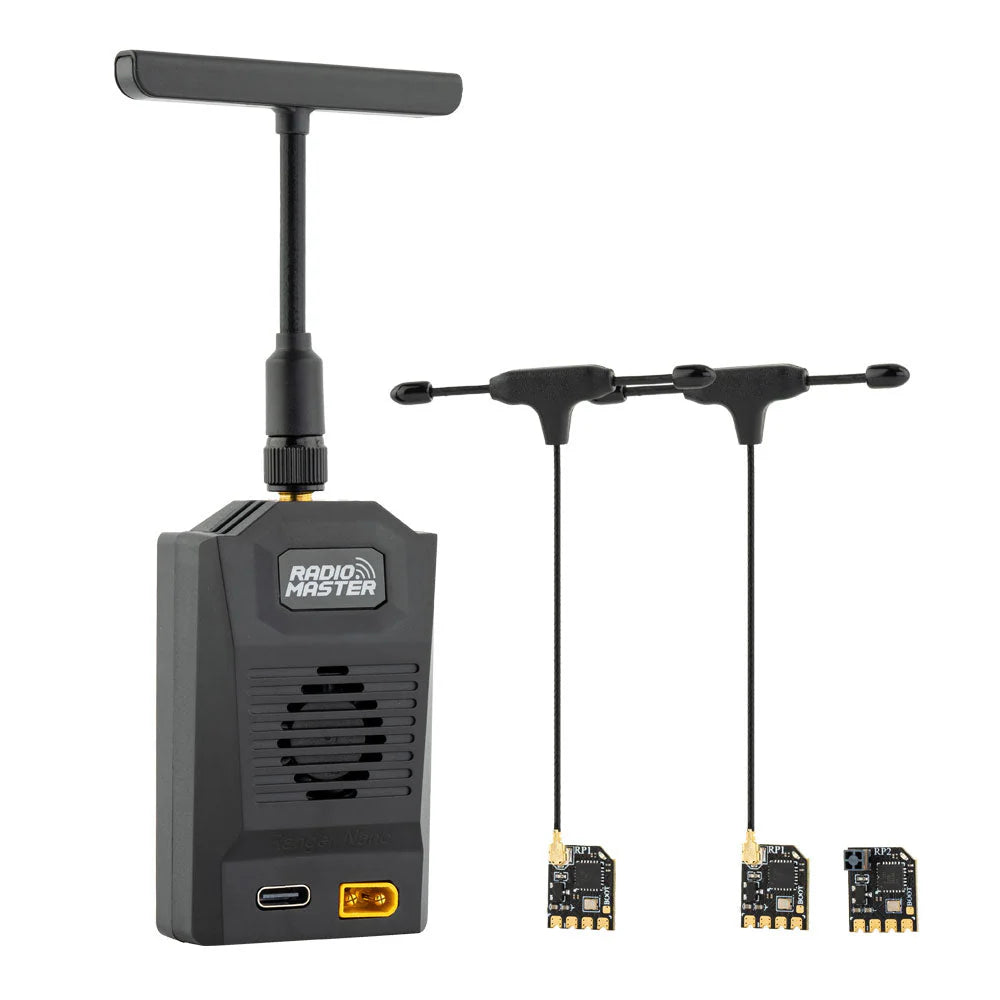

Need receivers too? Purchase the Ranger Nano Combo, which includes the following items:
- 2 * RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
