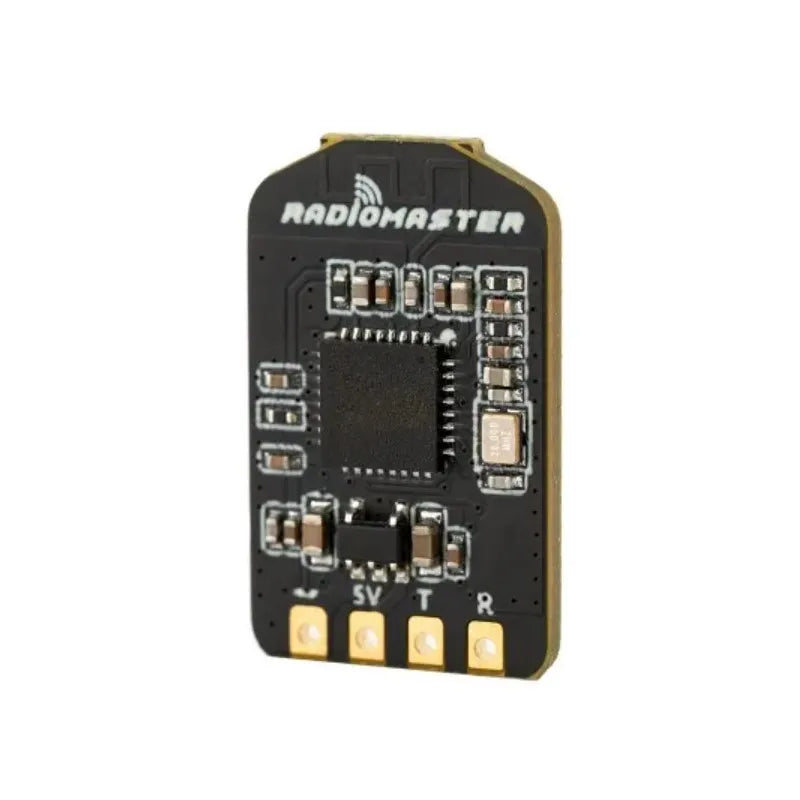

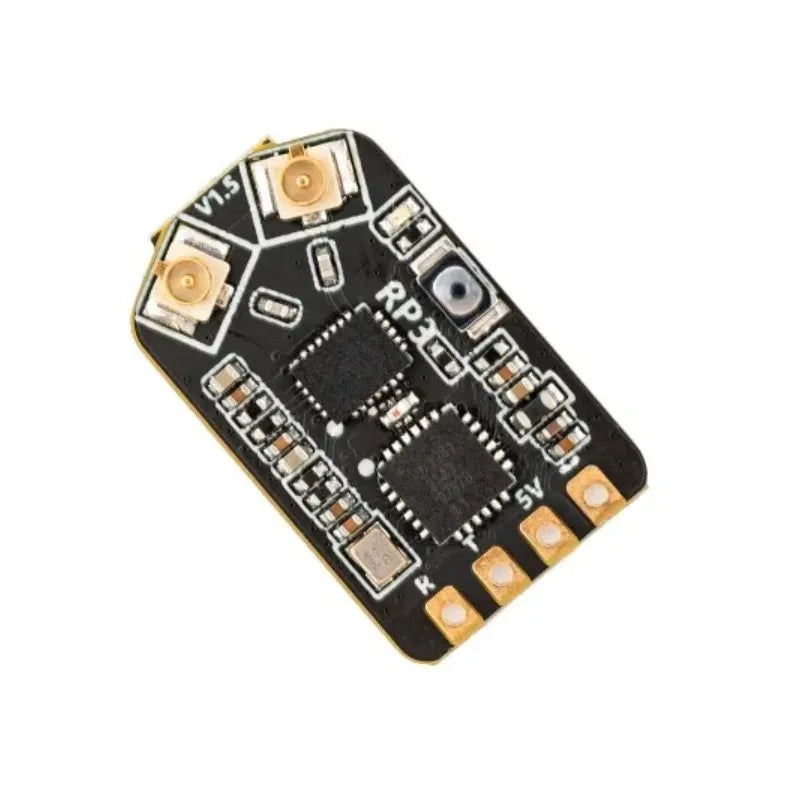

RP3 V2 ELRS 2.4ghz Nano Receiver

Get incredible range and low latency with this 2.4G ExpressLRS nano receiver from RadioMaster .

This RP3 receiver has a skyworks SE2431L providing an LNA for improved performance as well as two T antennas .

Specifications

Type: ISM
MCU: ESP8285
RF Chip: SX1280IMLTRT
RF telemetry power: max 100mw

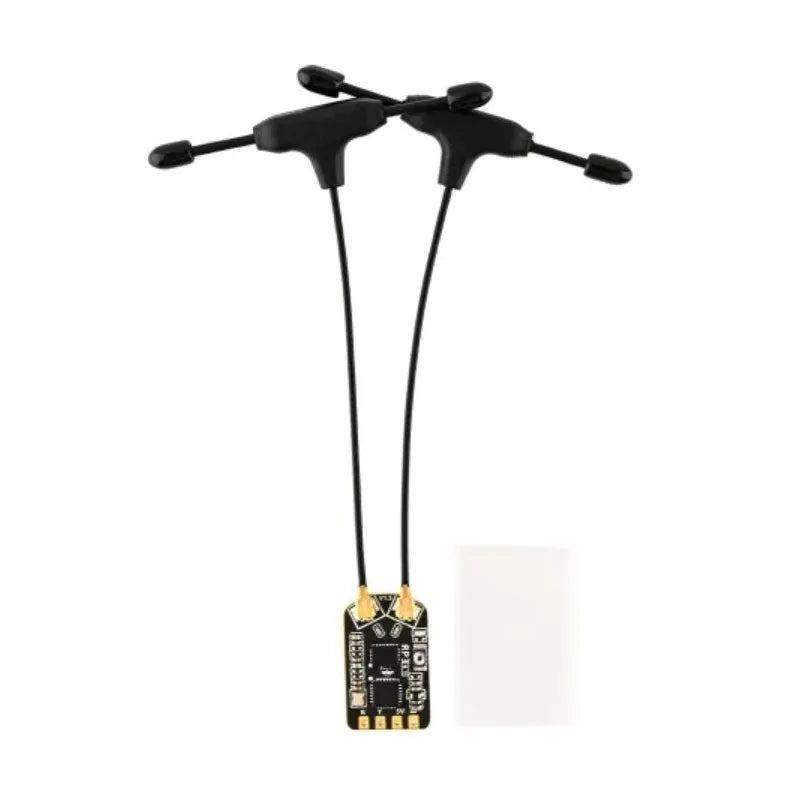

Antenna: 65mm 2.4ghz T Antenna x 2
Frequency Range: 2400 MHz to 2480 MHz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 4.6g (Including two antennas)
Dimensions: 22mm*13mm*4mm
Firmware Version: ExpressLRS v3.0 EU-LBT pre-installed
FW Target: RadioMaster RP3 Diversity 2400 RX
Bus interface: CRSF

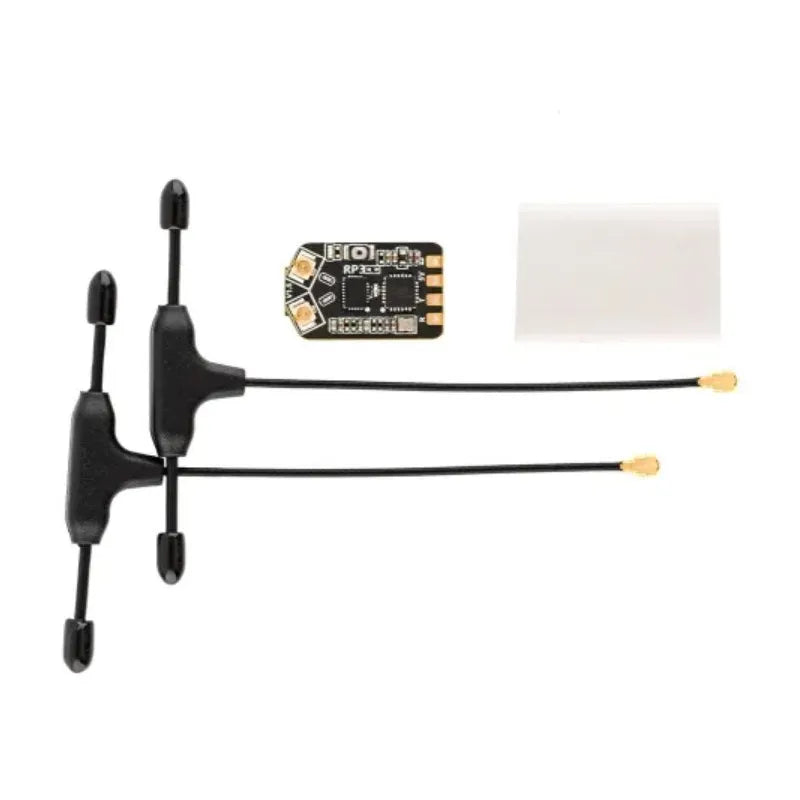

Included

1x RP3 ExpressLRS 2.4ghz Nano Receiver
2x 65mm UFL 2.4GHz T Antenna
1x User Manual
