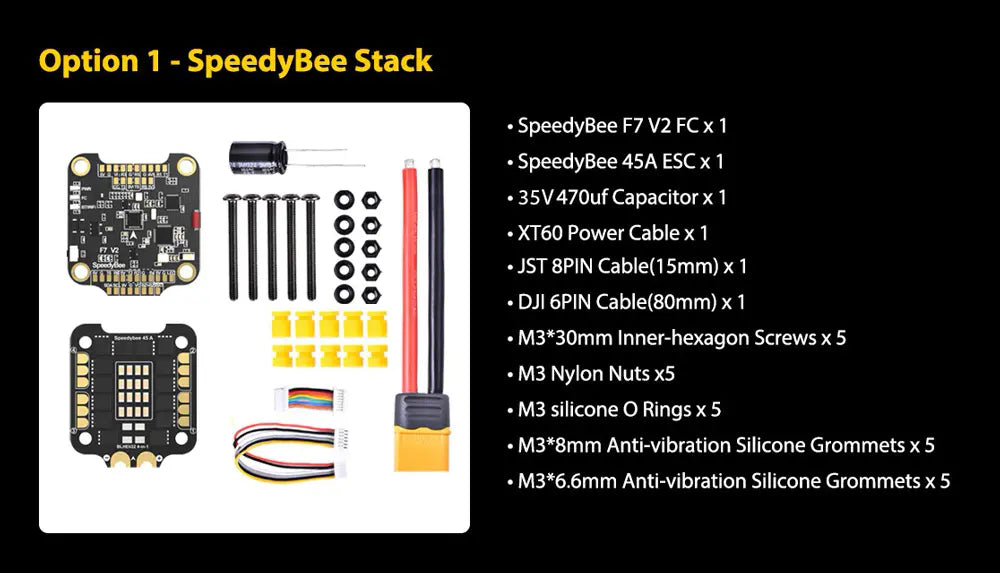

SpeedyBee F7 V2 FC + 45A 3-6S BLHeli_32 4-in-1 ESC Stack

Name: SpeedyBee F7 V2 FC + 45A 3-6S BLHeli_32 4-in-1 ESC Stack
Brand: SpeedyBee
Price: 99.95 EUR
Availability: OutOfStock

SpeedyBee F7 V2 FC + 45A 3-6S BLHeli_32 4-in-1 ESC Stack

€99,95 EUR

Allahindlus Välja müüdud

Sisaldab käibemaksu. Saatmiskulud arvutatakse kassas.

This SpeedyBee Stack has an F7 V2 FC + 45A 4-in-1 ESC, which is SpeedyBee's latest flagship ESC. Equipped with BLHeli_32 firmware and 21 filtering capacitors! With a continuous current of 45A and VBAT power output, it is sure to bring your build to top performance! The F7 V2 FC is the world's first FC with wireless firmware flasher and black-box analysis. Set motor directions wirelessly with built-in Wifi/Bluetooth capabilities!

Features

World's first Buzzer BZ+ and BZ- pad used for 5V Buzzer flashing, and Blackbox analysis.
Support Flight Controller Firmware BetaFlight(Default), EMUFlight
SmartPort Use any TX pad of UART for the SmartPort feature.
BLE Support, used for Flight Controller configuration
DJI Air Unit slot A full DJI Air Unit JST slot onboard
WiFi Support, used for data transfer, e.g firmware
Boot button Used to easy enter DFU mode
RSSI input RSSI input solder pad
LED pin Used for WS2812 LED
Wifi/Bluetooth Capabilities

Toote info

F7 V2 FC

Power input: 3S - 6S Lipo
5V power output: 7 * 5V output, 6 pads, and a BZ+ pad used for Buzzer, the maximum load current is 2.5A. 9V * 1, the maximum load current is 2.5A.
9V power output 2 * 9V output, 1 pad, and another one used for DJI slot
4.5V power output 1 * 4.5V output pad
3.3V power output 1 * 3.3V output pad, the maximum load current is 500mA.
UART: Full UART * 5(UART1, UART2, UART3, UART5, UART6)
I2C: Used for external Magnetometer, Sonar, etc.
Mounting :30.5 x 30.5mm, 4mm hole size
OSD: BetaFlight OSD w/ AT7456E chip
BetaFlight Camera Control Pad: Yes
BlackBox: 16MB onboard data flash
Current Sensor: 1: 10 (Scale 168)
ESC Telemetry: UART UART4 RX
Target Name: SPEEDYBEEF7V2
Dimension 41 x 38 x 6.9mm
ESC signal: M1 - M4
Baro: BMP280 (I2C)
MCU: STM32F722
IMU: MPU6000
USB: Type-C
Weight: 9g

45A 4-in-1 ESC

Mounting 30.5 x 30.5mm, 4mm hole size
Current Sensor Support (Scale 168)
Firmware BLHeli32 SpeedyBee 4in1
ESC Protocol DSHOT300/600/1200
Continuous Current 45A * 4
Dimension 41 * 45 * 6.5mm
Power input 3S - 6S LiPo
ESC Telemetry Support
Burst Current 55A(10S)
Power output VBAT
MCU STM32F051
Weight 12.5g
