Pilotix F405 V3 ICM42688 AM32 60A Stack

Pilotix F405 V3 ICM42688 AM32 60A Stack

€79,95 EUR
€79,95 EUR
Allahindlus Välja müüdud
Sisaldab käibemaksu. Saatmiskulud arvutatakse kassas.
Tarneaeg
Tarneaeg:

6-8 tööpäeva

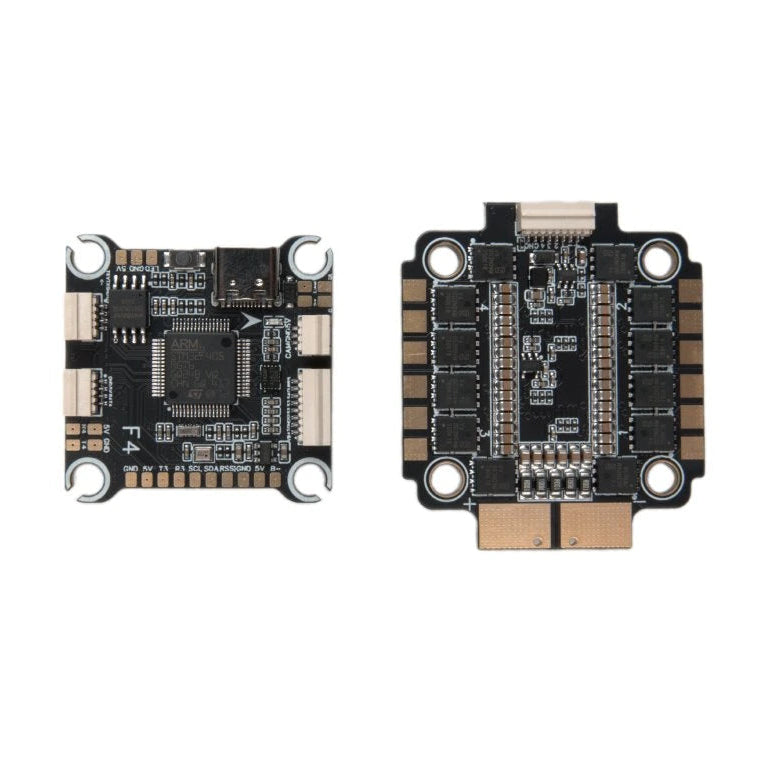

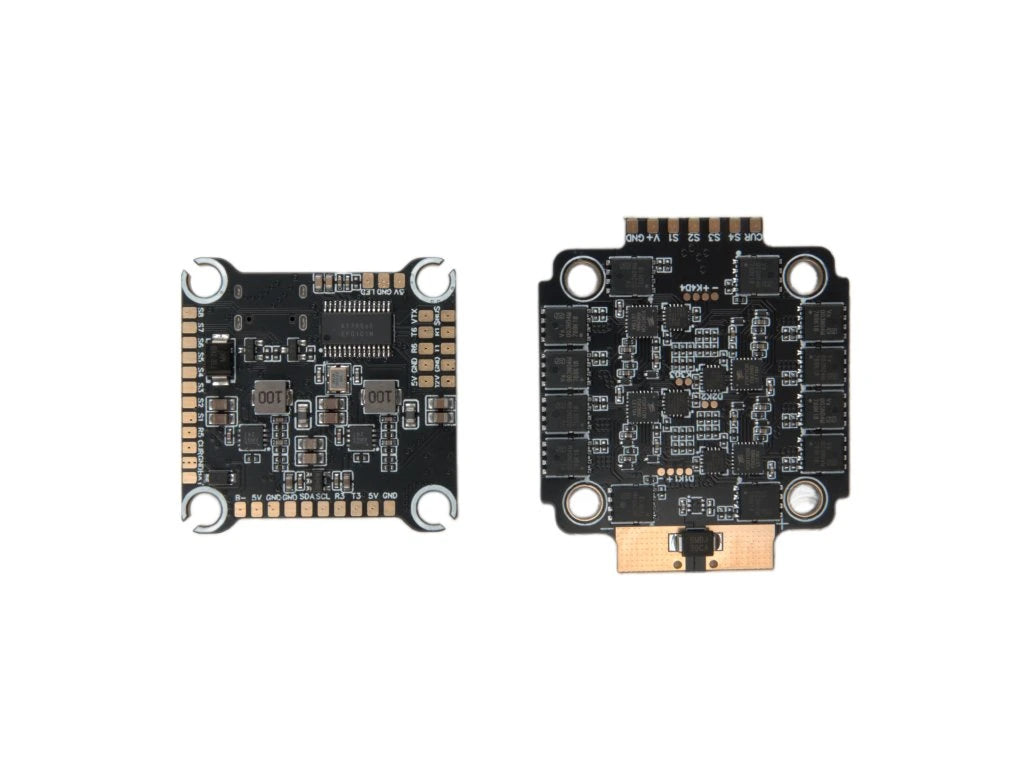

The Pilotix F405 V3 60A Stack is an advanced FC and electronic speed controller (ESC) combination designed for high-performance drones. The F405 processor offers fast and precise flight control for smooth and stable flight maneuvers. The 60A ESC provides ample power for a wide range of motors and propeller combinations, ensuring reliable and efficient performance.

Toote info

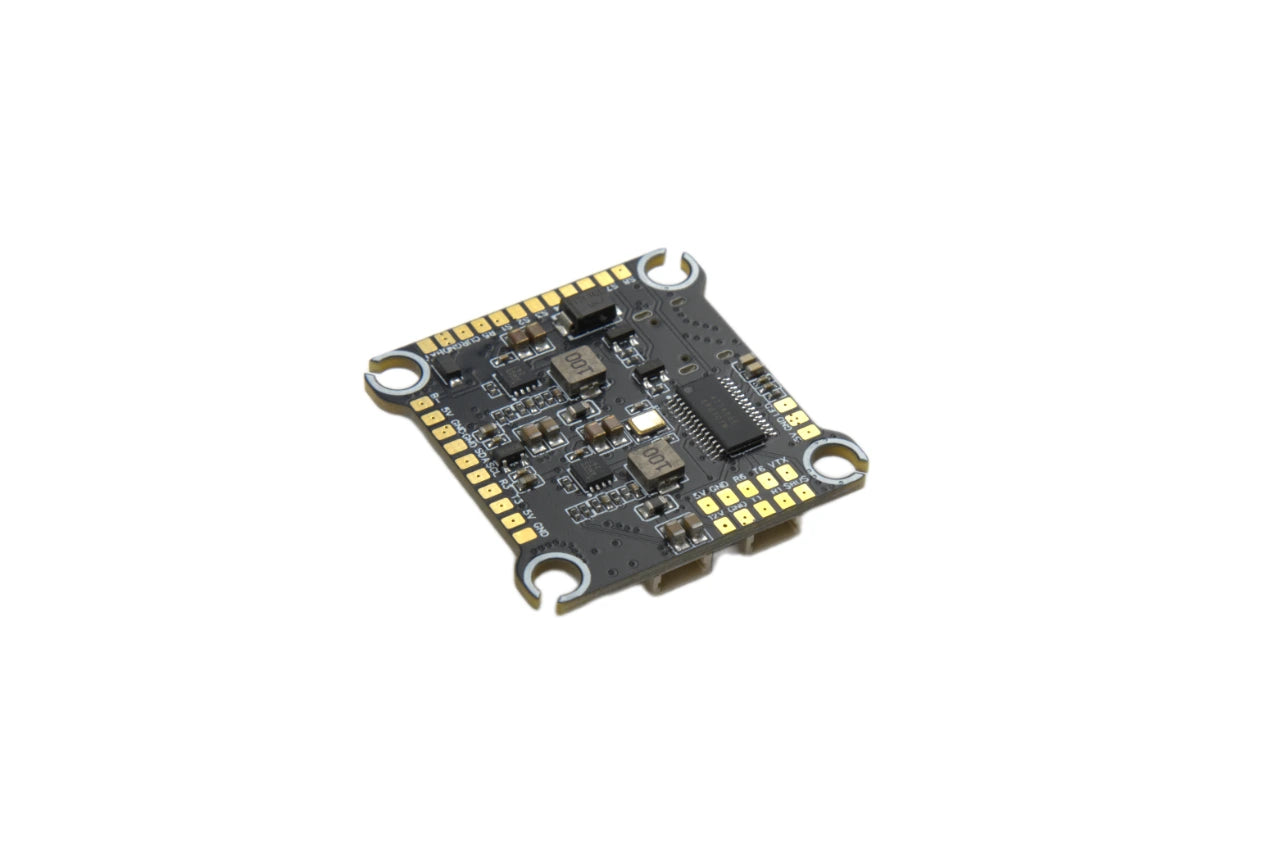

FC

Firmware: Betaflight 4.4.3
MCU: STM32F405RGT6
Gyro: ICM42688P
Barometer: SPL06
OSD chip: AT7456E
Blackbox: 16MB
UARTs: 5
Motor output: 8x
I2C serial: SDA/SCL pads
Mount pattern: 30.5*30.5mm M3
Dimensions: 37*37mm
Weight: 7.8g
BEC: 5V 3A/12V 2A

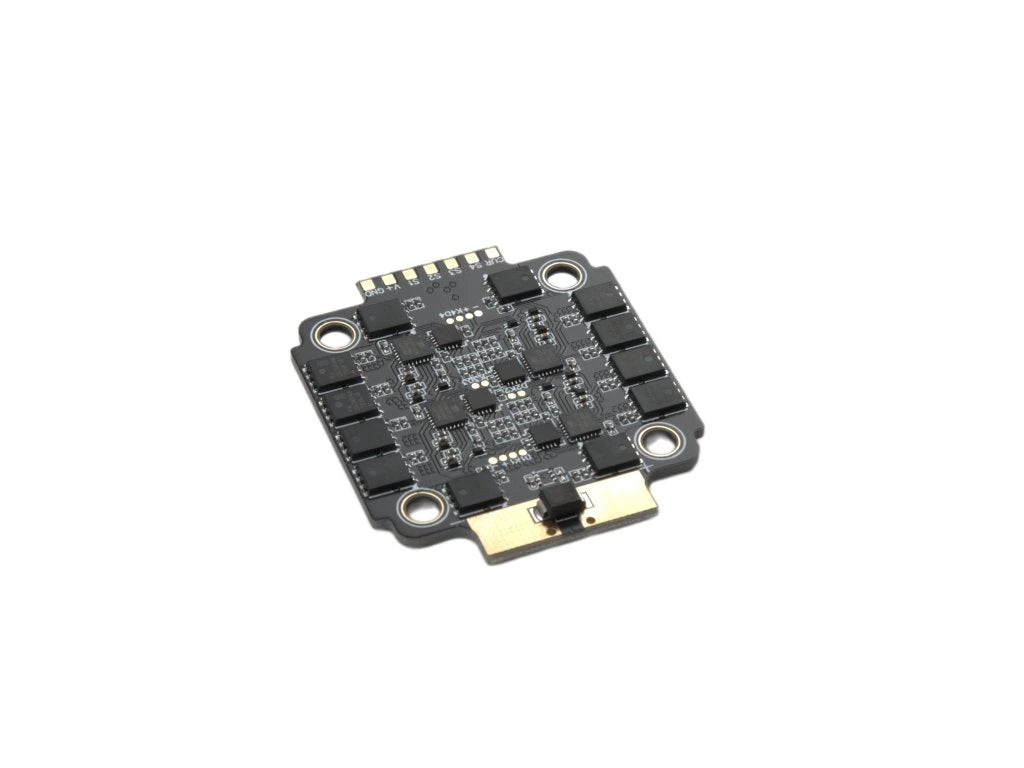

ESC

Input voltage: 3-6S
Continuous current: 60A
Burst current: 75A
Current sensor: No
ESC firmware: Bluejay JH-30 V0.19.2
ESC protocol: DShot150/300/600/MultiShot/ OneShot etc.
Dimensions: 48*42mm
Mount pattern: 30.5*30.5mm M3

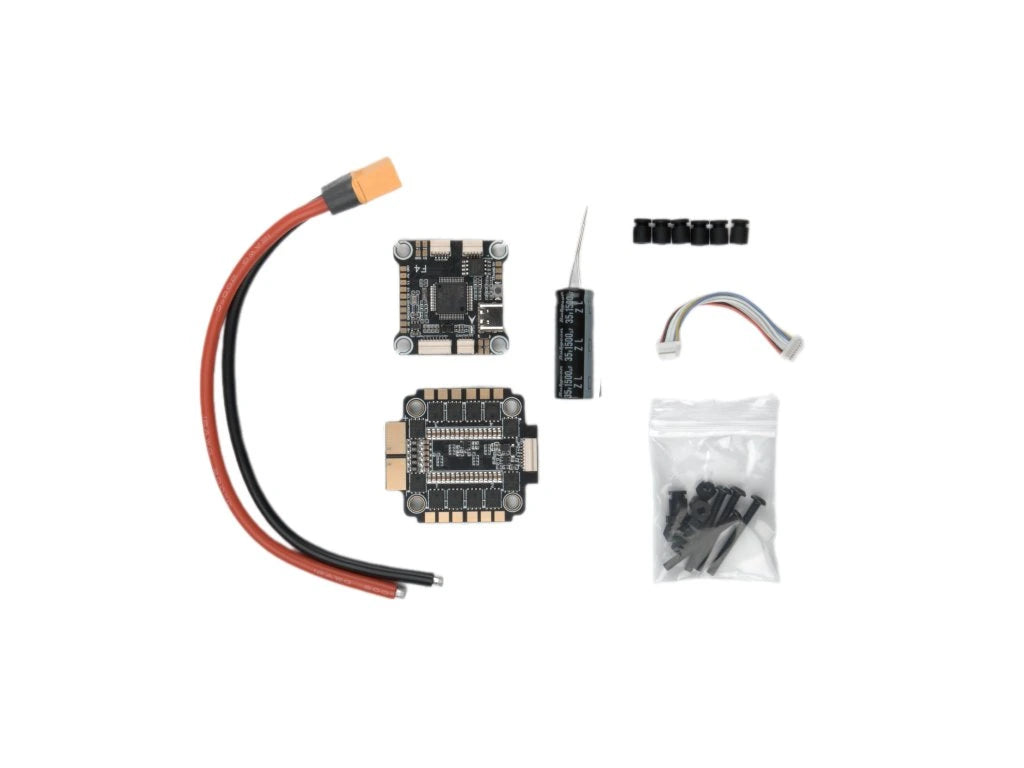

Komplektis

1x Stack Pilotix F405 V3 ICM42688 AM32 60A
