Walksnail Avatar HD Kit V2 - 32GB Gyro
Walksnail Avatar HD Kit V2 - 32GB Gyro
Järeletulemise saadavust ei õnnestunud laadida
This Walksnail Avatar HD Kit V2 features built-in 32GB storage and Gyroflow support. The 2K/120fps/4:3 native sensor camera allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images. The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Other features include an updated PCB board, an updated outer shell, low latency of 22ms, and a 4Km range.
Features
- Optimized antenna base design and frequency button position for greater convenience
- The only native 4:3 high-definition sensor in the FPV industry
- Updated the design of the PCB board and outer shell
- The spare pad provides two power connection modes
- 2K pixel, 120fps, 4:3 native sensor
- 20*20mm mounting holes
- 160° wide-angle FOV
- F/2.0 Large Aperture
- 32g built-in storage
- Supports Gyroflow
- 1080P 120fps HD FPV
- Lightweight design
- GPS anti-jamming
- 22ms low latency
- Ranging Mode
- 4KM range
- 6V-25.2V
Toote info
AVATAR HD V2 CAMERA
Resolution: 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;
Image Sensor: 1/3.2-Inch 4Mp 4:3sensor
Min.Illumination: 0.001Lux
Dimensions: 19*19*22mm
Coaxial Cable: 140mm
Shutter Rolling shutter
Ratio: 4:3 native /16:9
Gyroflow: supported
Aperture: F2.0
Lens: 2.1mm
Weight: 7.2g
FOV: 160°

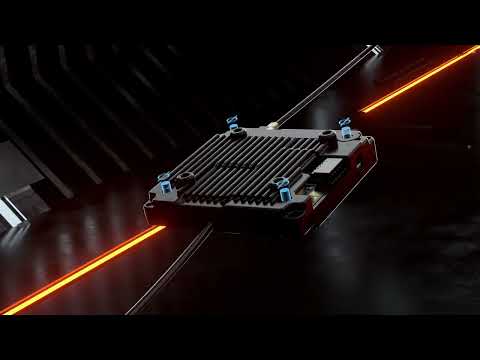

AVATAR V2 VTX
Transmitter Power (EIRP: FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
Supported FC System: Betaflight; Inav; Fettec; ArduPilot;Kiss
1/O Interface: JST1.0*4(Power in)JST0.8*6(USB)
Communication Frequency: 5.725-5.850GHz
Mounting Holes: 25.5*25.5mm; 20*20mm
Operating Temperature: -20-40℃
Dimensions: 33.5*33.5*10.5mm
Latency: Average delay 22ms
Wide Power Input: 6V-25.2V
Model: Avatar V2 module
Recording: 1080p/720p
OSD: Canvas mode
Antenna: 1(IPEX)
Storage: 32GB
Weight: 17.6g
Channels: 8
AVATAR V2 ANTENNA
Frequency range: 5600MHz-6000MHz
Size: R15 X 45mm(without cable)
Input Impedance: 50Ω
Polarization: LHCP
Interface: IPEX-1
Gain: 1.9dBi
VSWR: ≤1.5
Weight: 2g
Komplektis
1 x Walksnail Avatar HD VTX V2 - 32GB w/ Gyro
1 x Walksnail Avatar HD Camera V2
1 x Walksnail Avatar Antenna V2
1 x USB transfer extension cable
4 x M2*5*0.5mm gasket
1 x 4 Pin silicone cable
4 x M2*14mm screws
8 x M2*4mm screws
4 x M2*5mm screws
4 x M2*6mm screws
